Product Details

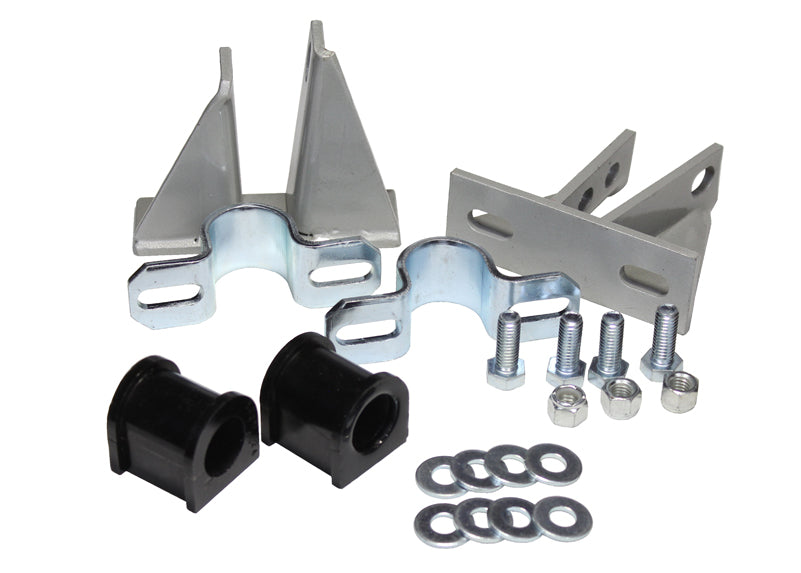

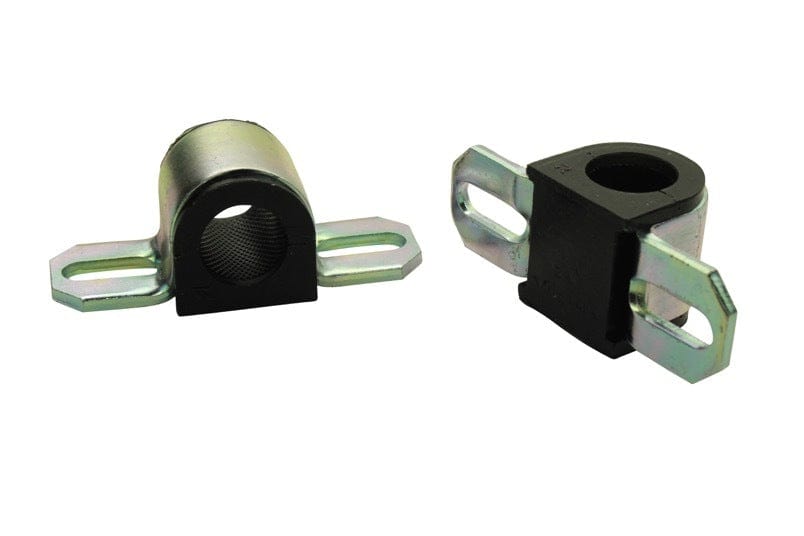

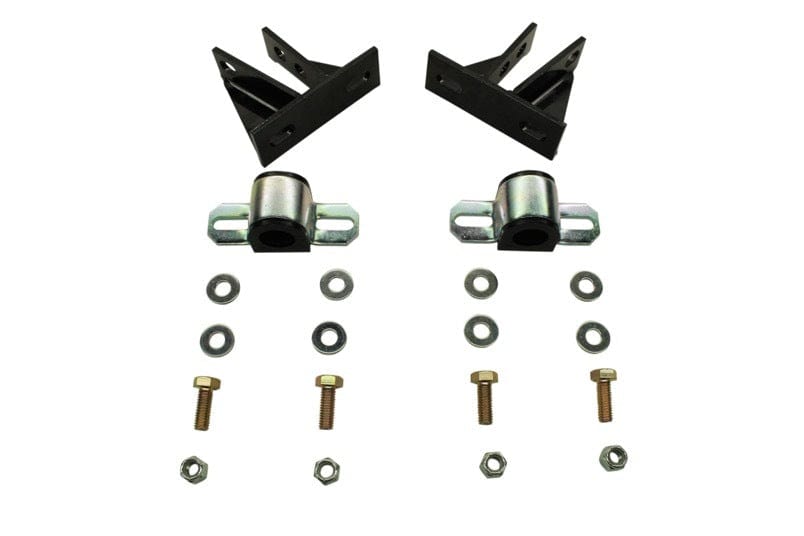

This Whiteline 24mm Rear Sway Bar Mount Kit fits the 2006 Mitsubishi Lancer Evolution SE (CS). In the box: 2 bushings, 2 mounts, 2 saddles, 4 bolts, 8 washers, and 4 nuts. Placement: rear. The part number is KBR22-24. Application note: Heavy duty mount incl bushings.

Sway bar mount bushings work as the bearings of the roll-control system. They need to hold the bar firmly without binding, and they have to cope with constant twisting. A new set restores that balance and quiets the knocks that worn ones make. Polyurethane resists deflection far better than the soft rubber it replaces.

Whiteline rates the install as moderate and lists about 1 hour. A wheel alignment is not required. To go with it on the Lancer Evolution, see Front Control Arm Lower Inner Rear Bushing, Rear Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Hardware: Also in the box: mounting hardware.
  • Bushing material: Polyurethane bushings flex far less than rubber ones.
  • Install guide: Instructions for fitting are packed in the box.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
Specifications
Part Number KBR22-24
Part Name Sway Bar Mount
Vehicle 2006 Mitsubishi Lancer Evolution SE
Drivetrain AWD
Chassis Code CS
Bar Diameter 24 mm
Bushing Color Black
Bushing Material Polyurethane
Bushing Quantity 2
Grade Type Performance
Grease Fitting Included No
Inside Diameter 24 mm
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Bushings, 2 Mounts, 2 Saddles, 4 Bolts, 8 Washers, 4 Nuts
Material Polyurethane
Mounting Hardware Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Heavy duty mount incl bushings

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2006MitsubishiLancer EvolutionAWDHeavy duty mount incl bushings
