Product Details

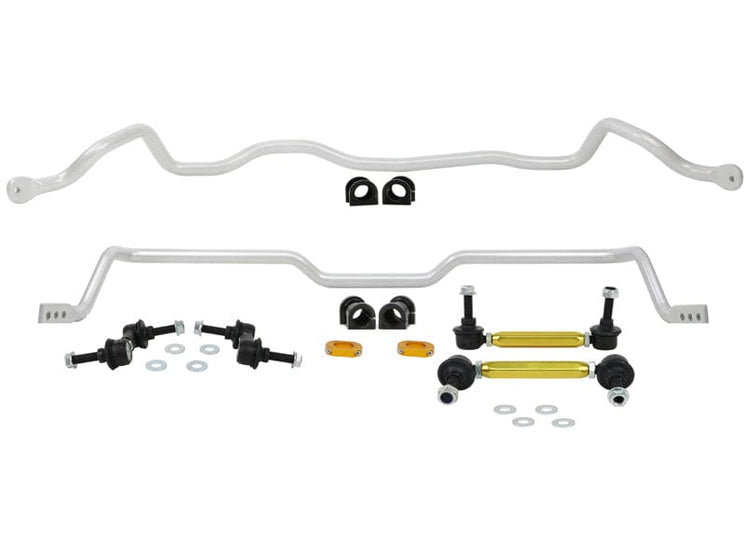

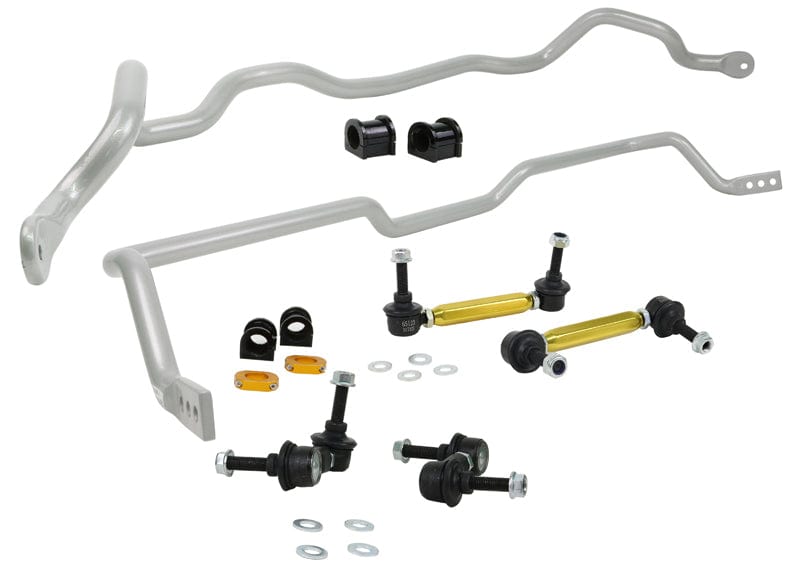

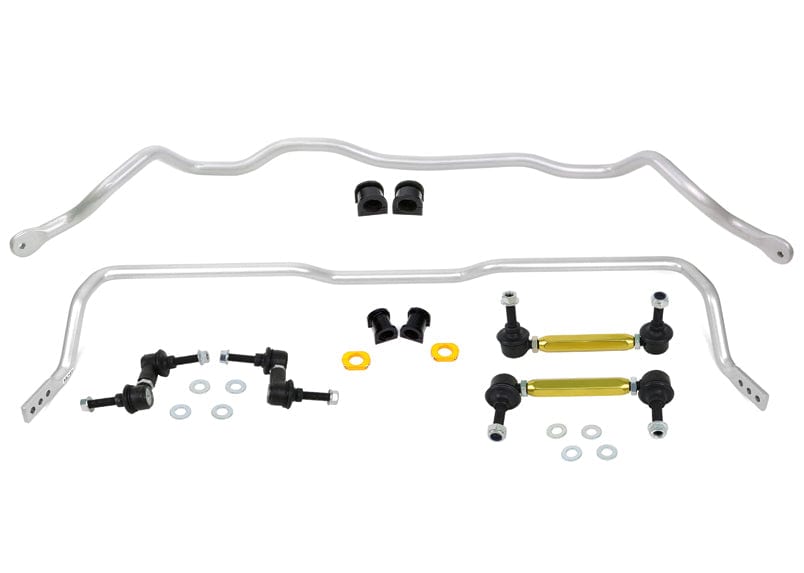

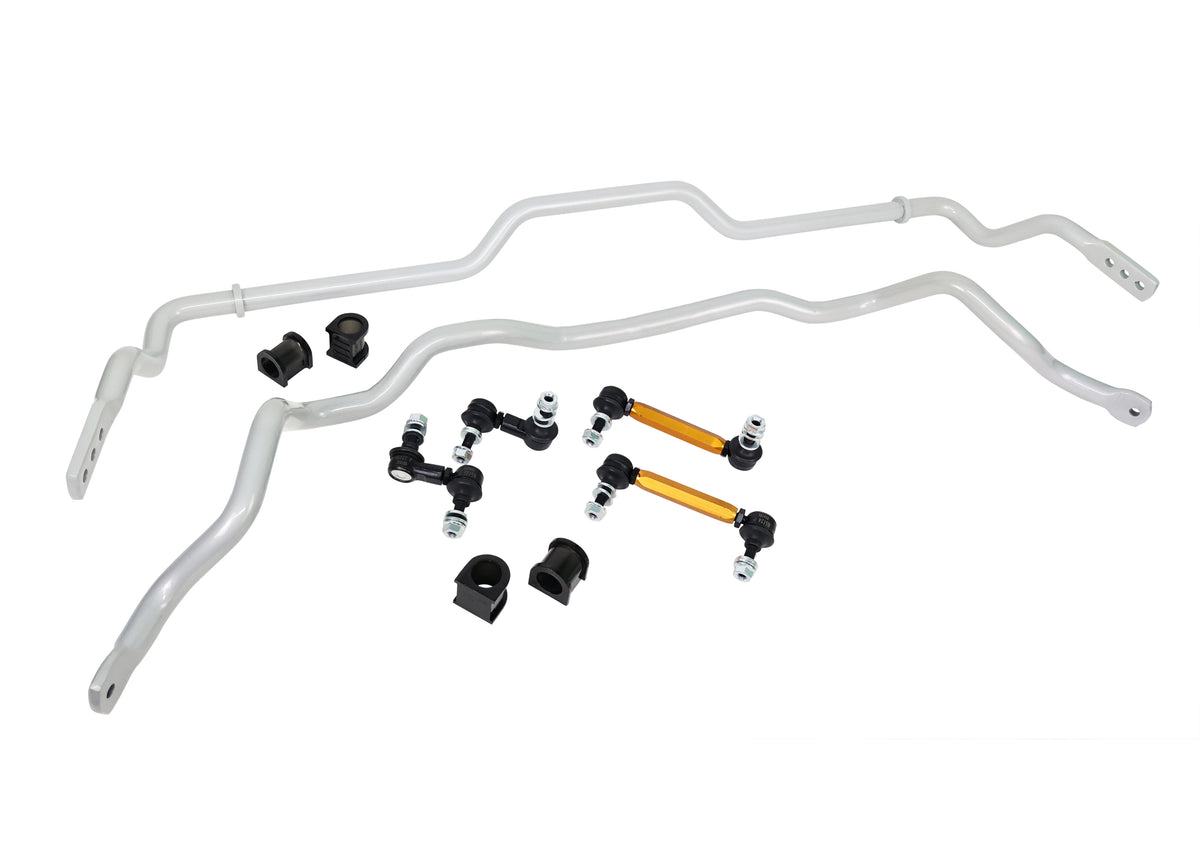

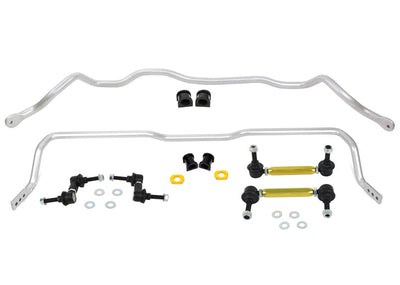

This Whiteline Front and Rear Sway Bar Kit fits the 2003-2008 Mitsubishi Lancer Evolution Base (CS). Position: front and rear. Order it as part number BMK009. Included: 2 sway bars, 4 links, 4 bushings, 2 lateral locks, and 8 washers. Whiteline's note for this fit: Contains BMF48, BMR65XZ, KLC139 and KLC102.

Front and rear sway bars work as a team. The bars resist roll by twisting, and their relative stiffness shapes whether the car feels planted or loose at the limit. This kit supplies both ends so the balance stays under control. The bar is adjustable, so the stiffness can be changed to suit the car and the road.

Expect a moderate job of about 4 hours. A wheel alignment is not required. To go with it on the Lancer Evolution, see Front Control Arm Lower Inner Rear Bushing, Rear Sway Bar Link, and Rear Trailing Arm Lower Front Bushing.

Features

  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
  • Forged ends: Forged bar ends add strength where the bar meets the link.
  • PTFE lined: A PTFE lining lowers friction so the bushing needs no lubrication.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Lateral locks: Lateral locks stop the bar sliding sideways under load.
  • Construction: Made from strong, light alloy.
Specifications
Part Number BMK009
Part Name Sway Bars
Vehicle 2003-2008 Mitsubishi Lancer Evolution Base
Drivetrain AWD
Chassis Code CS
Bushing Material Polyurethane
Sway Bar Adjustable - Front No
Sway Bar Diameter - Front 26 mm
Sway Bar Included - Front Yes
Sway Bar Links Included - Front Yes
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 4
Kit Contents 2 Sway Bars, 4 Links, 4 Bushings, 2 Lateral Locks, 8 Washers
Sway Bar Adjustable - Rear Yes
Sway Bar Diameter - Rear 24 mm
Sway Bar Included - Rear Yes
Sway Bar Links Included - Rear Yes
Wheel Alignment Required No
Notes Sway bar Front 26mm (Non Adjustable) and Rear 24mm (3 point adjustable). Contains BMF48, BMR65XZ, KLC139 and KLC102 - essential to Activate more grip

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2003MitsubishiLancer EvolutionAWDSway bar Front 26mm (Non Adjustable) and Rear 24mm (3 point adjustable). Contains BMF48, BMR65XZ, KLC139 and KLC102 - essential to Activate more grip
2004MitsubishiLancer EvolutionAWDSway bar Front 26mm (Non Adjustable) and Rear 24mm (3 point adjustable). Contains BMF48, BMR65XZ, KLC139 and KLC102 - essential to Activate more grip
2005MitsubishiLancer EvolutionAWDSway bar Front 26mm (Non Adjustable) and Rear 24mm (3 point adjustable). Contains BMF48, BMR65XZ, KLC139 and KLC102 - essential to Activate more grip
2006MitsubishiLancer EvolutionAWDSway bar Front 26mm (Non Adjustable) and Rear 24mm (3 point adjustable). Contains BMF48, BMR65XZ, KLC139 and KLC102 - essential to Activate more grip
2007MitsubishiLancer EvolutionAWDSway bar Front 26mm (Non Adjustable) and Rear 24mm (3 point adjustable). Contains BMF48, BMR65XZ, KLC139 and KLC102 - essential to Activate more grip
2008MitsubishiLancer EvolutionAWDSway bar Front 26mm (Non Adjustable) and Rear 24mm (3 point adjustable). Contains BMF48, BMR65XZ, KLC139 and KLC102 - essential to Activate more grip
