Product Details

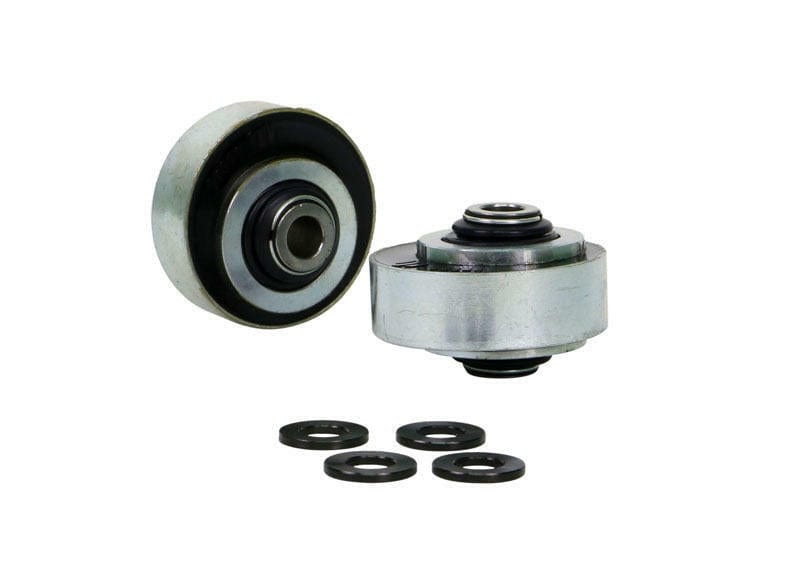

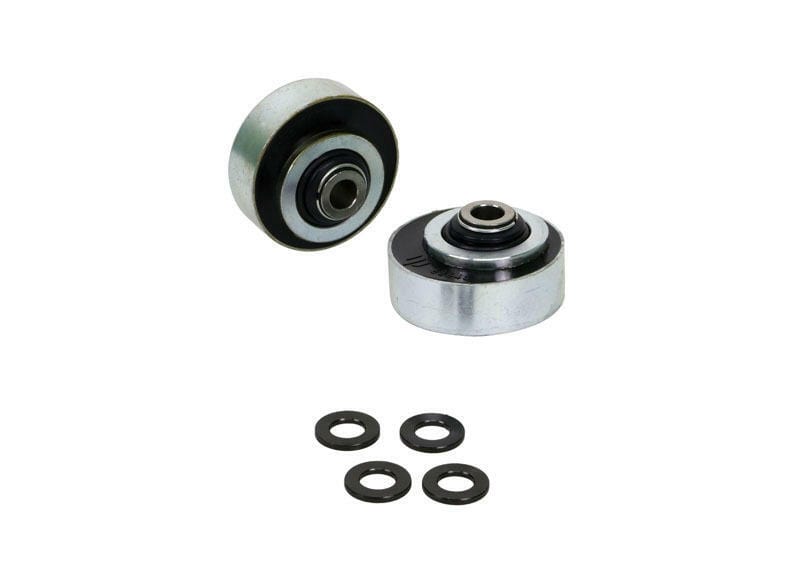

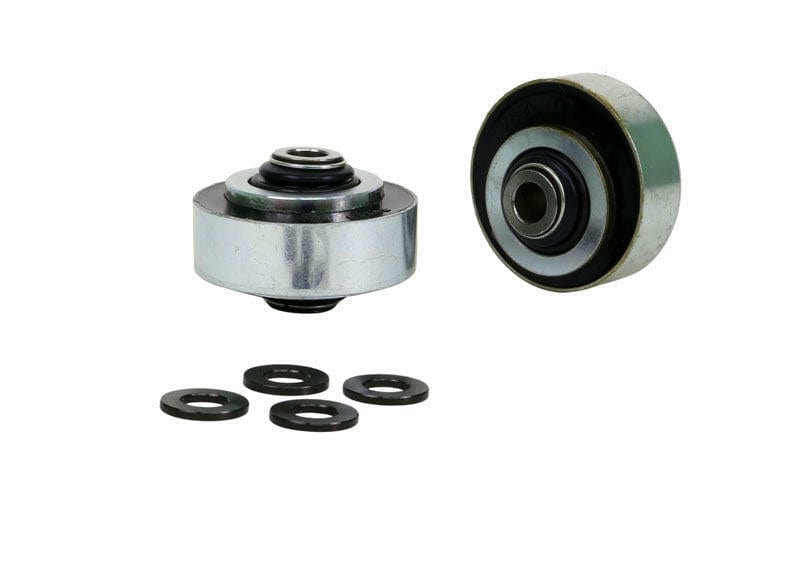

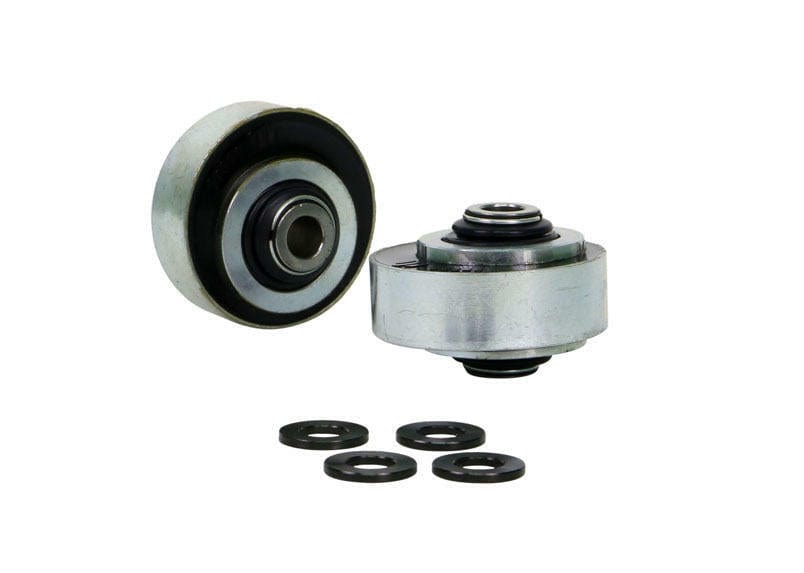

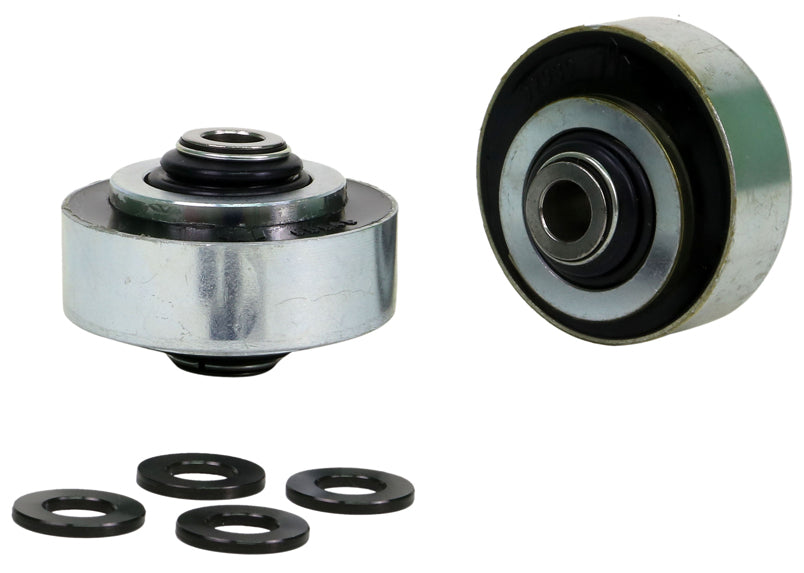

The Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2003-2006 Mitsubishi Lancer Evolution. Application note: Anti-Lift/Caster correction. Inner Rear. The part number is KCA469. The kit contains 2 shell bushings, 2 bearings, and 4 washers. It goes on the front of the vehicle. The chassis code on the listing is CS.
A standard bushing only restores what the factory built. This one is designed to change the geometry, adding positive caster and changing front anti-dive behavior, in addition to resisting the deflection that soft rubber allows.
Installation is rated difficult, with about 2.5 hours of work listed. Plan on a wheel alignment afterward. Other Whiteline parts we list for the Lancer Evolution: Front and Rear Sway Bar Kit, Rear Sway Bar Link, and Rear Trailing Arm Lower Front Bushing.
Features
- Bushing material: Polyurethane bushings flex far less than rubber ones.
- Corrosion protection: Rust protection comes from plating on the metal parts.
- Bonded design: The bushing is bonded for strength where loads are highest.
- Material: Built from polyurethane.
- Alignment adjustment: Adds adjustment so the alignment can be optimized.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
| Part Number | KCA469 |
| Part Name | Control Arm Bushing |
| Vehicle | 2003-2006 Mitsubishi Lancer Evolution Base |
| Chassis Code | CS |
| Bushing 1 Inner Diameter | 14.2 mm |
| Bushing 1 Length | 90 mm |
| Bushing 1 Outer Diameter | 76.2 mm |
| Bushing 2 Inner Diameter | 14.2 mm |
| Bushing 2 Length | 90 mm |
| Bushing 2 Outer Diameter | 76.2 mm |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushing Quantity | 2 |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 2 Shell Bushings, 2 Bearings, 4 Washers |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Outside Diameter | 76.2 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Anti-Lift/Caster correction; Inner Rear |
