Product Details

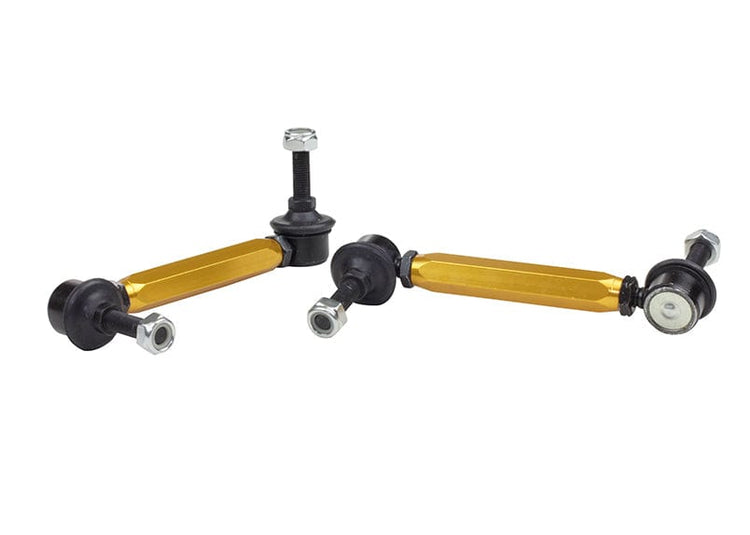

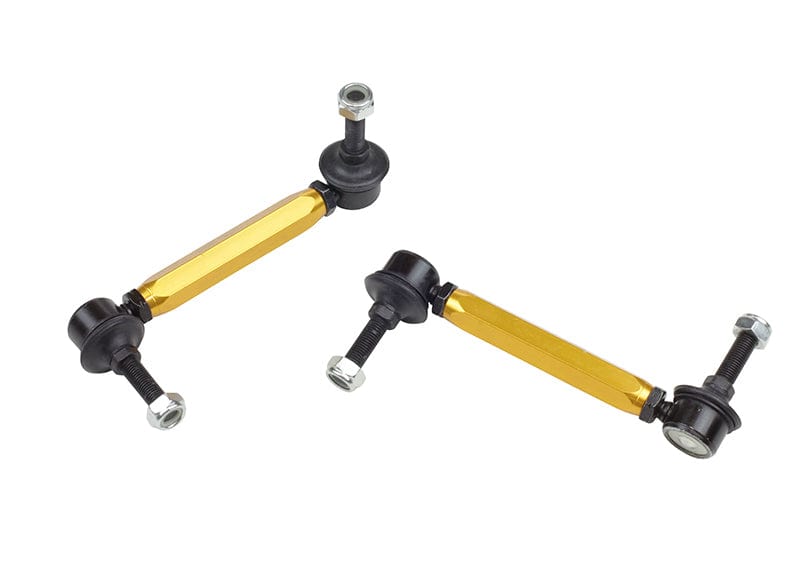

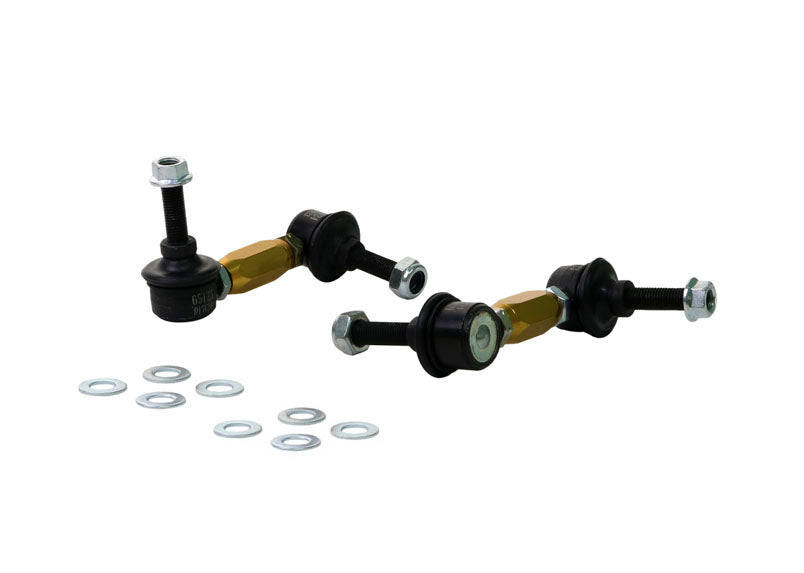

This Whiteline Rear Sway Bar Link fits the 2003-2008 Mitsubishi Lancer Evolution Base (CS). Order it as part number KLC102. Application note: Adjustable Extra Heavy Duty. In the box: 2 links. Position: rear. Chassis code: CS.
A sway bar link is the short rod that ties each end of the rear sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.
Expect a moderate job of about 1 hour. No alignment is needed afterward. Other Whiteline parts we list for the Lancer Evolution: Front and Rear Sway Bar Kit, Front Control Arm Lower Inner Rear Bushing, and Rear Trailing Arm Lower Front Bushing.
Features
- Install guide: Step-by-step installation instructions come with it.
- Hardware: Supplied with locking nuts.
- Pre-greased: Comes pre-greased, so it can go straight on the car.
- Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
- Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
- Anodized alloy: The alloy is anodized, adding a durable protective layer.
Specifications
| Part Number | KLC102 |
| Part Name | Sway Bar Link |
| Vehicle | 2003-2008 Mitsubishi Lancer Evolution Base |
| Drivetrain | AWD |
| Chassis Code | CS |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 150-175 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | Adjustable Extra Heavy Duty. Length 150-175mm. Bolt Diameter 10mm. |
