Product Details

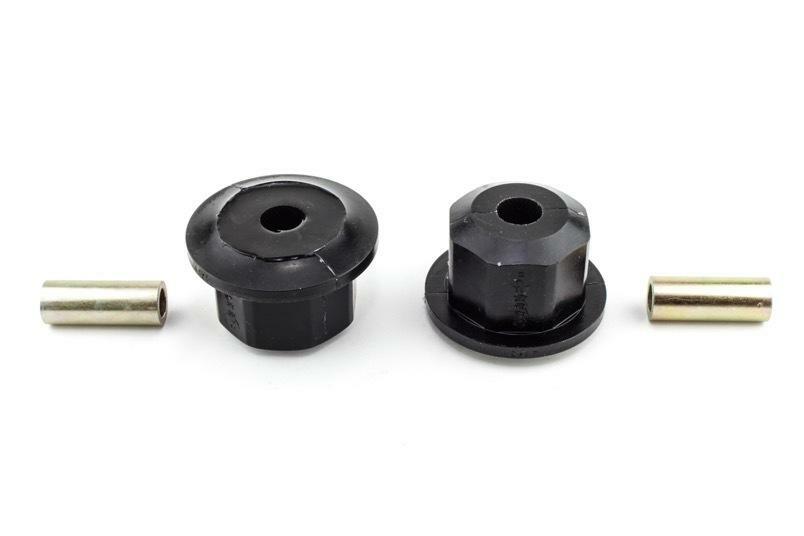

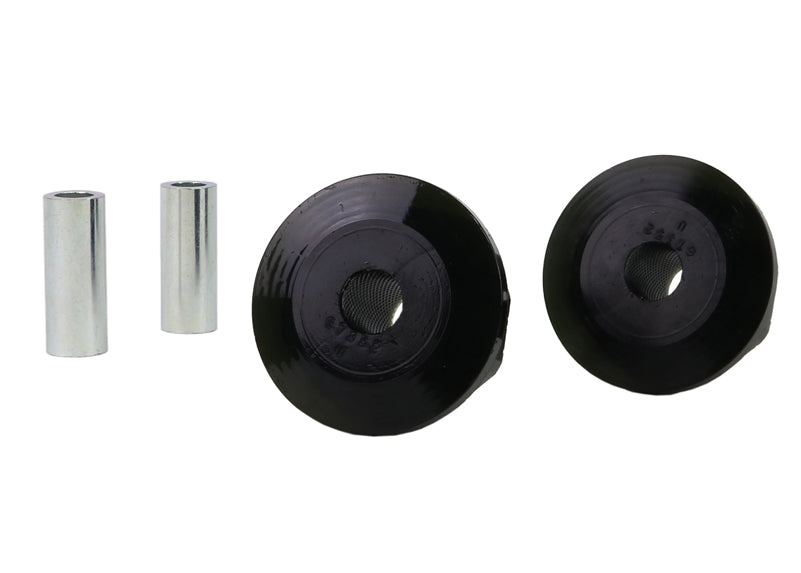

This Whiteline Rear Differential Mount Center Support Bushing fits the 2004-2007 Mazda RX-8 Base (SE3P). In the box: 2 bushings, 2 tubes, and grease. Placement: rear. The part number is W93394.

Differential bushings take the torque reaction every time the car accelerates. When the rubber is worn or soft, the case shifts and the driveline jerks, and wheel hop becomes more likely. Stiffer bushings or inserts limit that movement. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated difficult, with about 4 hours of work listed. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the RX-8: Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front Control Arm Lower Inner Front Bushing.

Features

  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Bushing material: Made of polyurethane, which resists deflection better than soft rubber.
  • Finish: The metal parts are powder coated for durability.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
Specifications
Part Number W93394
Part Name Differential Mount Bushing
Vehicle 2004-2007 Mazda RX-8 Base
Chassis Code SE3P
Bushing Color Black
Bushing Material Polyurethane
Color Black
Durometer 72
Installation Difficulty Difficult
Installation Time (hrs) 4
Kit Contents 2 Bushings, 2 Tubes, Grease
Material Polyurethane
Mounting Hardware Included No
Universal or Specific Fit Specific Fit
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004MazdaRX-8RWD
2005MazdaRX-8RWD
2006MazdaRX-8RWD
2007MazdaRX-8RWD
