Product Details

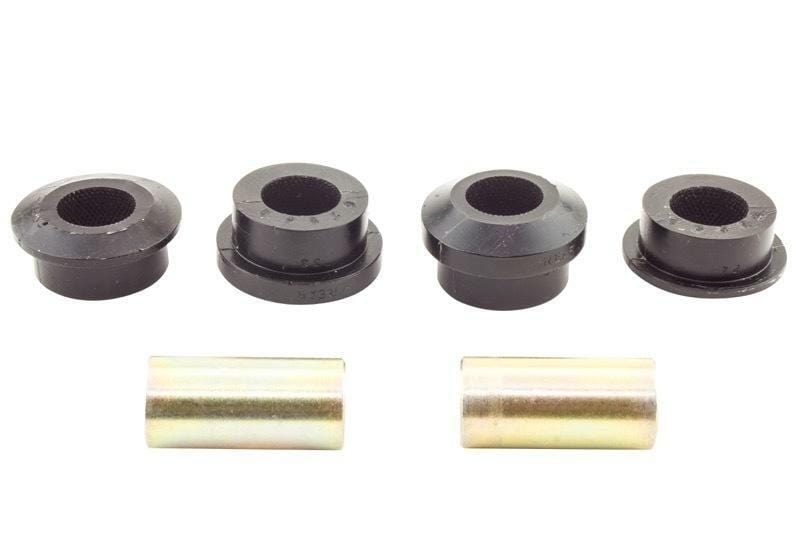

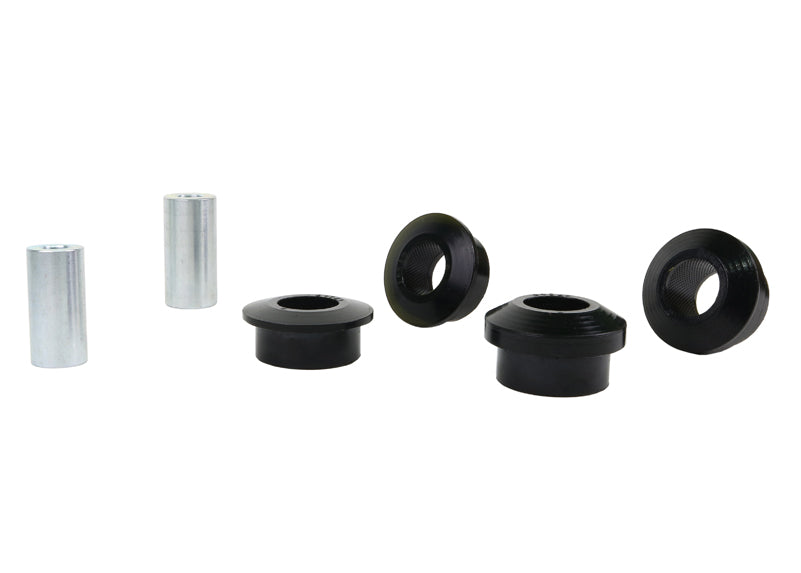

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2004-2007 Mazda RX-8 Base (SE3P). Whiteline part number: W53413. In the box: 4 bushings and 2 tubes. This part is for the front of the vehicle.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated difficult, with about 2.5 hours of work listed. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the RX-8: Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Material: Made from polyurethane.
Specifications
Part Number W53413
Part Name Control Arm Bushing
Vehicle 2004-2007 Mazda RX-8 Base
Chassis Code SE3P
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 47.7 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004MazdaRX-8RWD
2005MazdaRX-8RWD
2006MazdaRX-8RWD
2007MazdaRX-8RWD
