Product Details

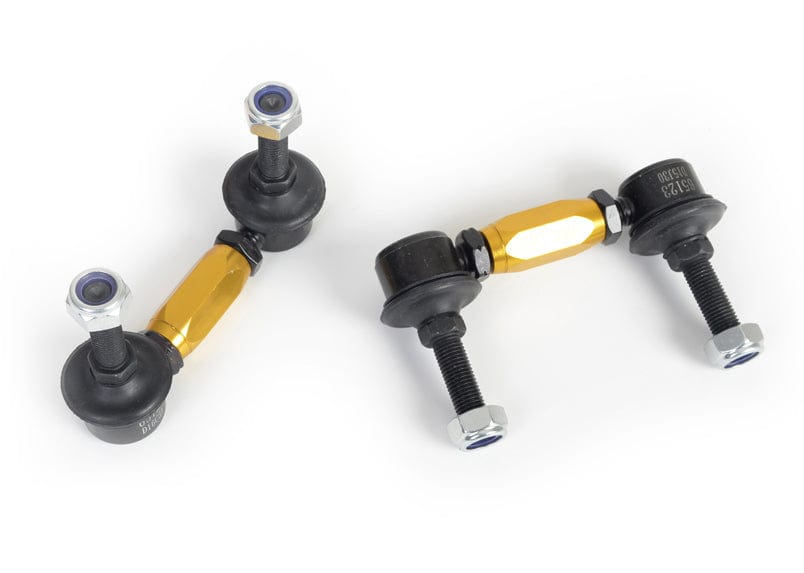

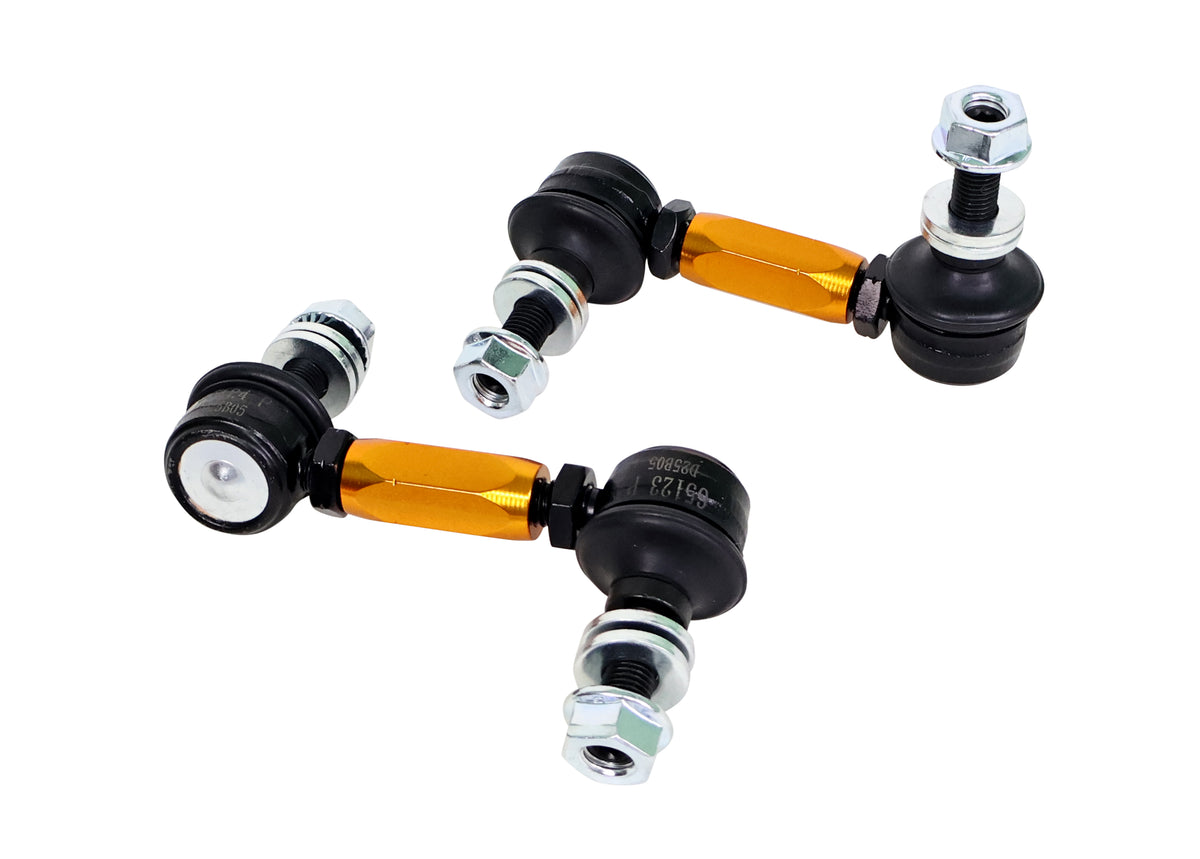

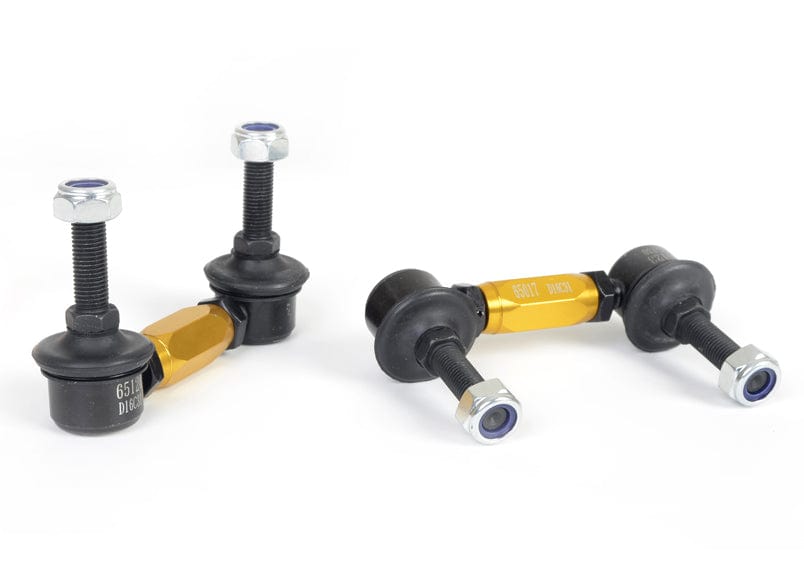

This Whiteline Adjustable Rear Sway Bar Link fits the 2004-2007 Mazda RX-8 Base (SE3P). Position: rear. In the box: 2 links. The part number is KLC144. Whiteline's note for this fit: Adjustable Extra Heavy Duty.

The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Expect a moderate job of about 1 hour. It does not require a wheel alignment. To go with it on the RX-8, see Adjustable Front Sway Bar Link, Front and Rear Sway Bar Kit, and Front Control Arm Lower Inner Front Bushing.

Features

  • Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
  • Construction: Made from strong, light alloy.
  • Hardware: Also in the box: locking nuts and washers.
  • Install guide: An install guide comes in the box.
  • Ball joints: Steel ball joint ends are built for heavy loads and free movement.
  • Anodized alloy: Anodized alloy parts resist corrosion and wear and look good doing it.
Specifications
Part Number KLC144
Part Name Sway Bar Link
Vehicle 2004-2007 Mazda RX-8 Base
Chassis Code SE3P
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 90-115 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004MazdaRX-8RWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2005MazdaRX-8RWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2006MazdaRX-8RWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2007MazdaRX-8RWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
