Product Details

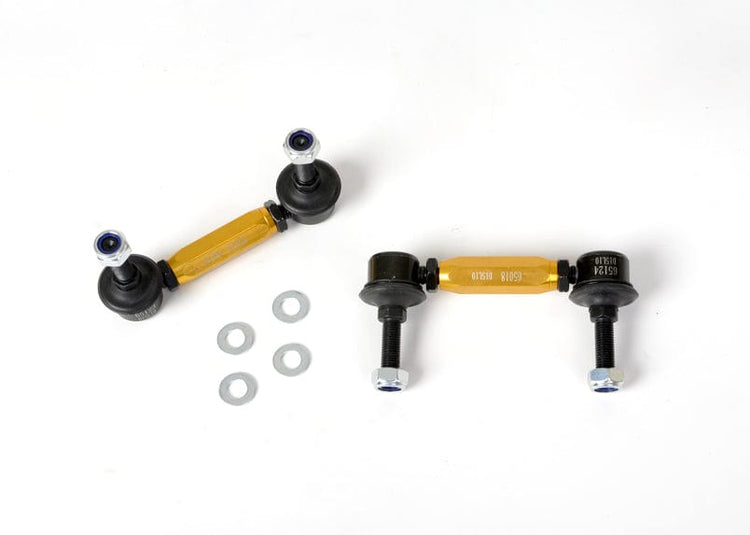

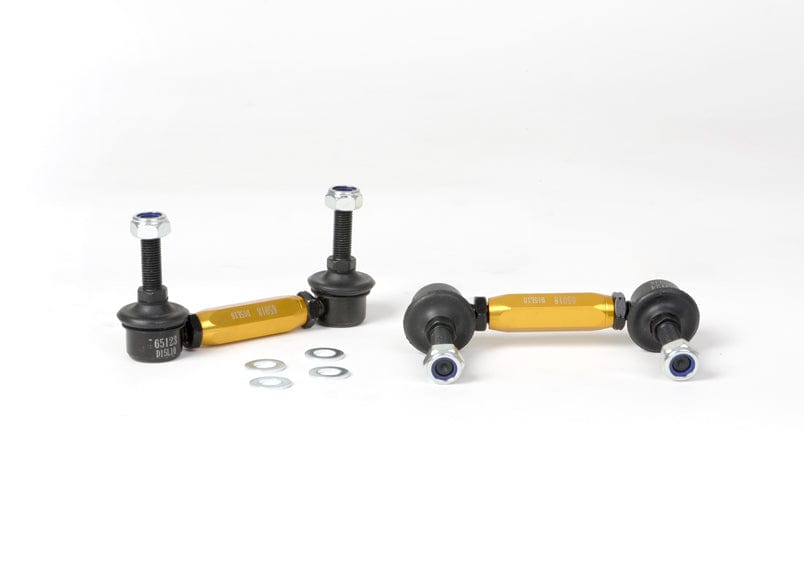

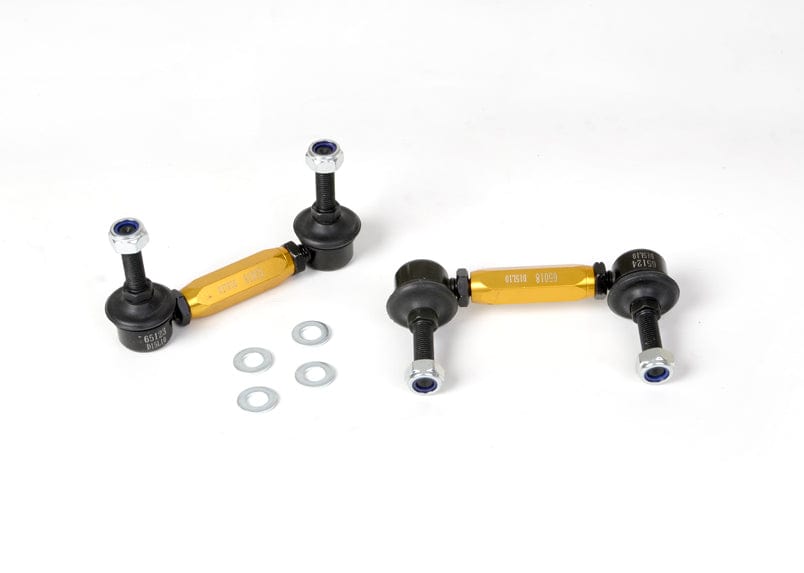

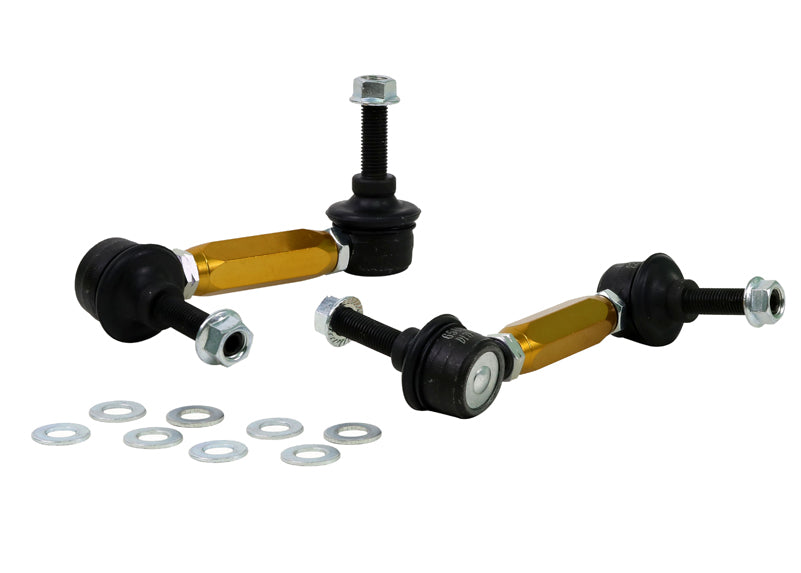

This Whiteline Adjustable Front Sway Bar Link fits the 2004-2007 Mazda RX-8 Base (SE3P). Order it as part number KLC141. Position: front. The kit contains 2 links. Application note: Suits models with control arm link mount: adjustable extra heavy duty.

The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.

Installation is rated easy, with about 1 hour of work listed. It does not require a wheel alignment. To go with it on the RX-8, see Adjustable Rear Sway Bar Link, Front and Rear Sway Bar Kit, and Front Control Arm Lower Inner Front Bushing.

Features

  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
  • Preload-free setup: The length can be set on the car to remove preload from the sway bar.
  • Install guide: Instructions for fitting are packed in the box.
  • Ball joints: Steel ball joint ends are built for heavy loads and free movement.
  • Hardware: Supplied with locking nuts and washers.
  • Pre-greased: Comes pre-greased, so it can go straight on the car.
Specifications
Part Number KLC141
Part Name Sway Bar Link
Vehicle 2004-2007 Mazda RX-8 Base
Chassis Code SE3P
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 2 Links
Length 115-140 mm
Locking Nuts Included Yes
Material Steel
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Suits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004MazdaRX-8RWDSuits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm
2005MazdaRX-8RWDSuits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm
2006MazdaRX-8RWDSuits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm
2007MazdaRX-8RWDSuits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm
