Product Details

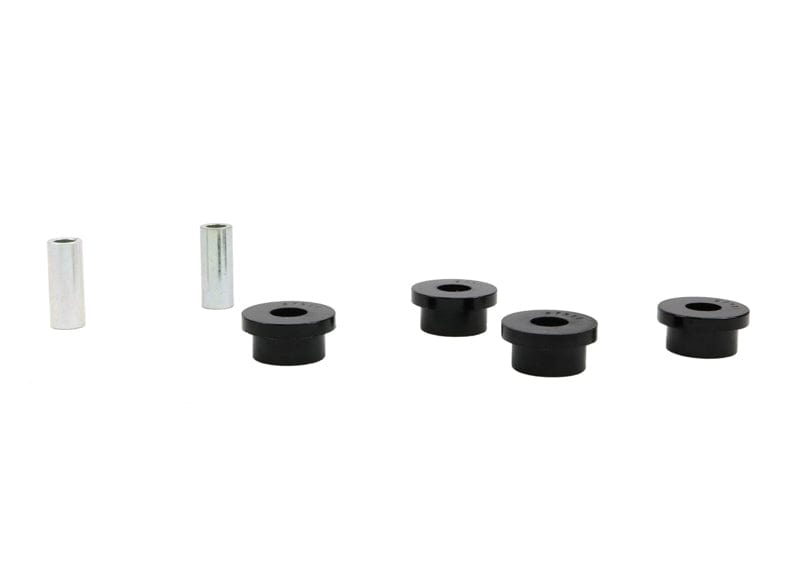

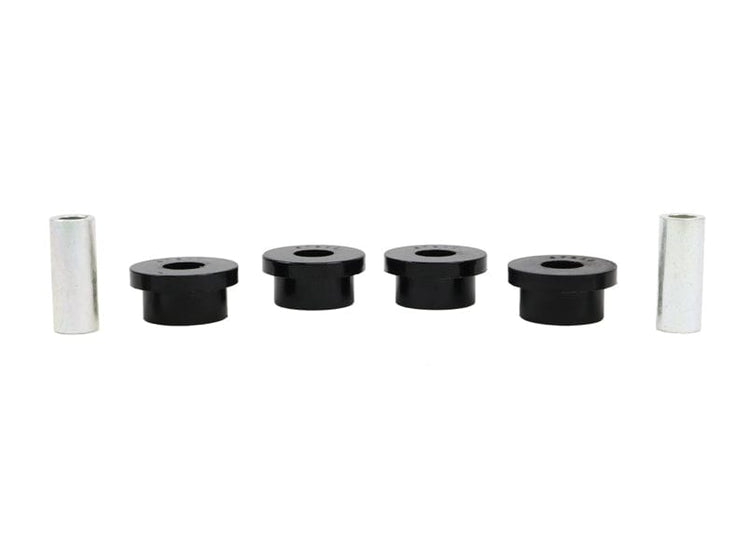

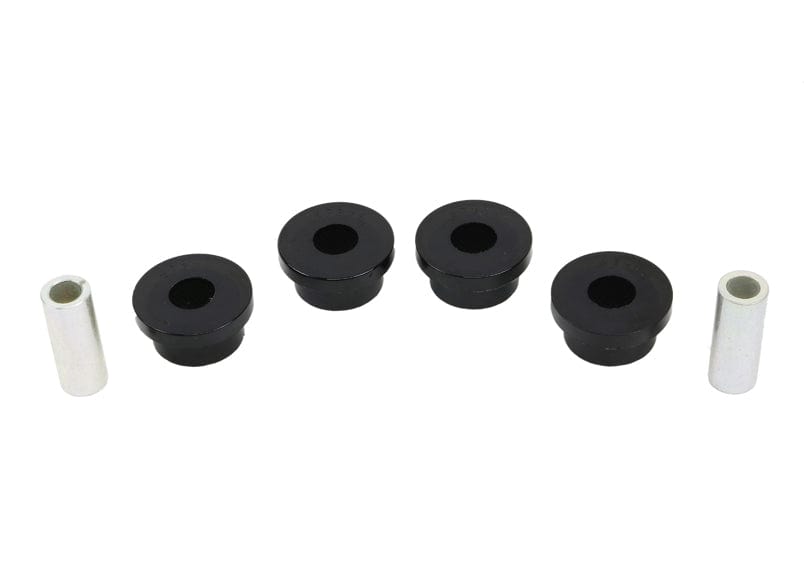

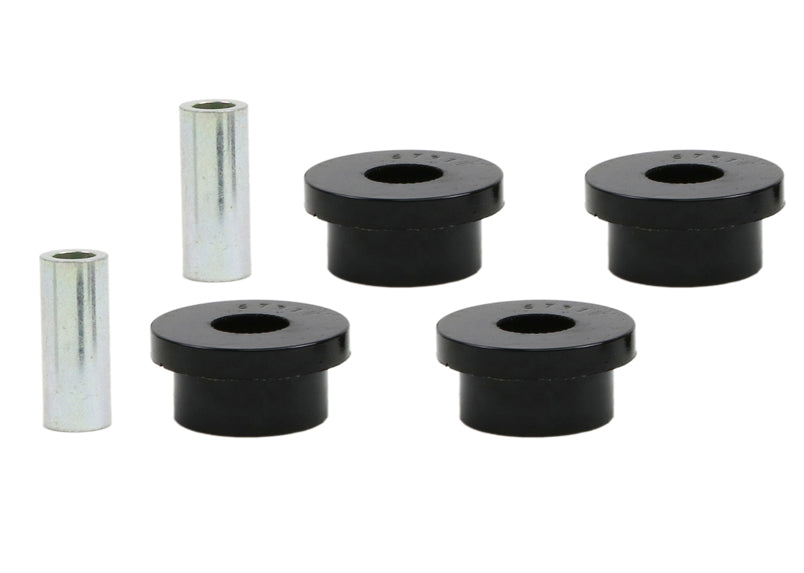

This Whiteline Rear Control Arm Upper Rear Inner Bushing fits the 2003-2004 Mitsubishi Lancer Evolution Base (CS). The part number is W0591. Chassis code: CS. It goes on the rear of the vehicle. You receive 4 bushings and 2 tubes. Whiteline's note for this fit: Fitter friendly design.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.

Whiteline rates the install as moderate and lists about 2 hours. An alignment is required after installation. We also list Front Control Arm Lower Inner Rear Bushing, Rear Sway Bar Link, and Front and Rear Sway Bar Kit for the Lancer Evolution.

Features

  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Material: Made from polyurethane.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
Specifications
Part Number W0591
Part Name Control Arm Bushing
Vehicle 2003-2004 Mitsubishi Lancer Evolution Base
Drivetrain AWD
Chassis Code CS
Bushing 1 Inner Diameter 10.2 mm
Bushing 1 Outer Diameter 31 mm
Bushing Quantity 4 Bushings
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Fitter friendly design

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2003MitsubishiLancer EvolutionAWDFitter friendly design
2004MitsubishiLancer EvolutionAWDFitter friendly design
