Product Details

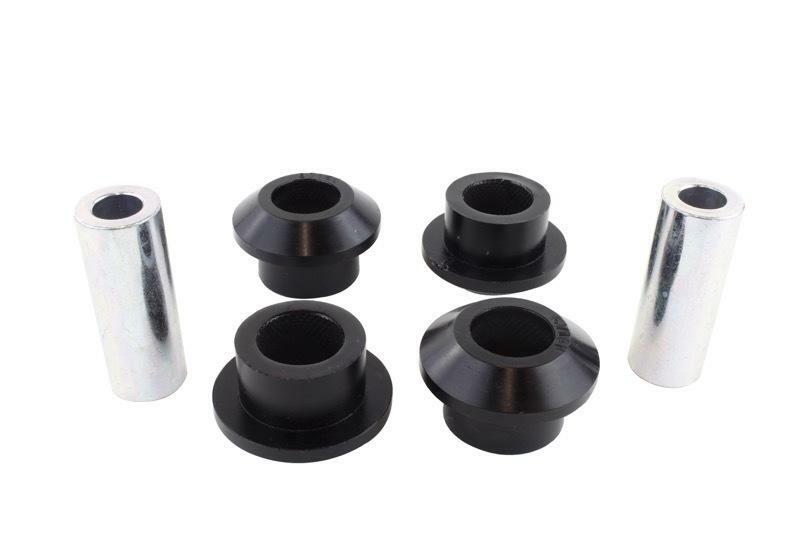

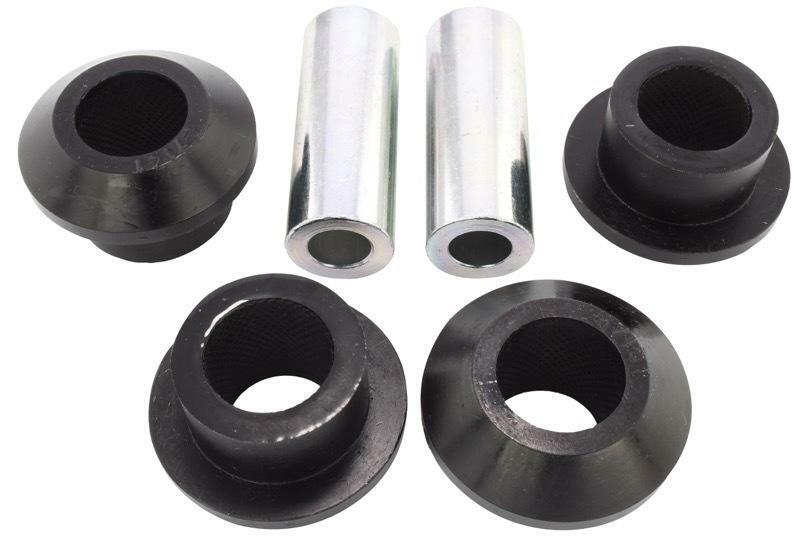

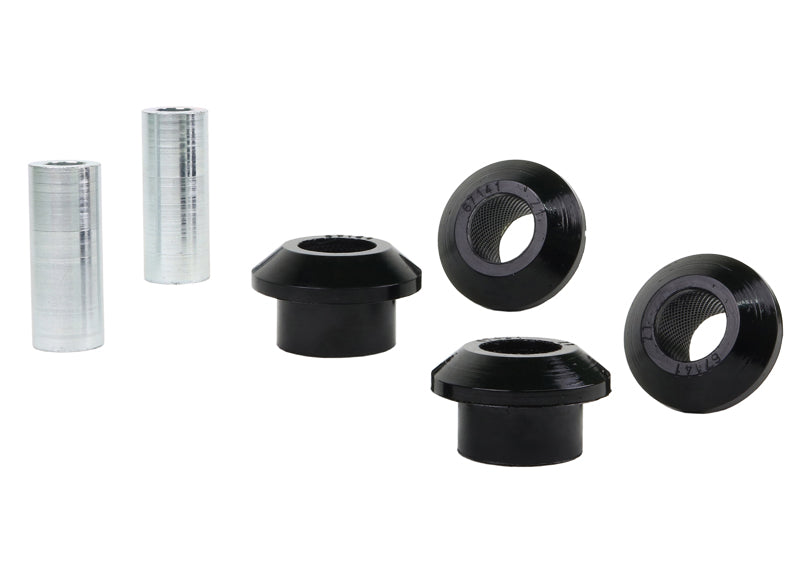

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2013 Ford Escape SEL (C1XX). This part is for the front of the vehicle. You receive 4 bushings and 2 tubes. The part number is W53286.
A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated difficult, with about 2.5 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the Escape, see Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Rear Bushing, and Adjustable Front Sway Bar Link.
Features
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Finish: The metal is powder coated, which resists corrosion and wear.
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
- Material: Built from polyurethane.
Specifications
| Part Number | W53286 |
| Part Name | Control Arm Bushing |
| Vehicle | 2013 Ford Escape SEL |
| Drivetrain | FWD/AWD |
| Chassis Code | C1XX |
| Bushing 1 Inner Diameter | 14.3 mm |
| Bushing 1 Outer Diameter | 38 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | - |
