Product Details

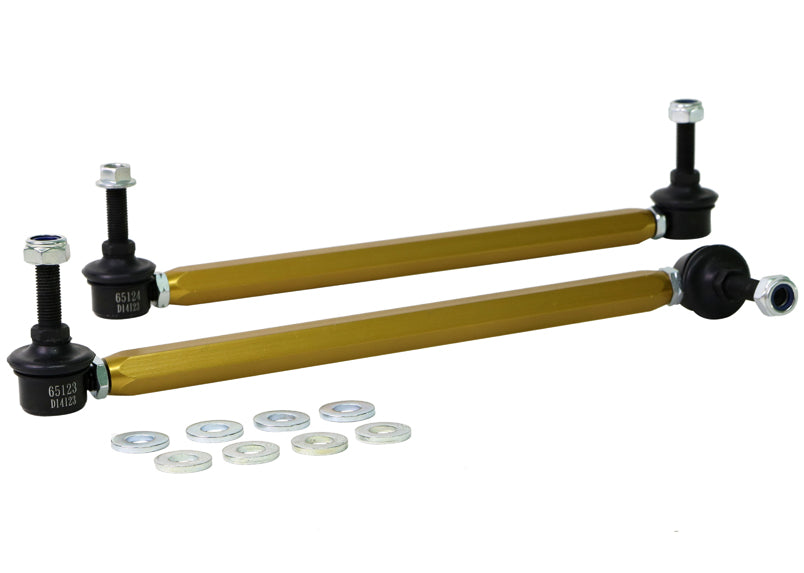

This Whiteline Adjustable Front Sway Bar Link fits the 2013-2019 Ford Escape (C1XX). The part number is KLC151. Application note: Adjustable extra heavy duty. Position: front. The kit contains 2 links and 8 washers.
A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.
Whiteline rates the install as moderate and lists about 1 hour. No alignment is needed afterward. Other Whiteline parts we list for the Escape: Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Front Control Arm Lower Inner Front Bushing.
Features
- Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
- Hardware: The kit includes locking nuts and washers.
- Anodized alloy: The alloy carries an anodized finish for durability.
- Pre-greased: Pre-greased at the factory so it can be fitted right away.
- Preload-free setup: The length can be set on the car to remove preload from the sway bar.
- Install guide: Whiteline packs an install guide with it.
Specifications
| Part Number | KLC151 |
| Part Name | Sway Bar Link |
| Vehicle | 2013-2019 Ford Escape |
| Chassis Code | C1XX |
| Drivetrain | AWD/FWD |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links, 8 Washers |
| Length | 310-335 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable extra heavy duty. Length 310-335mm. Bolt Diameter 10mm. |
