Product Details

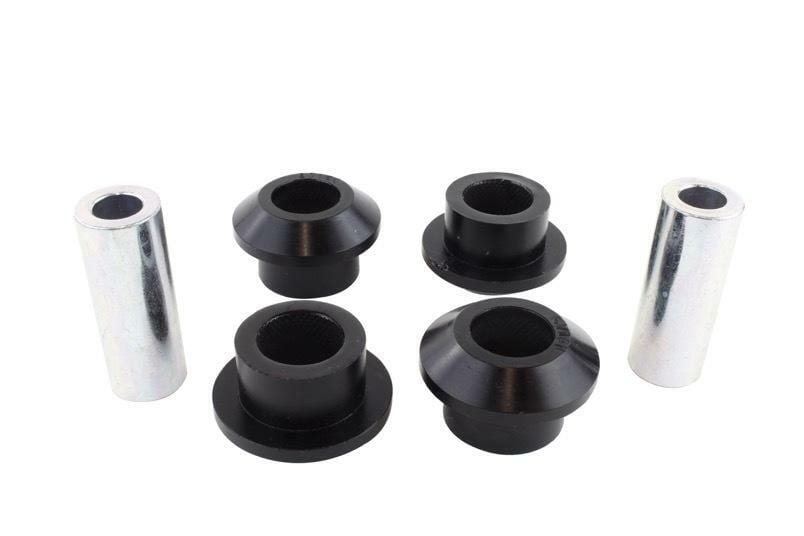

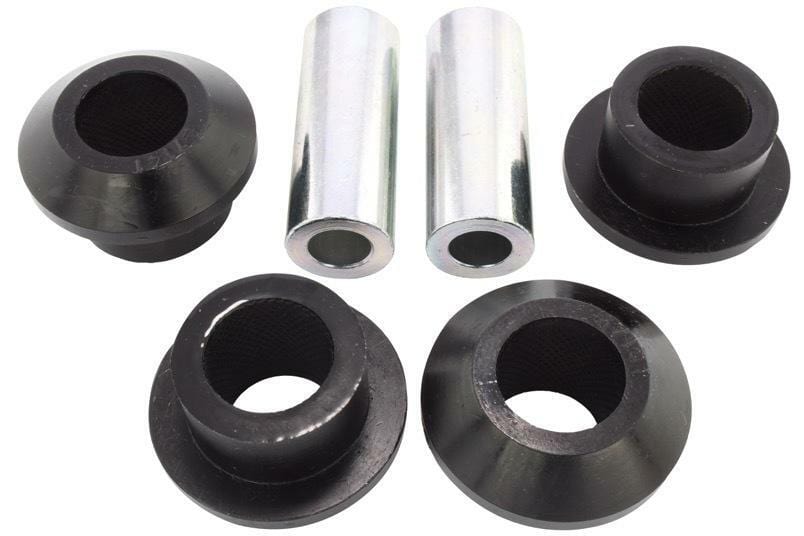

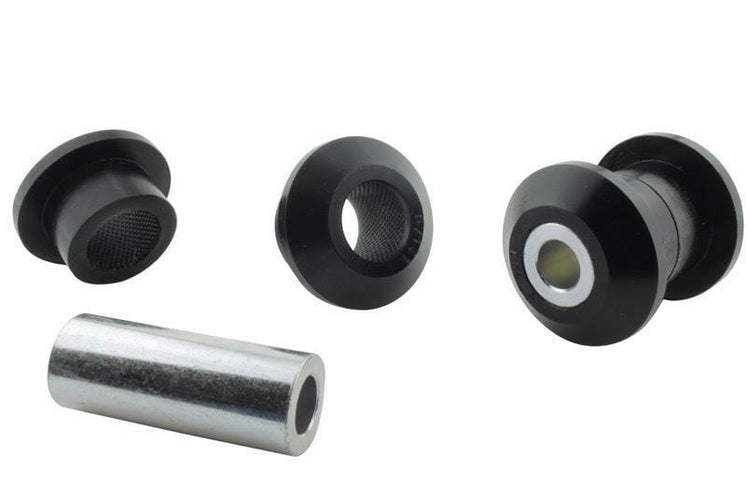

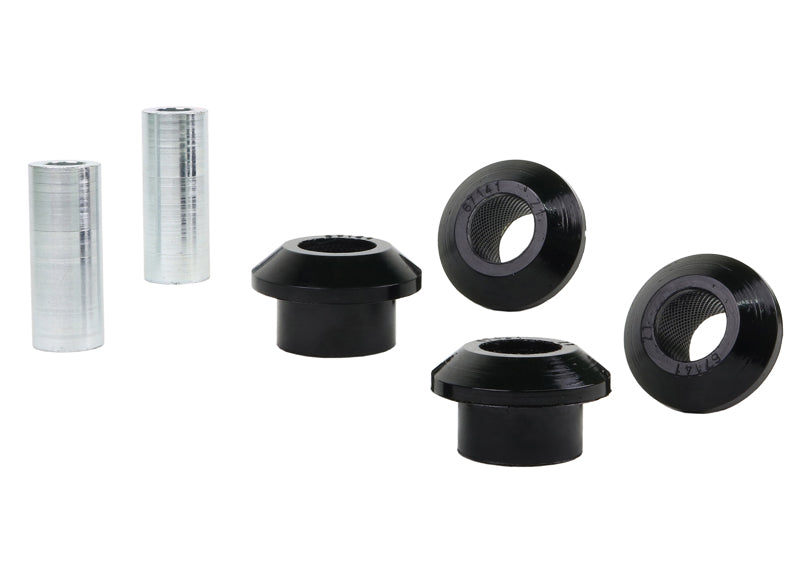

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2013-2019 Ford Escape S (C1XX). You receive 4 bushings and 2 tubes. Order it as part number W53286. This part is for the front of the vehicle.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.

Whiteline rates the install as difficult and lists about 2.5 hours. An alignment is required after installation. To go with it on the Escape, see Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.

Features

  • Material: Made from polyurethane.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
Specifications
Part Number W53286
Part Name Control Arm Bushing
Vehicle 2013-2019 Ford Escape S
Drivetrain FWD/AWD
Chassis Code C1XX
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 38 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2013FordEscapeFWD
2013FordEscapeAWD
2014FordEscapeFWD
2014FordEscapeAWD
2015FordEscapeFWD
2015FordEscapeAWD
2016FordEscapeFWD
2016FordEscapeAWD
2017FordEscapeFWD
2017FordEscapeAWD
2018FordEscapeFWD
2018FordEscapeAWD
2019FordEscapeFWD
2019FordEscapeAWD
