Product Details

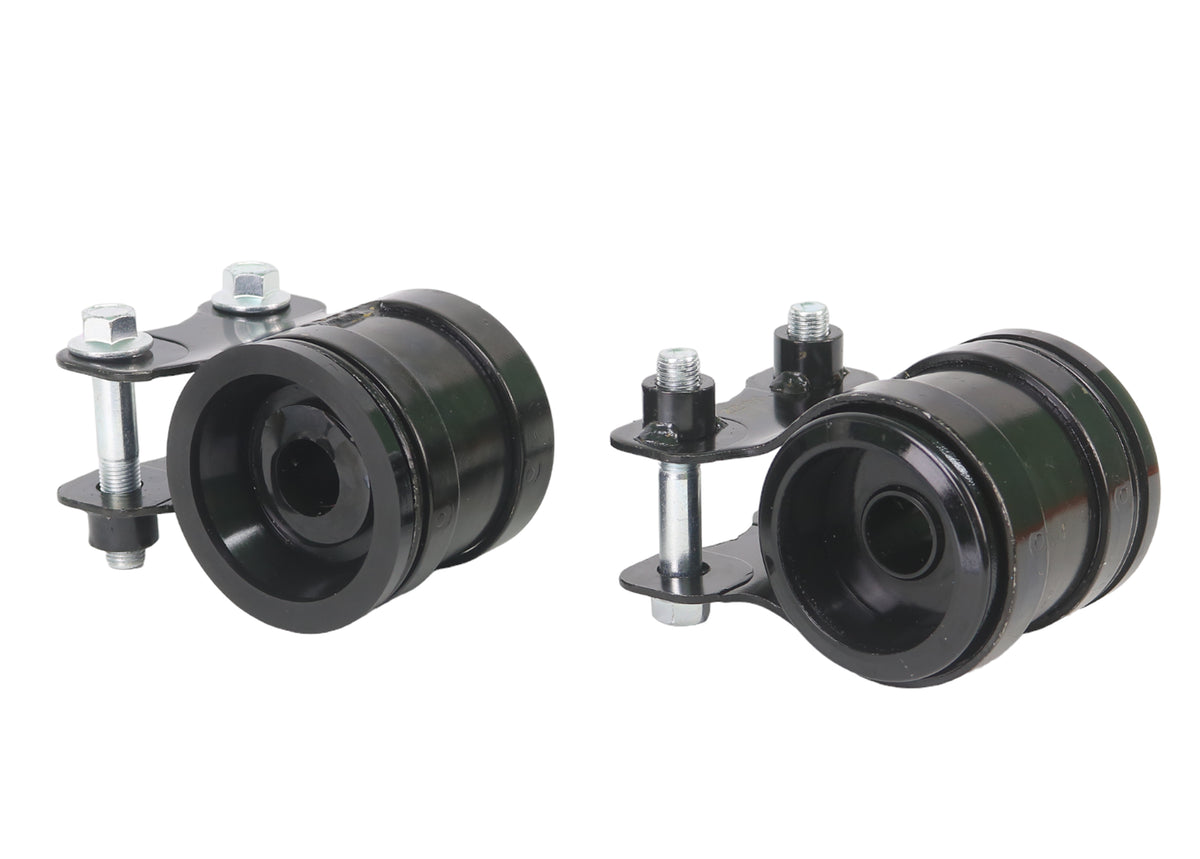

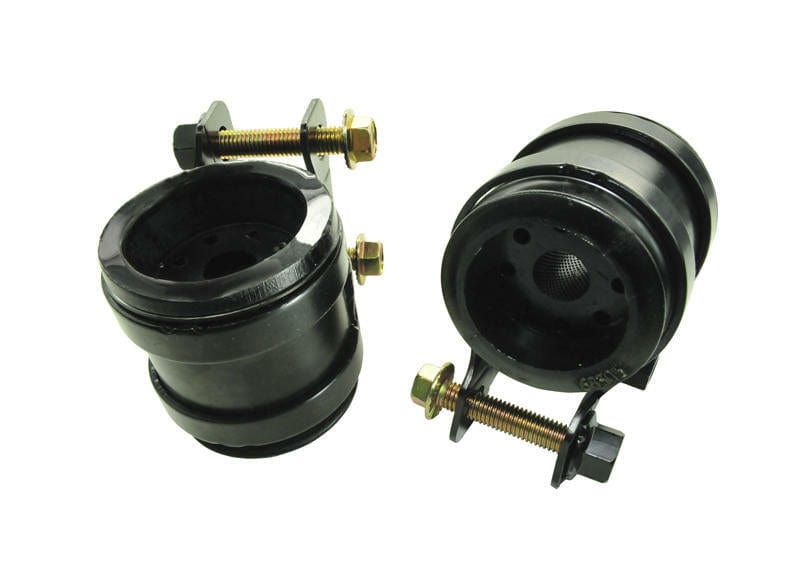

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2013-2016 Ford Escape S, SE, Titanium (C1XX). The part number is W53528. Application note: Standard Replacement: includes new housing. Position: front. In the box: 2 housings and 4 bolts.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.

Whiteline rates the install as easy and lists about 2 hours. Plan on a wheel alignment afterward. Other Whiteline parts we list for the Escape: Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.

Features

  • Finish: The parts carry an E-coat layer that resists corrosion and wear.
  • Compliance voids: Molded voids give the bushing room to flex where it needs to.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Hardware: Also in the box: mounting hardware.
  • Easy to fit: Made with the installer in mind, so it goes in without special equipment.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
Specifications
Part Number W53528
Part Name Control Arm Bushing
Vehicle 2013-2016 Ford Escape S, SE, Titanium
Drivetrain FWD/AWD
Chassis Code C1XX
Bushing 1 Inner Diameter 26 mm
Bushing 1 Length 80.5 mm
Bushing 1 Outer Diameter 68 mm
Bushing 2 Inner Diameter 26 mm
Bushing 2 Length 80.5 mm
Bushing 2 Outer Diameter 68 mm
Bushing Quantity 2
Grade Type Regular
Installation Difficulty Easy
Installation Time (hrs) 2
Kit Contents 2 Housings, 4 Bolts
Material Polyurethane
Mounting Hardware Included Yes
Outside Diameter 68 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Standard Replacement - includes new housing

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2013FordEscapeFWDStandard Replacement - includes new housing
2013FordEscapeAWDStandard Replacement - includes new housing
2014FordEscapeFWDStandard Replacement - includes new housing
2014FordEscapeAWDStandard Replacement - includes new housing
2015FordEscapeFWDStandard Replacement - includes new housing
2015FordEscapeAWDStandard Replacement - includes new housing
2016FordEscapeFWDStandard Replacement - includes new housing
2016FordEscapeAWDStandard Replacement - includes new housing
