Product Details

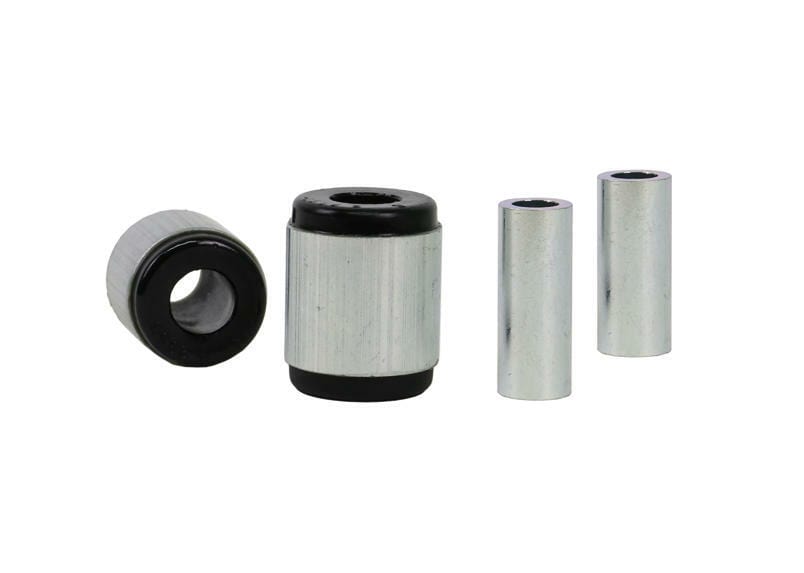

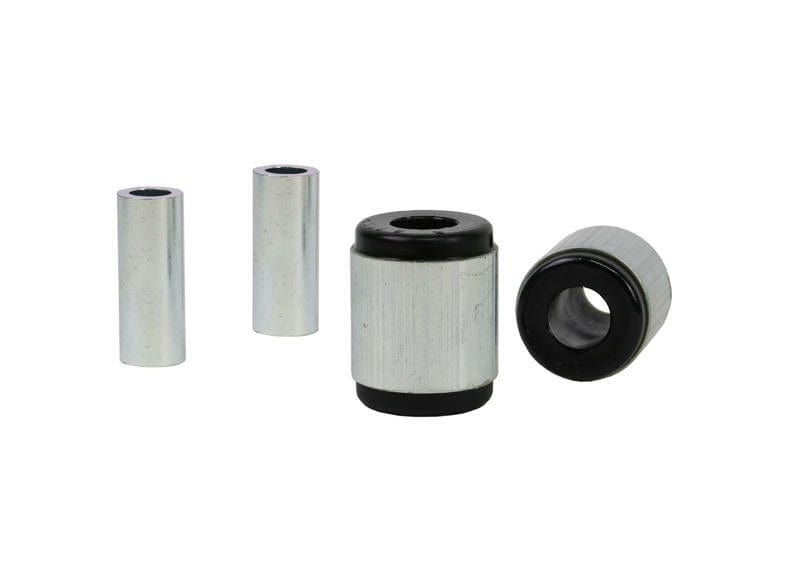

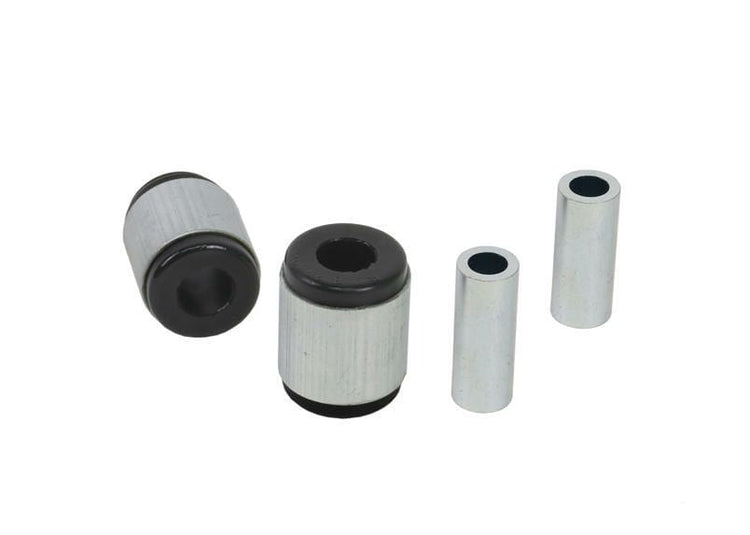

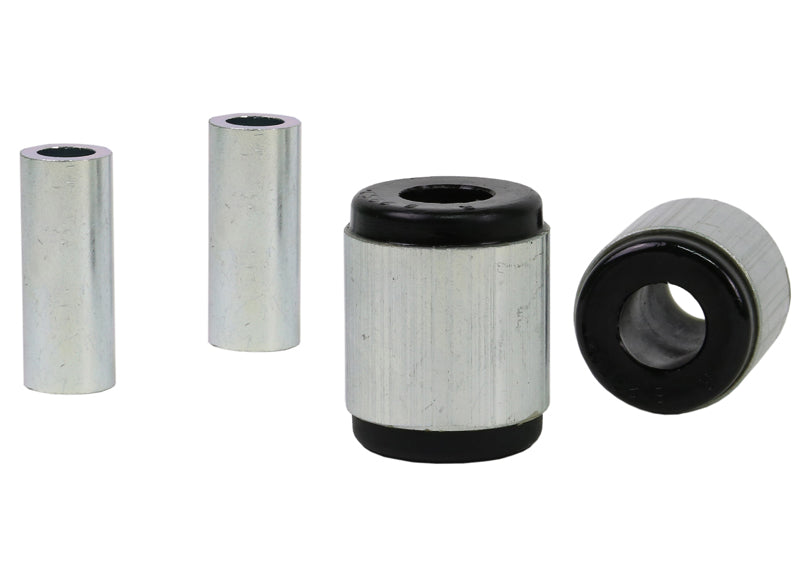

This Whiteline Rear Lower Control Arm Bushing Kit fits the 2006 Mitsubishi Lancer Evolution SE (CS). Order it as part number W62950. This part is for the rear of the vehicle. You receive 2 shell bushings and 2 tubes.
A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.
Whiteline rates the install as moderate and lists about 3 hours. Plan on a wheel alignment afterward. We also list Front Control Arm Lower Inner Rear Bushing, Rear Sway Bar Link, and Front and Rear Sway Bar Kit for the Lancer Evolution.
Features
- Material: Polyurethane construction.
- Bonded design: The bushing is bonded for strength where loads are highest.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
Specifications
| Part Number | W62950 |
| Part Name | Control Arm Bushing |
| Vehicle | 2006 Mitsubishi Lancer Evolution SE |
| Drivetrain | AWD |
| Chassis Code | CS |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 40.1 mm |
| Bushing Quantity | 2 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Shell Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
