Product Details

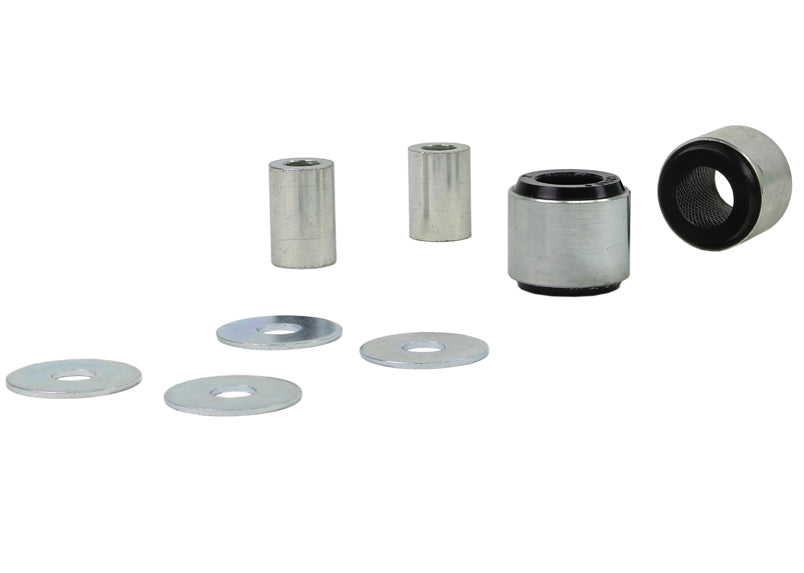

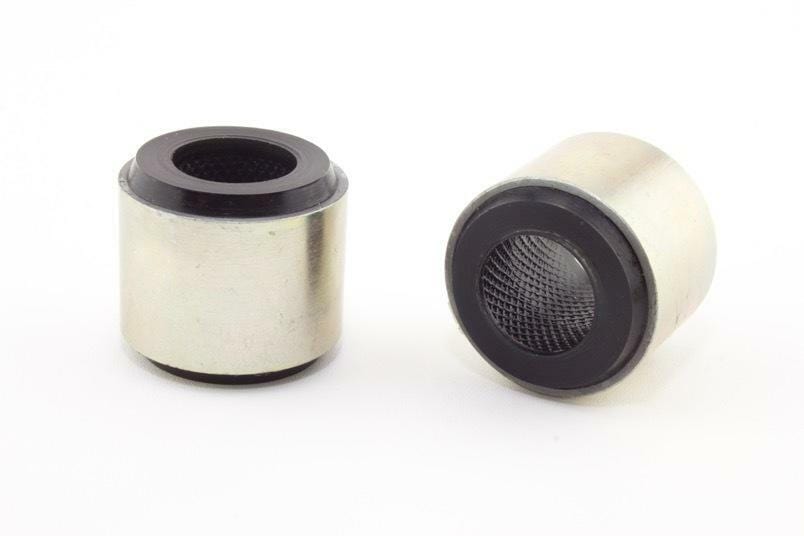

This Whiteline Rear Trailing Arm Lower Rear Bushing fits the 2005-2007 Chrysler 300C Base (LX). Order it as part number W63346. Chassis code: LX. In the box: 2 shell bushings, 2 tubes, an install guide, and grease. Position: rear.
Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired trailing arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated moderate, with about 4 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the 300C, see Rear Subframe Mount Bushing, Front and Rear Sway Bar Kit, and Front Lower Radius Arm Bushing.
Features
- Finish: Powder coat finish guards the metal against chips and corrosion.
- Corrosion protection: Rust protection comes from plating on the metal parts.
- Grease: Supplied with molybdenum disulfide grease for extended service life.
- Bonded design: A bonded design adds strength for high load applications.
- Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
- Material: Polyurethane construction.
Specifications
| Part Number | W63346 |
| Part Name | Trailing Arm Bushing |
| Vehicle | 2005-2007 Chrysler 300C Base |
| Drivetrain | RWD/AWD |
| Chassis Code | LX |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Color | Black |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 4 |
| Kit Contents | 2 Shell Bushings, 2 Tubes, Install Guide, Grease |
| Material | Polyurethane |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
