Product Details

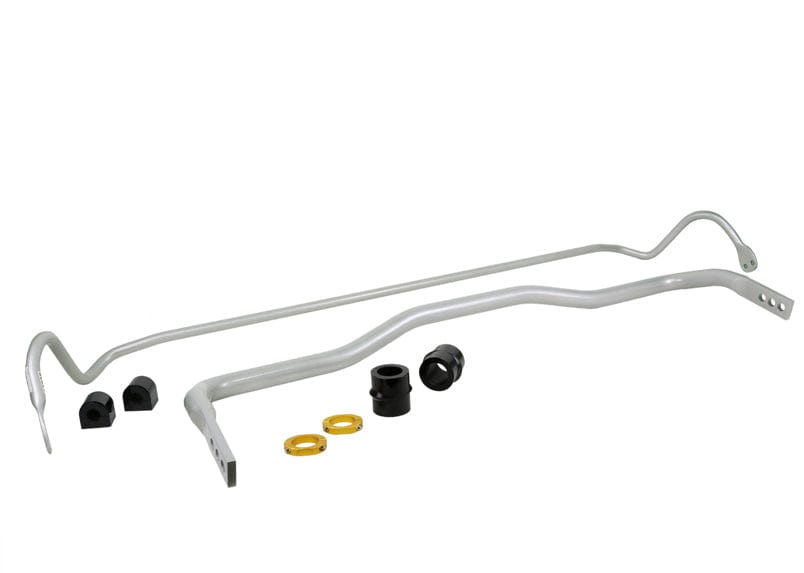

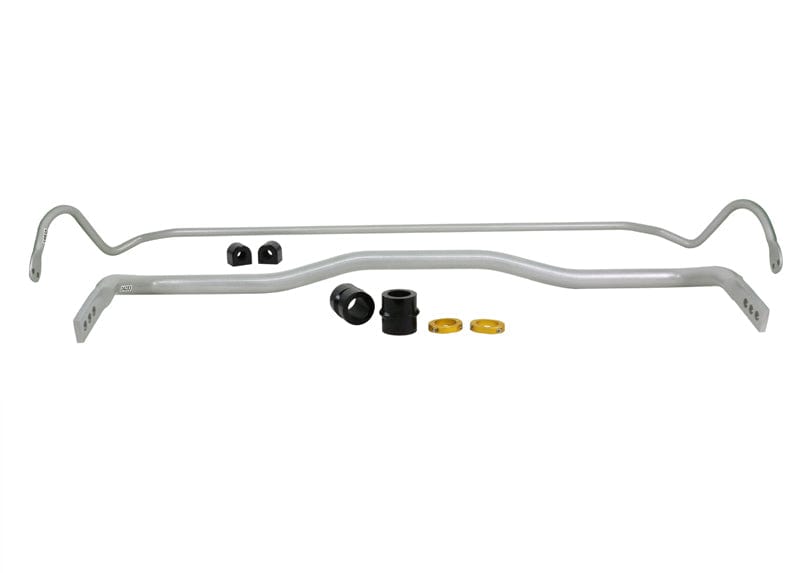

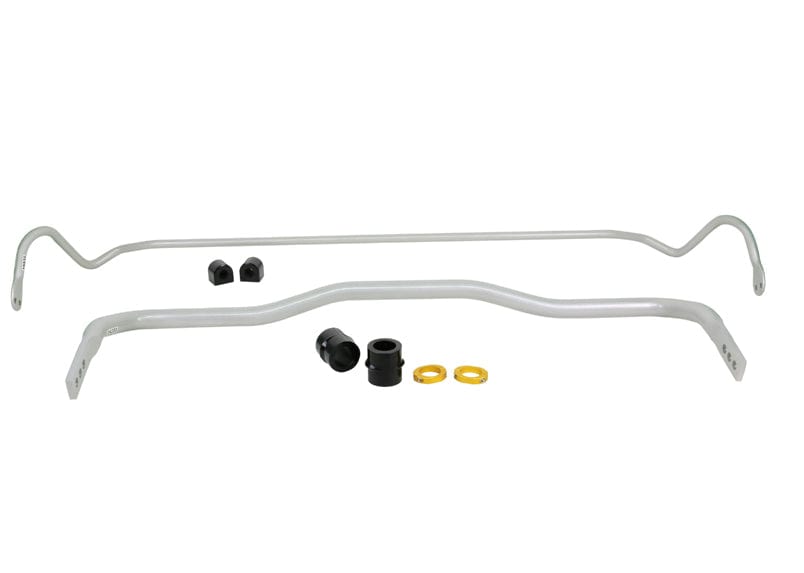

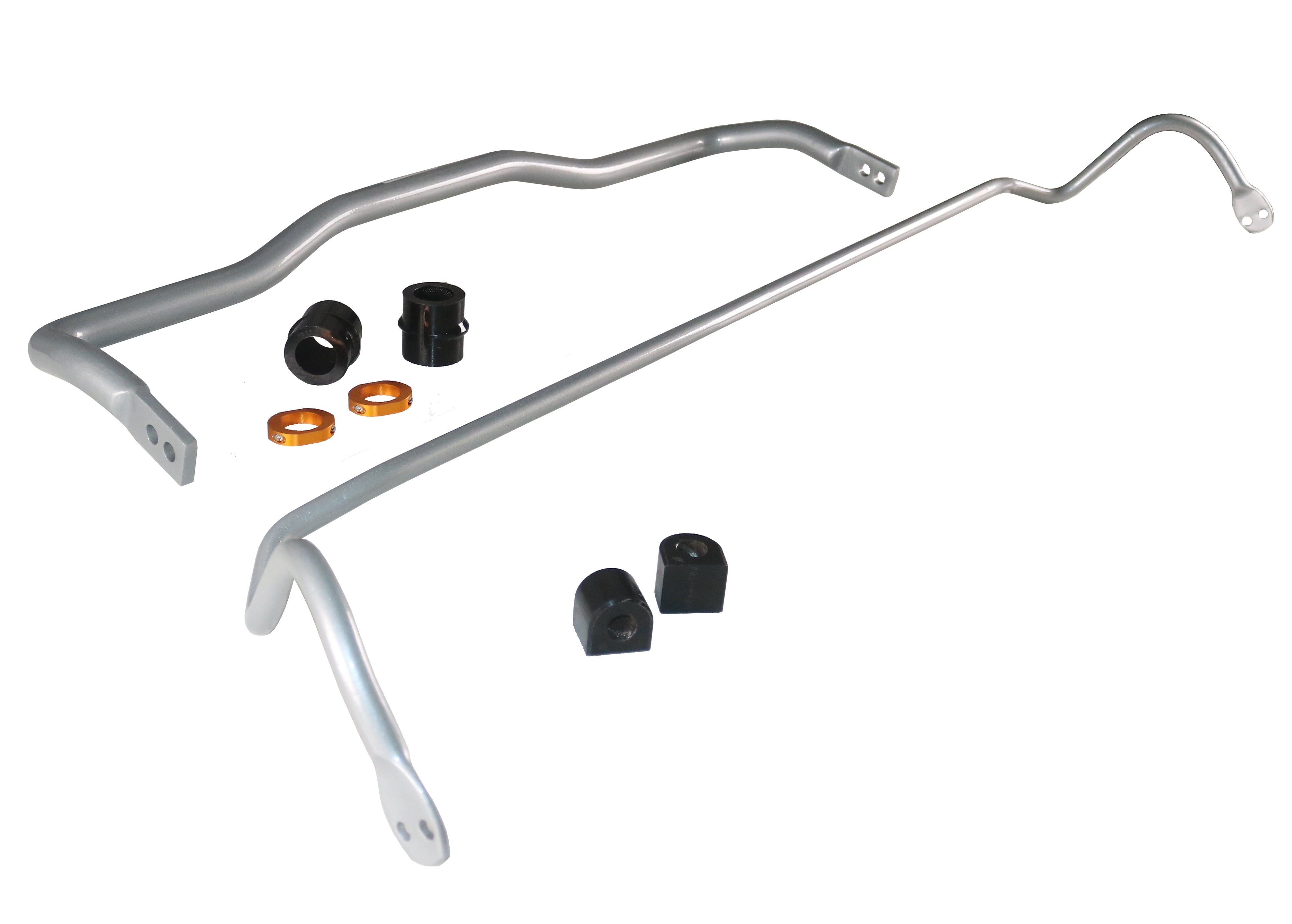

This Whiteline Front and Rear Sway Bar Kit fits the 2005-2011 Chrysler 300C Touring (LX). This part is for the front and rear of the vehicle. Order it as part number BCK003. Whiteline's note for this fit: Contains BCF12Z and BCR15Z. Included: 2 sway bars, 4 bushings, and 2 lateral locks.

Front and rear sway bars work as a team. The bars resist roll by twisting, and their relative stiffness shapes whether the car feels planted or loose at the limit. This kit supplies both ends so the balance stays under control. The bar is adjustable, so the stiffness can be changed to suit the car and the road.

Installation is rated moderate, with about 3 hours of work listed. No alignment is needed afterward. To go with it on the 300C, see Rear Subframe Mount Bushing, Rear Trailing Arm Lower Front Bushing, and Front Lower Radius Arm Bushing.

Features

  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Install guide: An install guide comes in the box.
  • Bar mounts: The mounts have an internal bore pattern and lips that retain grease.
  • Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
  • PTFE lined: PTFE lining gives a very low friction surface and removes the need to grease.
  • Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
Specifications
Part Number BCK003
Part Name Sway Bars
Vehicle 2005-2011 Chrysler 300C Touring
Drivetrain RWD/AWD
Chassis Code LX
Bushing Material Polyurethane
Sway Bar Adjustable - Front Yes
Sway Bar Diameter - Front 33 mm
Sway Bar Included - Front Yes
Sway Bar Links Included - Front No
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Sway Bars, 4 Bushings, 2 Lateral Locks
Sway Bar Adjustable - Rear Yes
Sway Bar Diameter - Rear 18 mm
Sway Bar Included - Rear Yes
Sway Bar Links Included - Rear No
Wheel Alignment Required No
Notes Contains BCF12Z and BCR15Z

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005Chrysler300CRWDContains BCF12Z and BCR15Z
2005Chrysler300CAWDContains BCF12Z and BCR15Z
2006Chrysler300CRWDContains BCF12Z and BCR15Z
2006Chrysler300CAWDContains BCF12Z and BCR15Z
2007Chrysler300CRWDContains BCF12Z and BCR15Z
2007Chrysler300CAWDContains BCF12Z and BCR15Z
2008Chrysler300CRWDContains BCF12Z and BCR15Z
2008Chrysler300CAWDContains BCF12Z and BCR15Z
2009Chrysler300CRWDContains BCF12Z and BCR15Z
2009Chrysler300CAWDContains BCF12Z and BCR15Z
2010Chrysler300CRWDContains BCF12Z and BCR15Z
2010Chrysler300CAWDContains BCF12Z and BCR15Z
2011Chrysler300CRWDContains BCF12Z and BCR15Z
2011Chrysler300CAWDContains BCF12Z and BCR15Z
