Product Details

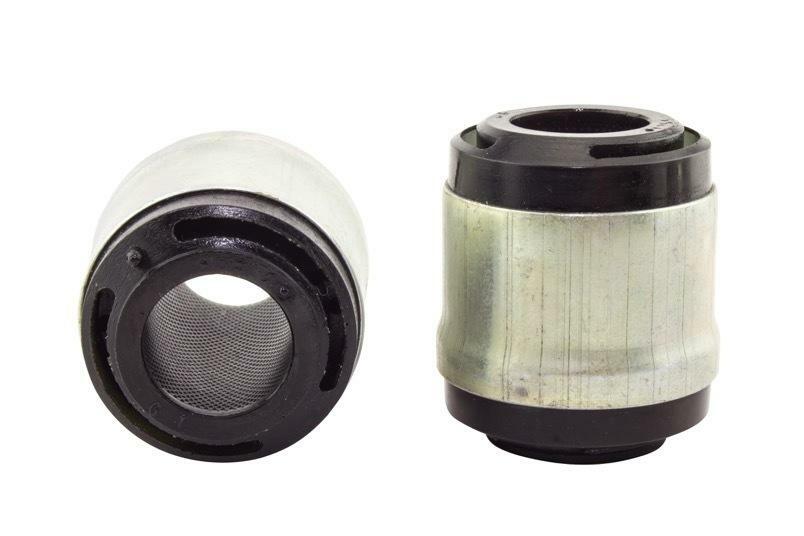

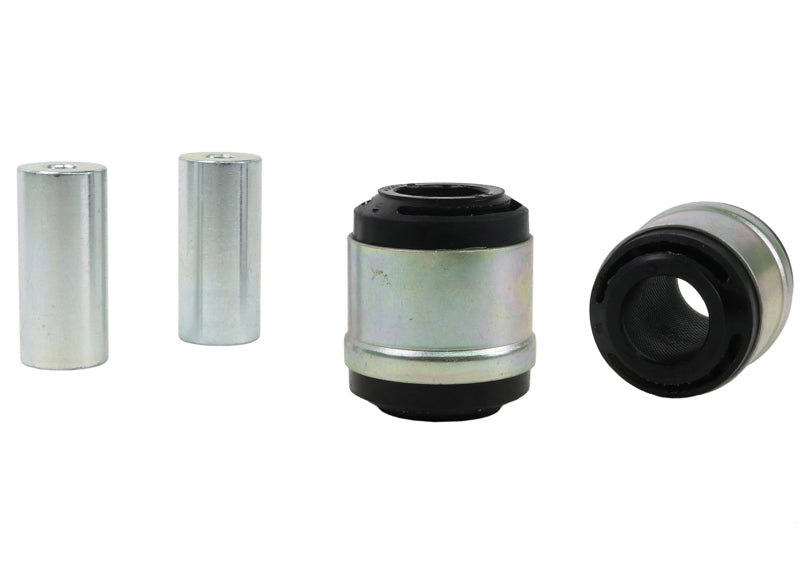

This Whiteline Front Lower Radius Arm Bushing fits the 2005-2007 Chrysler 300C Base (LX). It fits RWD models. Position: front. Part number W53335. In the box: 2 shell bushings and 2 tubes.
Every time the wheel moves, the radius arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.
Installation is rated moderate, with about 3 hours of work listed. Plan on a wheel alignment afterward. To go with it on the 300C, see Rear Subframe Mount Bushing, Front and Rear Sway Bar Kit, and Rear Trailing Arm Lower Front Bushing.
Features
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Material: Built from polyurethane.
- Finish: The metal parts are powder coated for durability.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
- Install guide: Step-by-step installation instructions come with it.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
Specifications
| Part Number | W53335 |
| Part Name | Radius Arm Bushing |
| Vehicle | 2005-2007 Chrysler 300C Base |
| Chassis Code | LX |
| Drivetrain | RWD |
| Bushing 1 Inner Diameter | 14.2 mm |
| Bushing 1 Outer Diameter | 69.7 mm |
| Bushing 2 Outer Diameter | 66.5 mm |
| Bushing Quantity | 2 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Shell Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | - |
