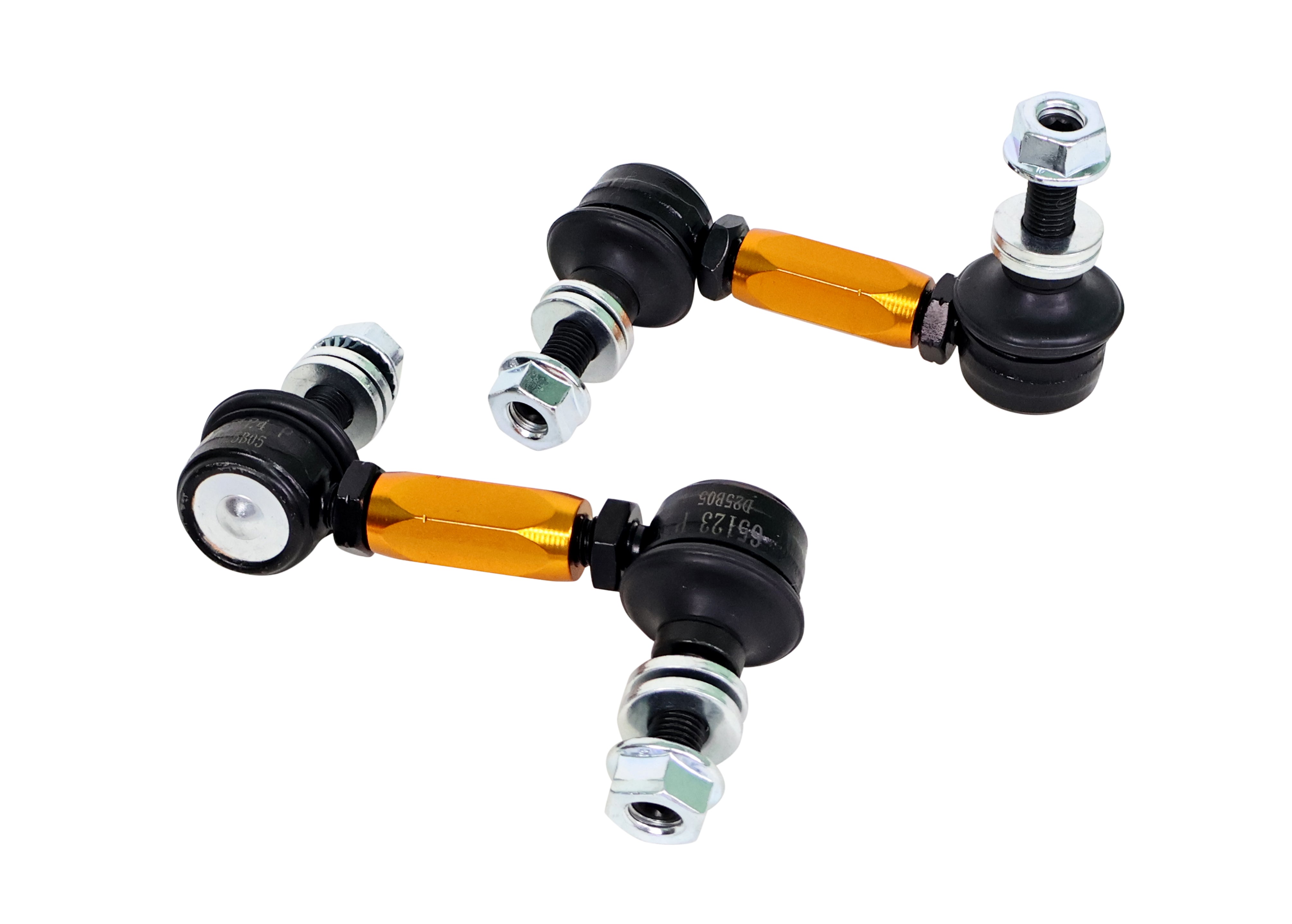

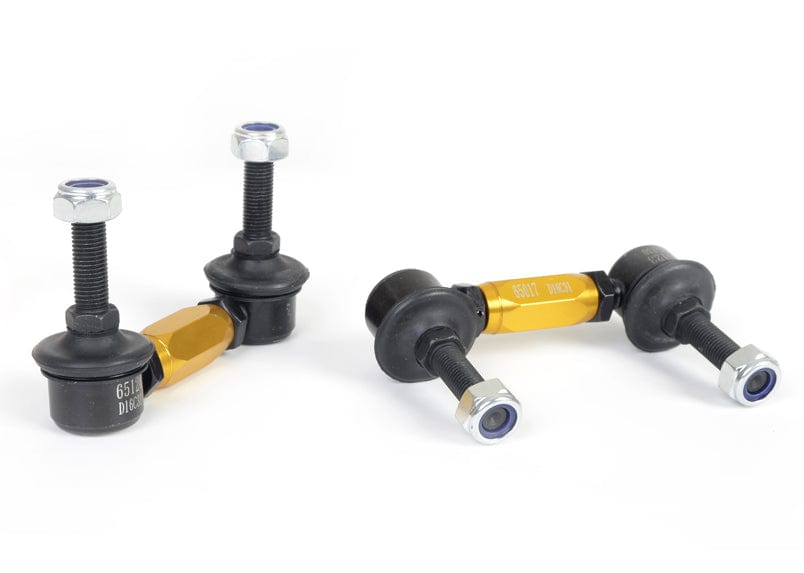

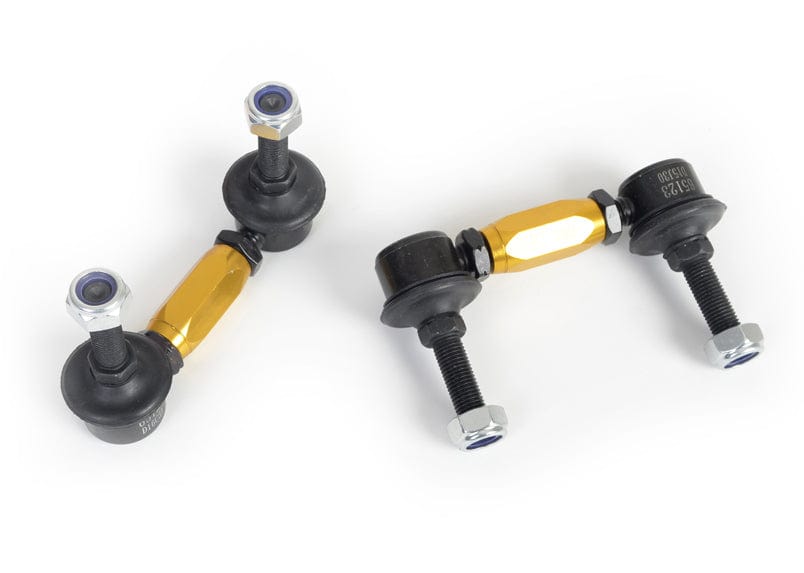

Product Details

This Whiteline Adjustable Rear Sway Bar Link fits the 2007-2012 Dodge Caliber SE, SXT (PM). Included: 2 links. Part number KLC144. Whiteline's note for this fit: Adjustable Extra Heavy Duty. This part is for the rear of the vehicle.

A sway bar link is the short rod that ties each end of the rear sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.

Installation is rated moderate, with about 1 hour of work listed. It does not require a wheel alignment. To go with it on the Caliber, see 14mm Adjustable Front Camber Bolts, Adjustable Front Sway Bar Link, and Front Control Arm Lower Inner Rear Bushing.

Features

  • Construction: Alloy construction keeps the weight down while handling the loads.
  • Anodized alloy: The alloy carries an anodized finish for durability.
  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
  • Install guide: Written install instructions are included with the part.
  • Preload-free setup: The length can be set on the car to remove preload from the sway bar.
  • Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
Specifications
Part Number KLC144
Part Name Sway Bar Link
Vehicle 2007-2012 Dodge Caliber SE, SXT
Drivetrain FWD/AWD
Chassis Code PM
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 90-115 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2007DodgeCaliberFWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2007DodgeCaliberAWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2008DodgeCaliberFWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2008DodgeCaliberAWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2009DodgeCaliberFWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2009DodgeCaliberAWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2010DodgeCaliberFWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2010DodgeCaliberAWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2011DodgeCaliberFWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2011DodgeCaliberAWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2012DodgeCaliberFWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2012DodgeCaliberAWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
