Product Details

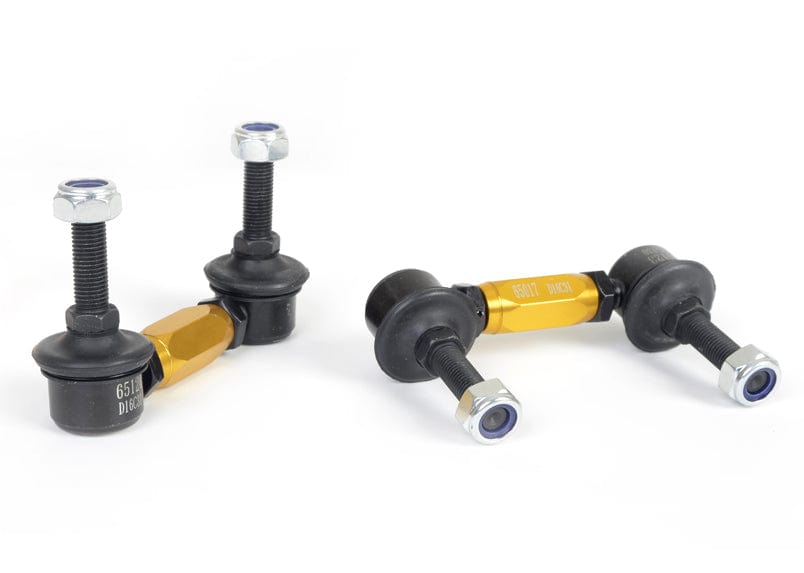

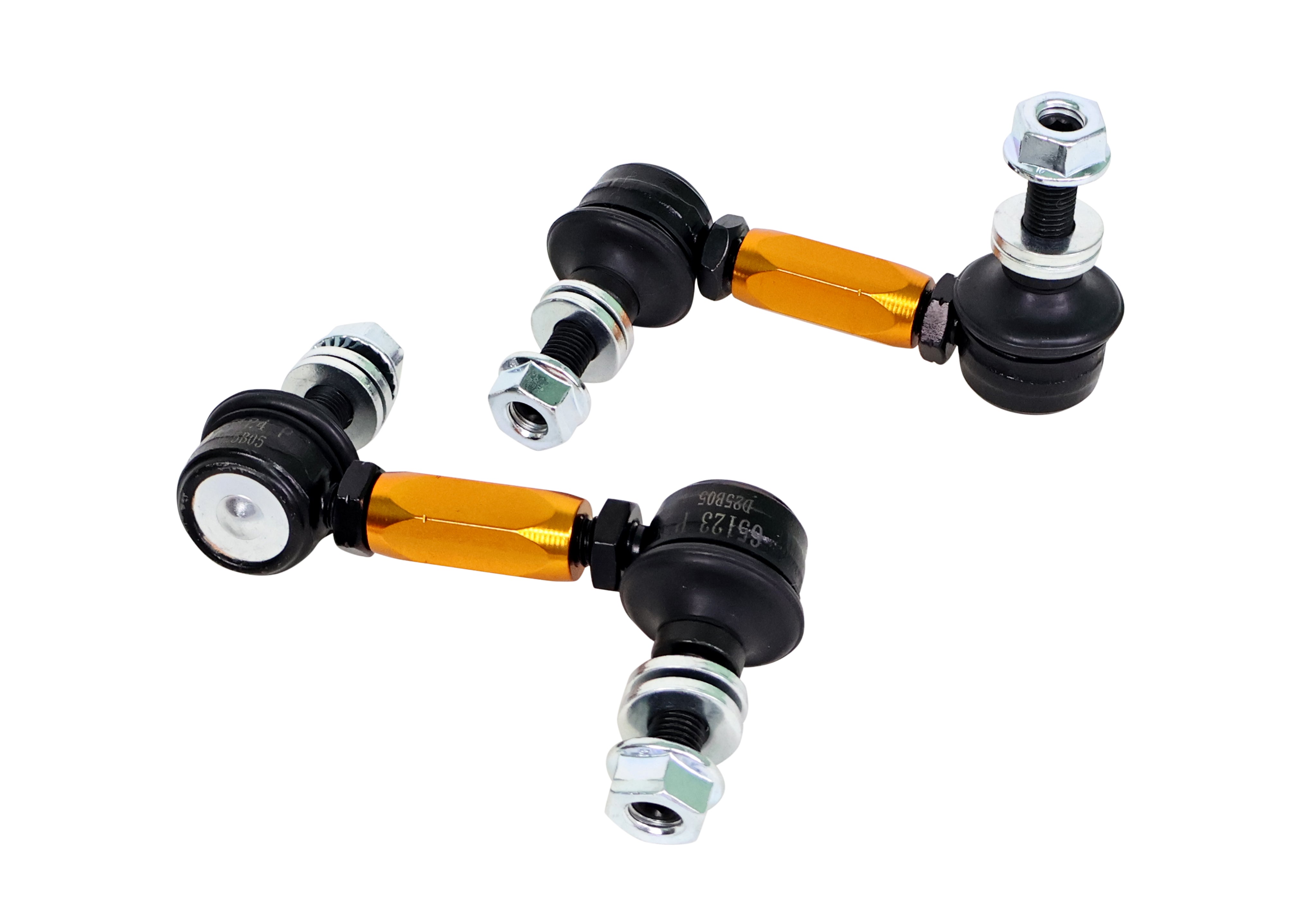

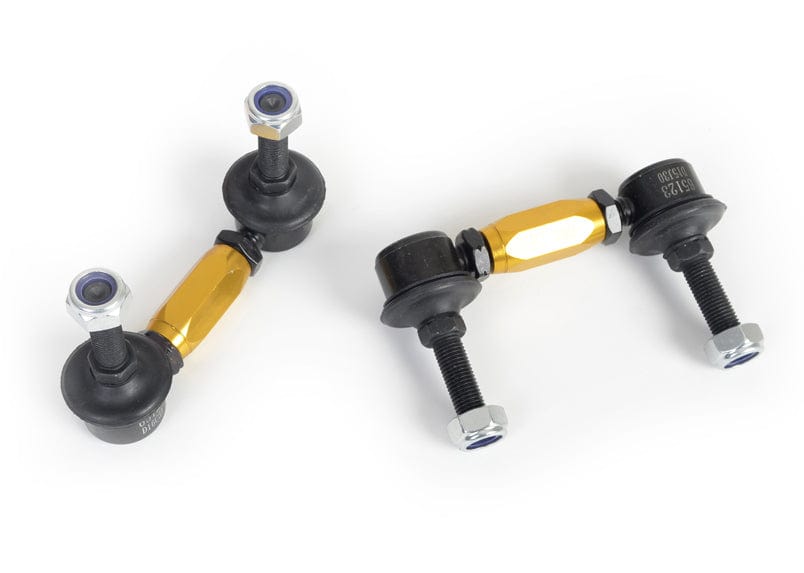

This Whiteline Adjustable Rear Sway Bar Link fits the 2005 Mazda RX-8 Shinka (SE3P). This part is for the rear of the vehicle. The kit contains 2 links. Whiteline's note for this fit: Adjustable Extra Heavy Duty. Whiteline part number: KLC144.

A sway bar link is the short rod that ties each end of the rear sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Whiteline rates the install as moderate and lists about 1 hour. It does not require a wheel alignment. We also list Adjustable Front Sway Bar Link, Front and Rear Sway Bar Kit, and Front Control Arm Lower Inner Front Bushing for the RX-8.

Features

  • Install guide: Step-by-step installation instructions come with it.
  • Pre-greased: Comes pre-greased, so it can go straight on the car.
  • Construction: Made from strong, light alloy.
  • Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
  • Anodized alloy: The alloy carries an anodized finish for durability.
  • Preload-free setup: Length adjustment on the car lets you take preload out of the bar.
Specifications
Part Number KLC144
Part Name Sway Bar Link
Vehicle 2005 Mazda RX-8 Shinka
Chassis Code SE3P
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 90-115 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005MazdaRX-8RWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
