Product Details

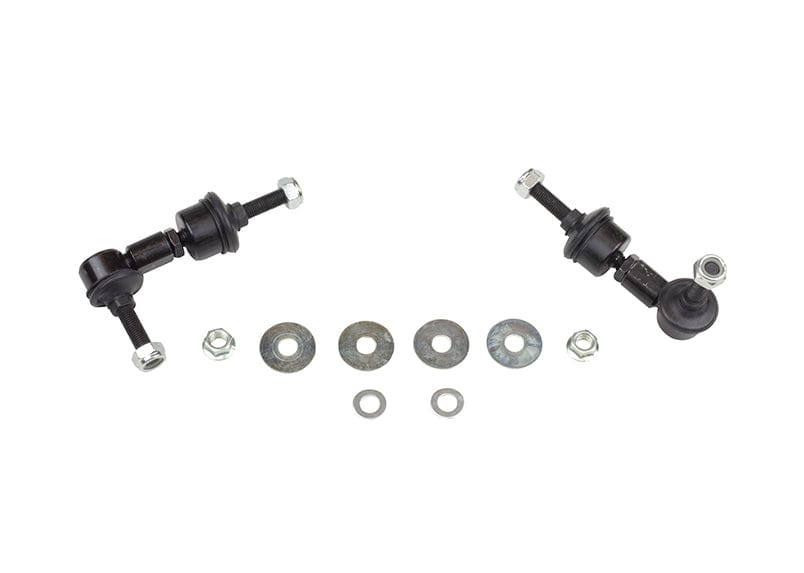

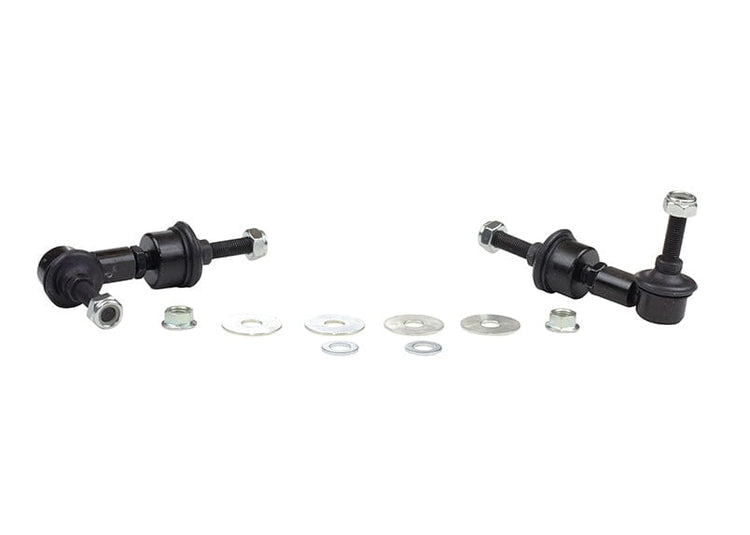

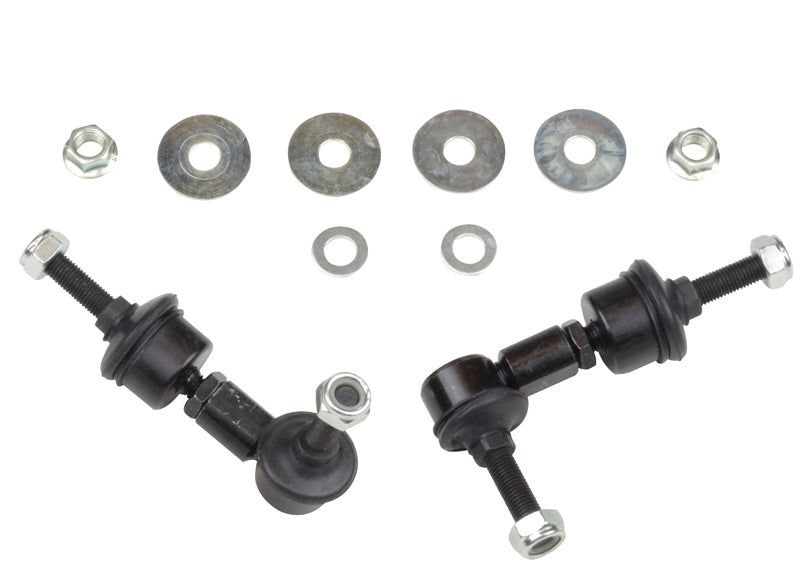

This Whiteline Adjustable Rear Sway Bar Link fits the 2004-2011 Volvo S40 T5 (P1). In the box: 2 links. Whiteline's note for this fit: Adjustable Extra Heavy Duty. Order it as part number KLC157. Position: rear.

Links are small parts with a large effect on how a car leans in a corner. They sit between the bar and the suspension and decide how quickly and how evenly the bar's resistance reaches the tire, and this rear link is built to keep that connection firm. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.

Expect a moderate job of about 1 hour. A wheel alignment is not required. To go with it on the Volvo S40, see Adjustable Rear Upper Control Arm Set, Adjustable Front Sway Bar Link, and Front Control Arm Lower Inner Front Bushing.

Features

  • Ball joints: Steel ball joint ends are built for heavy loads and free movement.
  • Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
  • Hardware: Hardware supplied: locking nuts and washers.
  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
  • Material: Steel construction.
  • Install guide: Written install instructions are included with the part.
Specifications
Part Number KLC157
Part Name Sway Bar Link
Vehicle 2004-2011 Volvo S40 T5
Drivetrain FWD/AWD
Chassis Code P1
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 85-95 mm
Locking Nuts Included Yes
Material Steel
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004VolvoS40FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2004VolvoS40AWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2005VolvoS40FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2005VolvoS40AWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2006VolvoS40FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2006VolvoS40AWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2007VolvoS40FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2007VolvoS40AWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2008VolvoS40FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2008VolvoS40AWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2009VolvoS40FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2009VolvoS40AWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2010VolvoS40FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2010VolvoS40AWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2011VolvoS40FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2011VolvoS40AWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
