Product Details

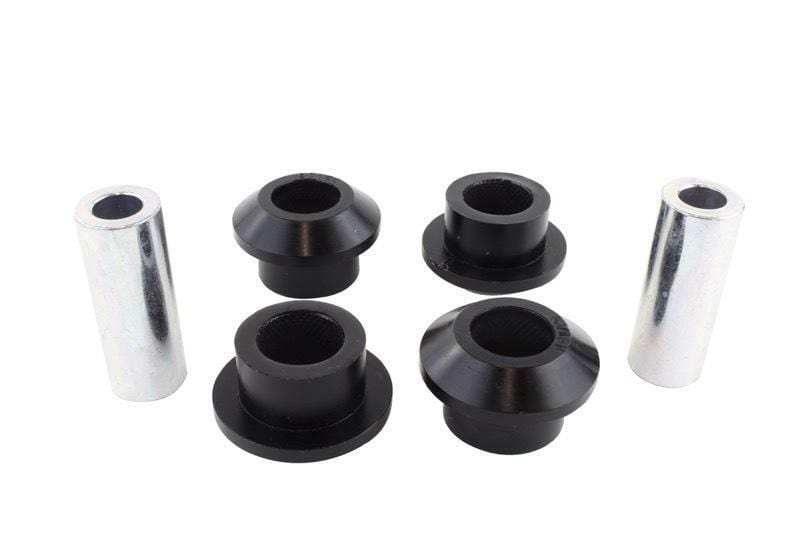

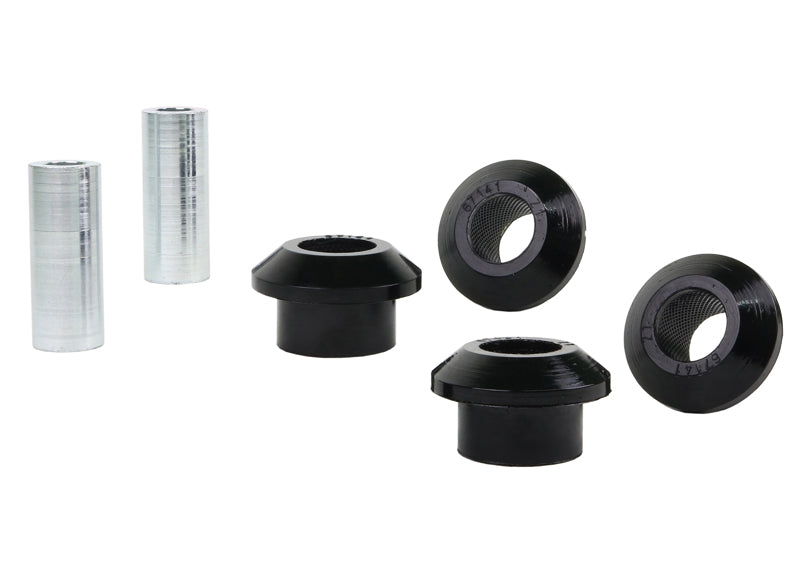

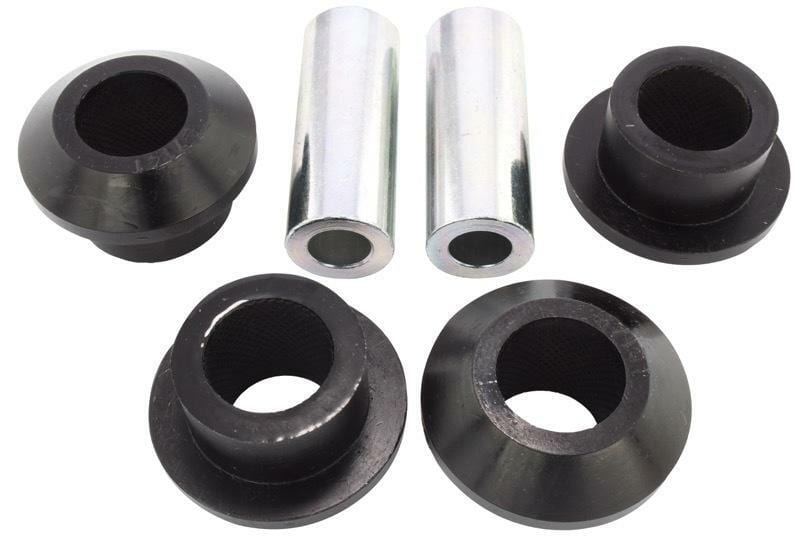

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2004-2005 Volvo S40 i (P1). Order it as part number W53286. You receive 4 bushings and 2 tubes. It goes on the front of the vehicle.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated difficult, with about 2.5 hours of work listed. An alignment is required after installation. To go with it on the Volvo S40, see Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.

Features

  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Material: Made from polyurethane.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
Specifications
Part Number W53286
Part Name Control Arm Bushing
Vehicle 2004-2005 Volvo S40 i
Drivetrain FWD/AWD
Chassis Code P1
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 38 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004VolvoS40FWD
2004VolvoS40AWD
2005VolvoS40FWD
2005VolvoS40AWD
