Product Details

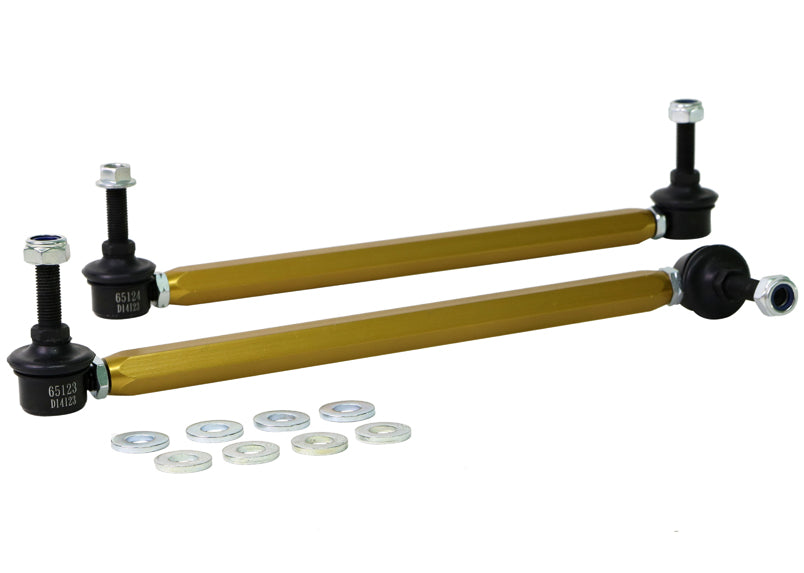

This Whiteline Adjustable Front Sway Bar Link fits the 2004-2012 Volvo S40. The part number is KLC151. It is listed for the P1 chassis. Position: front. Application note: Adjustable extra heavy duty. In the box: 2 links and 8 washers.
The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.
Expect a moderate job of about 1 hour. It does not require a wheel alignment. Working on the same car? We also list Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Front Control Arm Lower Inner Front Bushing for the Volvo S40.
Features
- Anodized alloy: The alloy carries an anodized finish for durability.
- Preload-free setup: The length can be set on the car to remove preload from the sway bar.
- Ball joints: Steel ball joint ends are built for heavy loads and free movement.
- Install guide: An install guide comes in the box.
- Construction: Made from strong, light alloy.
- Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
Specifications
| Part Number | KLC151 |
| Part Name | Sway Bar Link |
| Vehicle | 2004-2012 Volvo S40 |
| Chassis Code | P1 |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links, 8 Washers |
| Length | 310-335 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable extra heavy duty. Length 310-335mm. Bolt Diameter 10mm. |
