Product Details

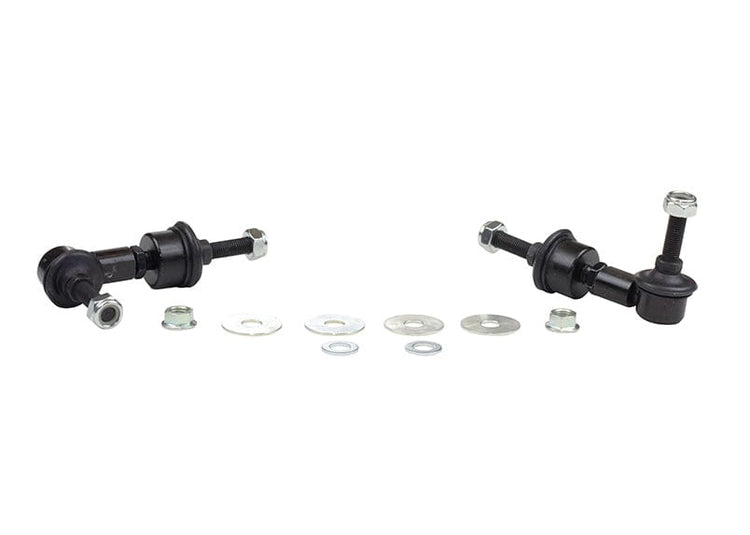

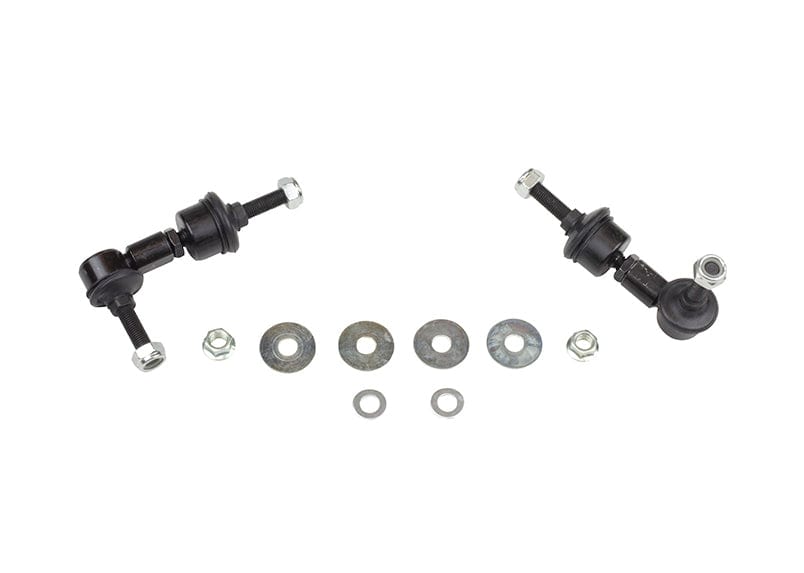

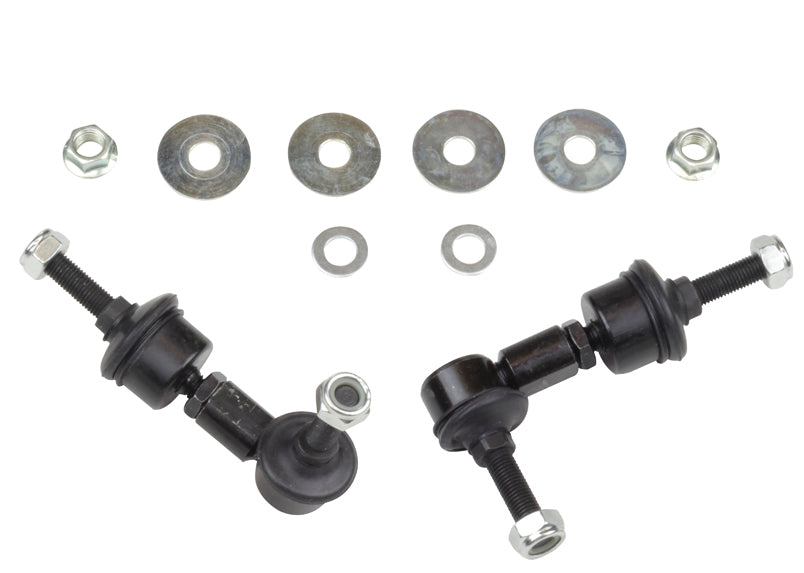

This Whiteline Adjustable Rear Sway Bar Link fits the 2004-2005 Volvo S40 i (P1). Application note: Adjustable Extra Heavy Duty. Order it as part number KLC157. Chassis code: P1. Position: rear. In the box: 2 links.

The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.

Expect a moderate job of about 1 hour. It does not require a wheel alignment. We also list Adjustable Rear Upper Control Arm Set, Adjustable Front Sway Bar Link, and Front Control Arm Lower Inner Front Bushing for the Volvo S40.

Features

  • Material: Built from steel.
  • Ball joints: Steel ball joint ends are built for heavy loads and free movement.
  • Hardware: The kit includes locking nuts and washers.
  • Rigid design: A stiffer design than the factory part gives a more immediate response.
  • Install guide: Instructions for fitting are packed in the box.
  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
Specifications
Part Number KLC157
Part Name Sway Bar Link
Vehicle 2004-2005 Volvo S40 i
Drivetrain FWD/AWD
Chassis Code P1
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 85-95 mm
Locking Nuts Included Yes
Material Steel
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004VolvoS40FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2004VolvoS40AWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2005VolvoS40FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2005VolvoS40AWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
