Product Details

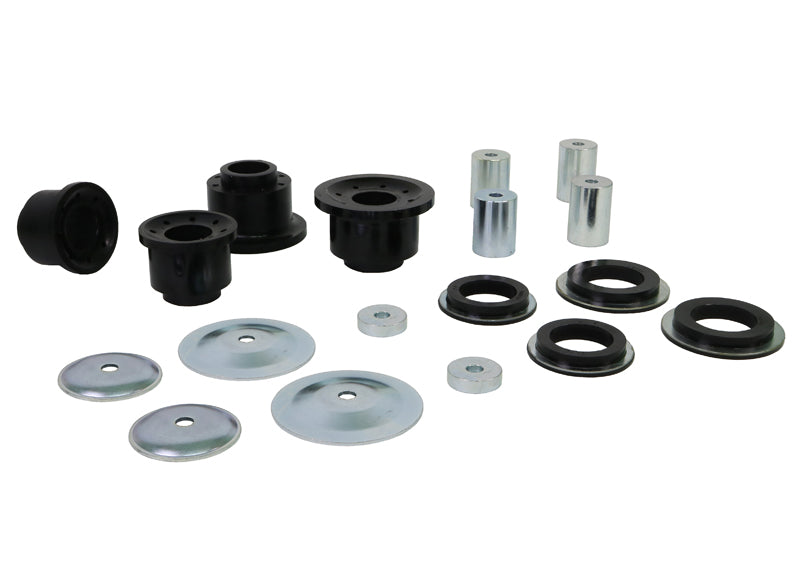

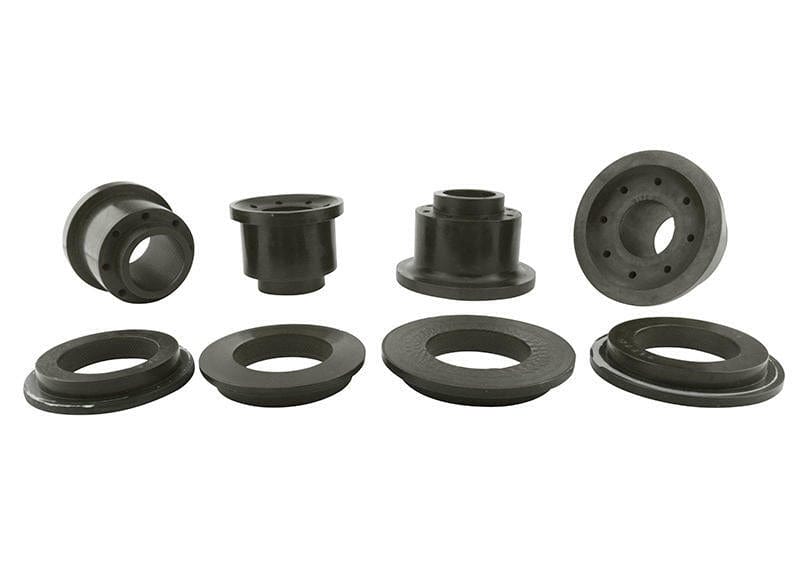

This Whiteline Rear Subframe Mount Bushing fits the 2010-2015 Chrysler 300C S (LX/LD). Part number W93343. You receive 8 bushings, 4 tubes, 6 washers, an install guide, and grease. It goes on the rear of the vehicle.

The rear subframe is the cradle that the rear suspension arms bolt to, and the car is attached to it through rubber mounts that are soft on purpose. That softness lets the subframe shift under hard cornering or acceleration, which dulls the feel of the rear end. A firmer bushing set holds the subframe in position, so the rear responds more directly to steering and throttle.

Whiteline rates the install as difficult and lists about 4 hours. Get the car aligned once it is back on the ground. To go with it on the 300C, see Front and Rear Sway Bar Kit, Rear Trailing Arm Lower Front Bushing, and Front Lower Radius Arm Bushing.

Features

  • Install guide: Step-by-step installation instructions come with it.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
Specifications
Part Number W93343
Part Name Subframe Mount Bushing
Vehicle 2010-2015 Chrysler 300C S
Drivetrain RWD/AWD
Chassis Code LX/LD
Bushing Color Black
Bushing Material Polyurethane
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 4
Kit Contents 8 Bushings, 4 Tubes, 6 Washers, Install Guide, Grease
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2010Chrysler300CRWD
2010Chrysler300CAWD
2011Chrysler300CRWD
2011Chrysler300CAWD
2012Chrysler300CRWD
2012Chrysler300CAWD
2013Chrysler300CRWD
2013Chrysler300CAWD
2014Chrysler300CRWD
2014Chrysler300CAWD
2015Chrysler300CRWD
2015Chrysler300CAWD
