Product Details

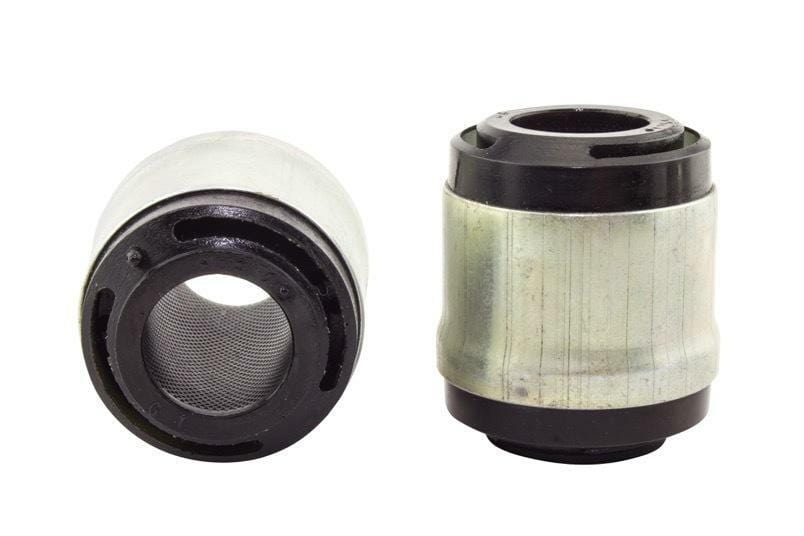

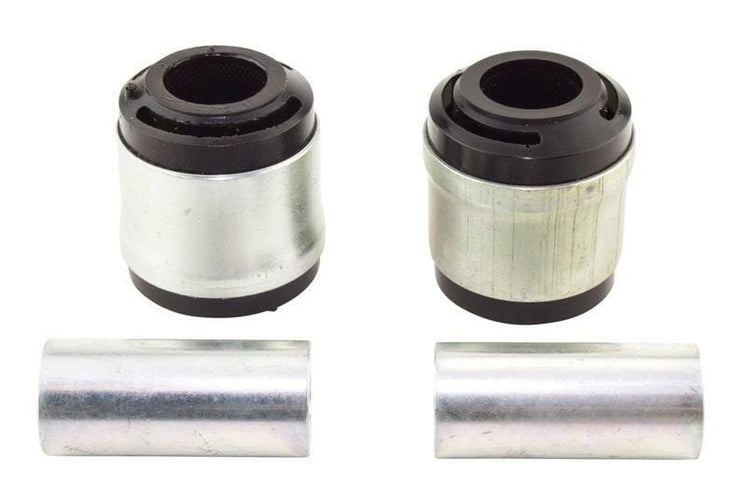

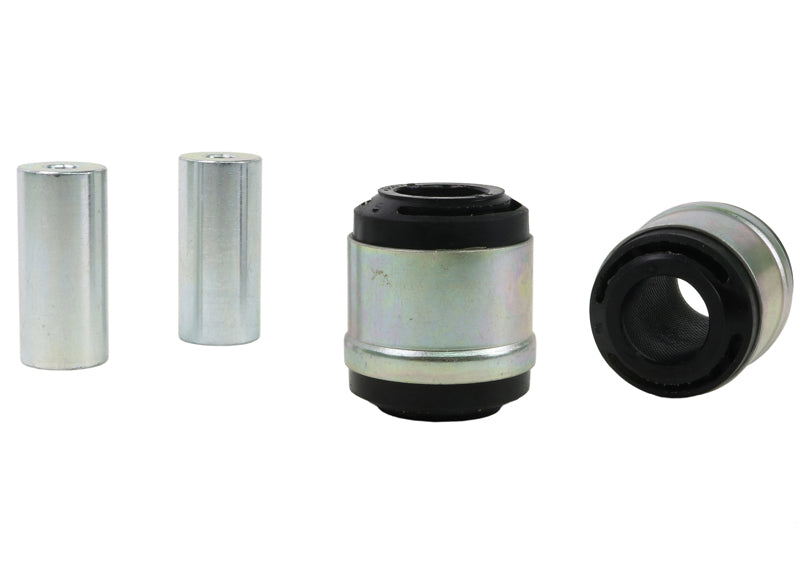

This Whiteline Front Lower Radius Arm Bushing fits the 2005-2010 Chrysler 300C Base, Limited, Touring (LX). In the box: 2 shell bushings and 2 tubes. Position: front. The part number is W53335. Listed for RWD cars.

Every time the wheel moves, the radius arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated moderate, with about 3 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the 300C, see Rear Subframe Mount Bushing, Front and Rear Sway Bar Kit, and Rear Trailing Arm Lower Front Bushing.

Features

  • Material: The part is made of polyurethane.
  • Install guide: Instructions for fitting are packed in the box.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Bonded design: The bushing is bonded for strength where loads are highest.
Specifications
Part Number W53335
Part Name Radius Arm Bushing
Vehicle 2005-2010 Chrysler 300C Base, Limited, Touring
Chassis Code LX
Drivetrain RWD
Bushing 1 Inner Diameter 14.2 mm
Bushing 1 Outer Diameter 69.7 mm
Bushing 2 Outer Diameter 66.5 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005Chrysler300CRWD
2006Chrysler300CRWD
2007Chrysler300CRWD
2008Chrysler300CRWD
2009Chrysler300CRWD
2010Chrysler300CRWD
