Product Details

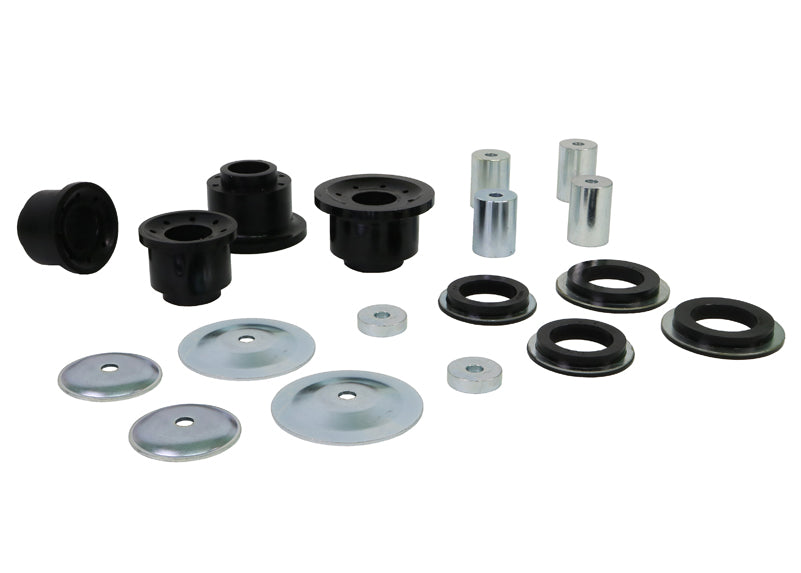

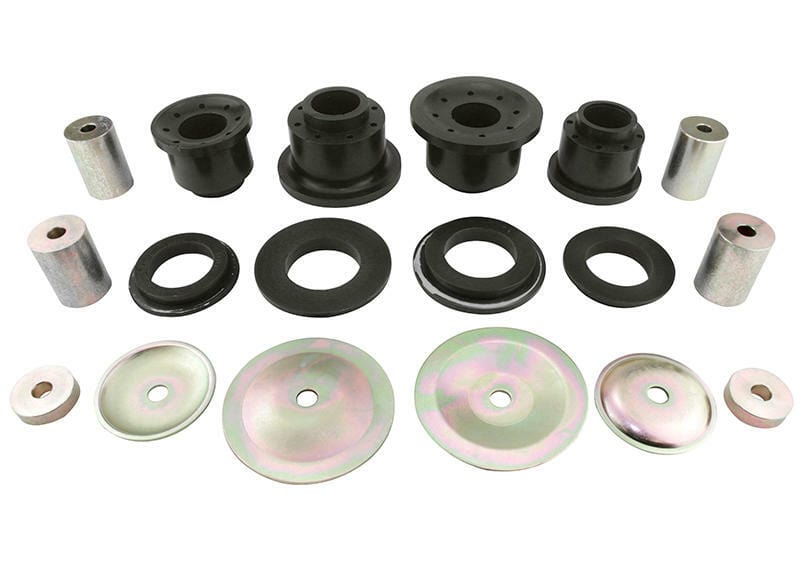

This Whiteline Rear Subframe Mount Bushing fits the 2009 Chrysler 300C Signature Series (LX). Order it as part number W93343. The kit contains 8 bushings, 4 tubes, 6 washers, an install guide, and grease. This part is for the rear of the vehicle.

Rubber subframe mounts compress and stretch every time the car loads up, and the subframe moves with them. Reducing that lost motion tends to show up as steadier tracking and a more immediate rear end in corners.

Installation is rated difficult, with about 4 hours of work listed. Plan on a wheel alignment afterward. To go with it on the 300C, see Front and Rear Sway Bar Kit, Rear Trailing Arm Lower Front Bushing, and Front Lower Radius Arm Bushing.

Features

  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Finish: A powder coated finish resists corrosion and wear.
  • Install guide: Written install instructions are included with the part.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
Specifications
Part Number W93343
Part Name Subframe Mount Bushing
Vehicle 2009 Chrysler 300C Signature Series
Drivetrain RWD/AWD
Chassis Code LX
Bushing Color Black
Bushing Material Polyurethane
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 4
Kit Contents 8 Bushings, 4 Tubes, 6 Washers, Install Guide, Grease
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009Chrysler300CRWD
2009Chrysler300CAWD
