Product Details

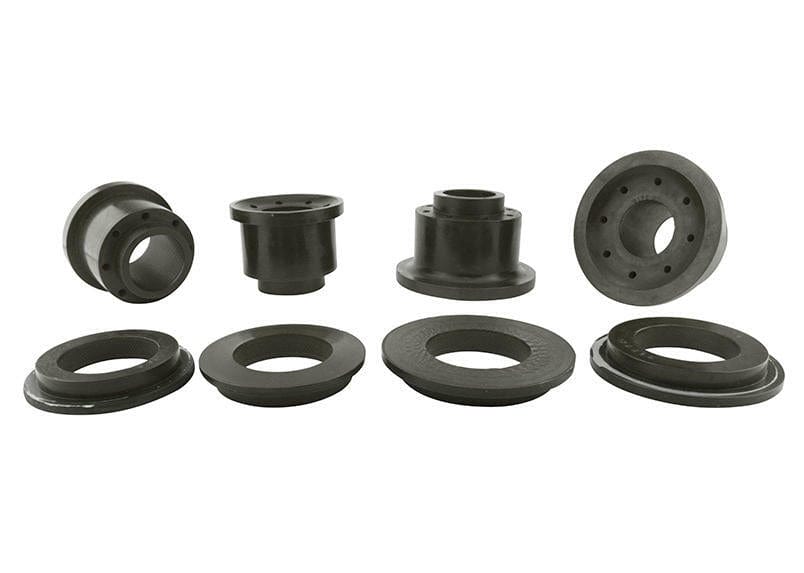

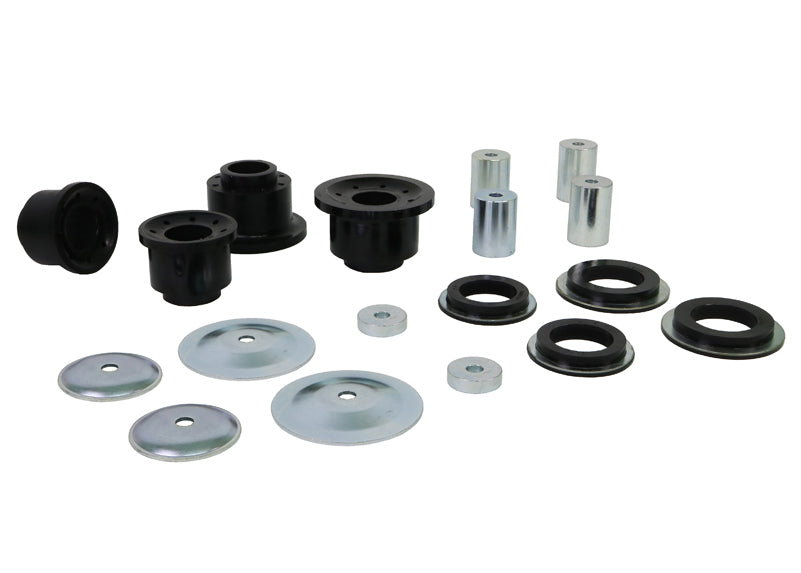

This Whiteline Rear Subframe Mount Bushing fits the 2008-2009 Chrysler 300C LX (LX). Order it as part number W93343. Included: 8 bushings, 4 tubes, 6 washers, an install guide, and grease. Placement: rear.

The rear subframe is the cradle that the rear suspension arms bolt to, and the car is attached to it through rubber mounts that are soft on purpose. That softness lets the subframe shift under hard cornering or acceleration, which dulls the feel of the rear end. A firmer bushing set holds the subframe in position, so the rear responds more directly to steering and throttle.

Installation is rated difficult, with about 4 hours of work listed. An alignment is required after installation. We also list Front and Rear Sway Bar Kit, Rear Trailing Arm Lower Front Bushing, and Front Lower Radius Arm Bushing for the 300C.

Features

  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Bushing material: Made of polyurethane, which resists deflection better than soft rubber.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Install guide: Step-by-step installation instructions come with it.
Specifications
Part Number W93343
Part Name Subframe Mount Bushing
Vehicle 2008-2009 Chrysler 300C LX
Drivetrain RWD/AWD
Chassis Code LX
Bushing Color Black
Bushing Material Polyurethane
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 4
Kit Contents 8 Bushings, 4 Tubes, 6 Washers, Install Guide, Grease
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008Chrysler300CRWD
2008Chrysler300CAWD
2009Chrysler300CRWD
2009Chrysler300CAWD
