Product Details

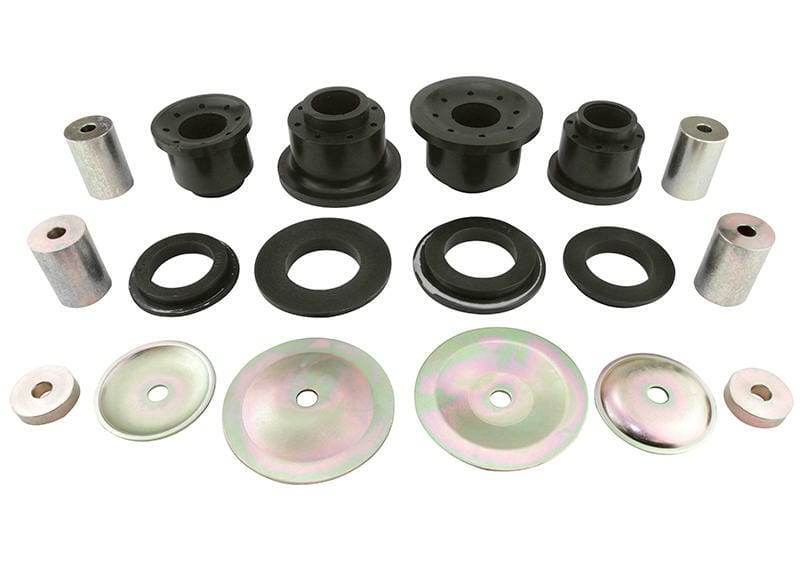

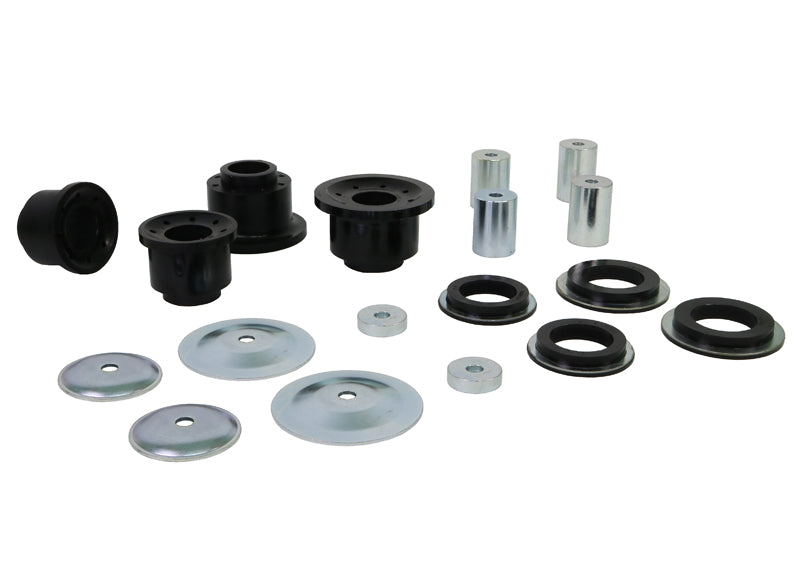

This Whiteline Rear Subframe Mount Bushing fits the 2005-2023 Chrysler 300C Base, Limited (LX/LD). Order it as part number W93343. This part is for the rear of the vehicle. You receive 8 bushings, 4 tubes, 6 washers, an install guide, and grease.

The rear subframe is the cradle that the rear suspension arms bolt to, and the car is attached to it through rubber mounts that are soft on purpose. That softness lets the subframe shift under hard cornering or acceleration, which dulls the feel of the rear end. A firmer bushing set holds the subframe in position, so the rear responds more directly to steering and throttle.

Installation is rated difficult, with about 4 hours of work listed. An alignment is required after installation. To go with it on the 300C, see Front and Rear Sway Bar Kit, Rear Trailing Arm Lower Front Bushing, and Front Lower Radius Arm Bushing.

Features

  • Install guide: Written install instructions are included with the part.
  • Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Finish: The metal parts are powder coated for durability.
  • Corrosion protection: Plated finish keeps rust off the hardware.
Specifications
Part Number W93343
Part Name Subframe Mount Bushing
Vehicle 2005-2023 Chrysler 300C Base, Limited
Drivetrain RWD/AWD
Chassis Code LX/LD
Bushing Color Black
Bushing Material Polyurethane
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 4
Kit Contents 8 Bushings, 4 Tubes, 6 Washers, Install Guide, Grease
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005Chrysler300CRWD
2005Chrysler300CAWD
2006Chrysler300CRWD
2006Chrysler300CAWD
2007Chrysler300CRWD
2007Chrysler300CAWD
2008Chrysler300CRWD
2008Chrysler300CAWD
2009Chrysler300CRWD
2009Chrysler300CAWD
2010Chrysler300CRWD
2010Chrysler300CAWD
2011Chrysler300CRWD
2011Chrysler300CAWD
2012Chrysler300CRWD
2012Chrysler300CAWD
2013Chrysler300CRWD
2013Chrysler300CAWD
2014Chrysler300CRWD
2014Chrysler300CAWD
