Product Details

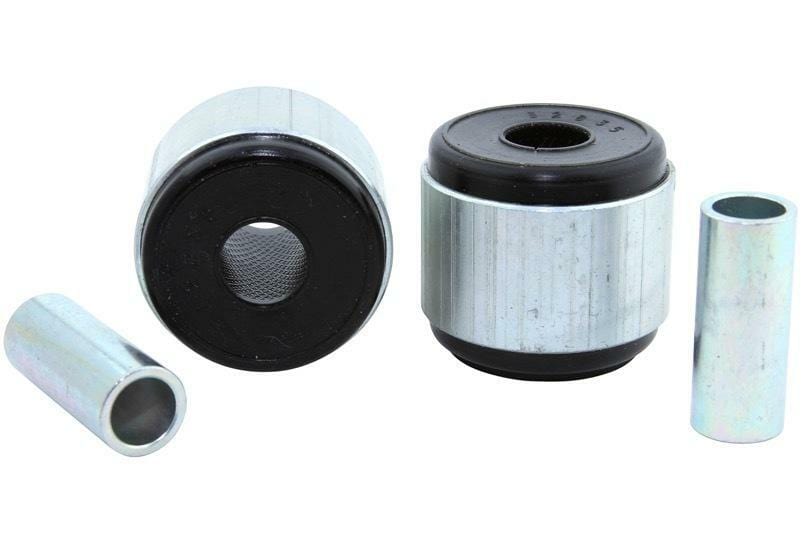

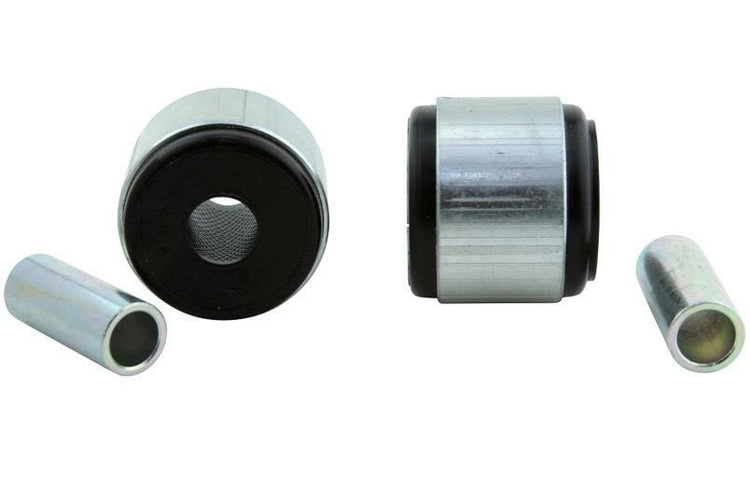

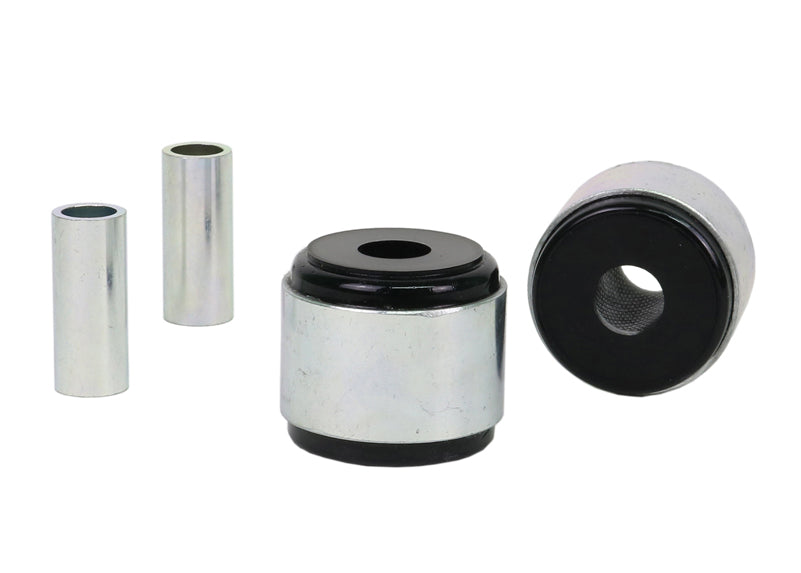

This Whiteline Rear Differential Cradle Bushing - Mount In Brace fits the 2005-2007 Subaru WRX STI Base (GD/GG). Chassis code: GD/GG. Part number W92835. Included: 2 shell bushings and 2 tubes. This part is for the rear of the vehicle.
Differential bushings take the torque reaction every time the car accelerates. When the rubber is worn or soft, the case shifts and the driveline jerks, and wheel hop becomes more likely. Stiffer bushings or inserts limit that movement. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated difficult, with about 4 hours of work listed. Plan on a wheel alignment afterward. We also list Front Control Arm Lower Inner Rear Bushing, Rear Sway Bar Link, and Front and Rear Sway Bar Kit for the WRX STI.
Features
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
- Finish: A powder coated finish resists corrosion and wear.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
- Bushing material: Made of polyurethane, which resists deflection better than soft rubber.
- Bonded design: The bushing is bonded for strength where loads are highest.
Specifications
| Part Number | W92835 |
| Part Name | Differential Cradle Bushing |
| Vehicle | 2005-2007 Subaru WRX STI Base |
| Drivetrain | AWD |
| Chassis Code | GD/GG |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Color | Black |
| Durometer | 72 |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 4 |
| Kit Contents | 2 Shell Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Universal or Specific Fit | Specific Fit |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Rear OD=55, L=47mm |
