Product Details

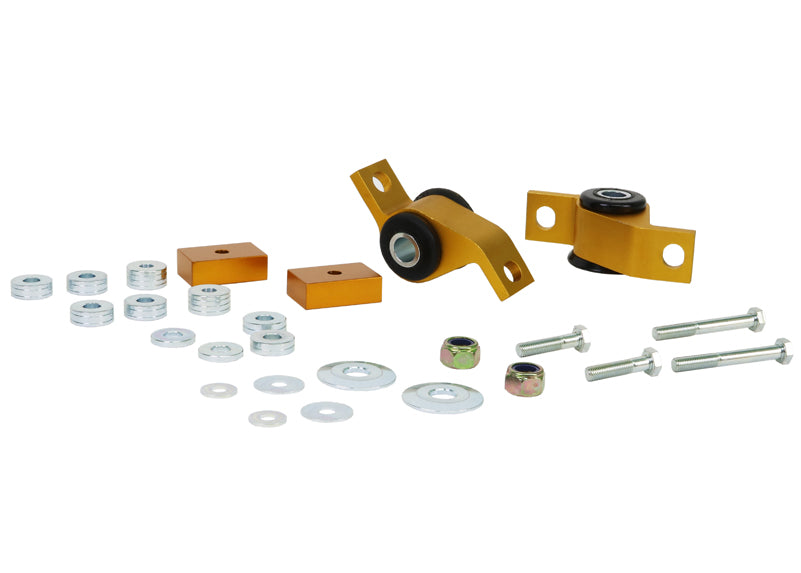

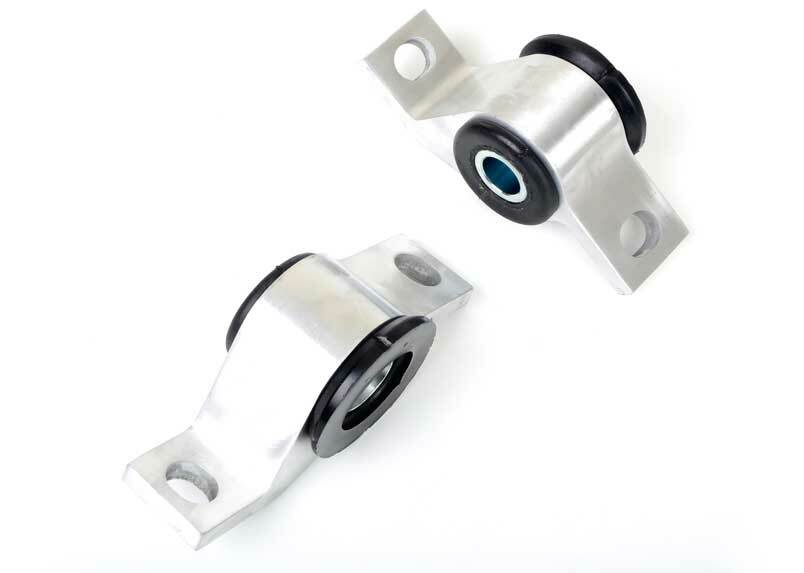

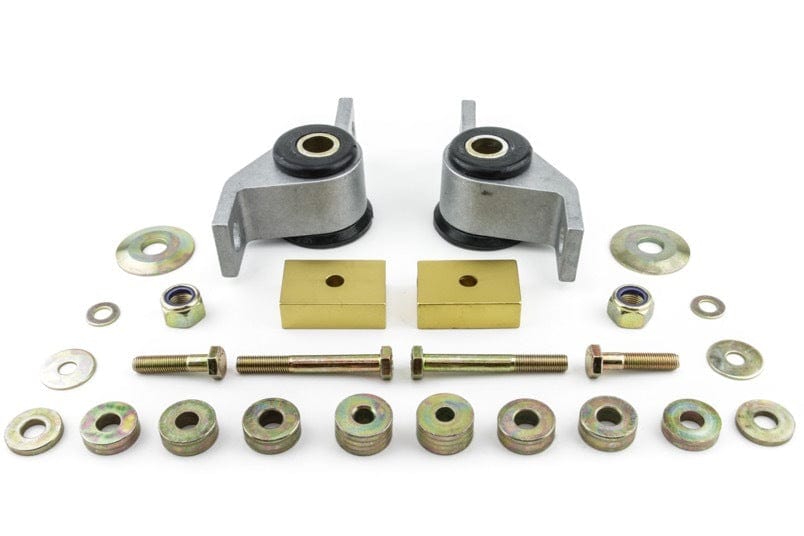

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2004-2007 Subaru WRX STI Base (GD). Application note: Adds 0.5 degrees Caster & Anti-Lift. Part number KCA359. Included: 2 housings, 12 spacers, 4 bolts, and 6 washers. This part is for the front of the vehicle.

A standard bushing only restores what the factory built. This one is designed to change the geometry, adding positive caster and changing front anti-dive behavior, in addition to resisting the deflection that soft rubber allows.

Whiteline rates the install as difficult and lists about 2.5 hours. An alignment is required after installation. We also list Front and Rear Sway Bar Kit, Front Steering Rack And Pinion Mount Bushing, and Performance Lowering Spring Kit for the WRX STI.

Features

  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Bump steer: Helps cut bump steer for steadier steering over bumps.
  • Hardware: Supplied with mounting hardware.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Install guide: Written install instructions are included with the part.
  • Caster: Caster is optimized for stable steering and good contact through roll.
Specifications
Part Number KCA359
Part Name Control Arm Bushing
Vehicle 2004-2007 Subaru WRX STI Base
Drivetrain AWD
Chassis Code GD
Bushing 1 Inner Diameter 20 mm
Bushing 1 Length 52.5 mm
Bushing 1 Outer Diameter 39.5 mm
Bushing 2 Inner Diameter 20 mm
Bushing 2 Length 52.5 mm
Bushing 2 Outer Diameter 39.5 mm
Bushing Quantity 2
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 2 Housings, 12 Spacers, 4 Bolts, 6 Washers
Material Polyurethane
Mounting Hardware Included Yes
Outside Diameter 39.5 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds 0.5 Degrees Caster & Anti-Lift

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004SubaruWRX STIAWDAdds 0.5 Degrees Caster & Anti-Lift
2005SubaruWRX STIAWDAdds 0.5 Degrees Caster & Anti-Lift
2006SubaruWRX STIAWDAdds 0.5 Degrees Caster & Anti-Lift
2007SubaruWRX STIAWDAdds 0.5 Degrees Caster & Anti-Lift
