Product Details

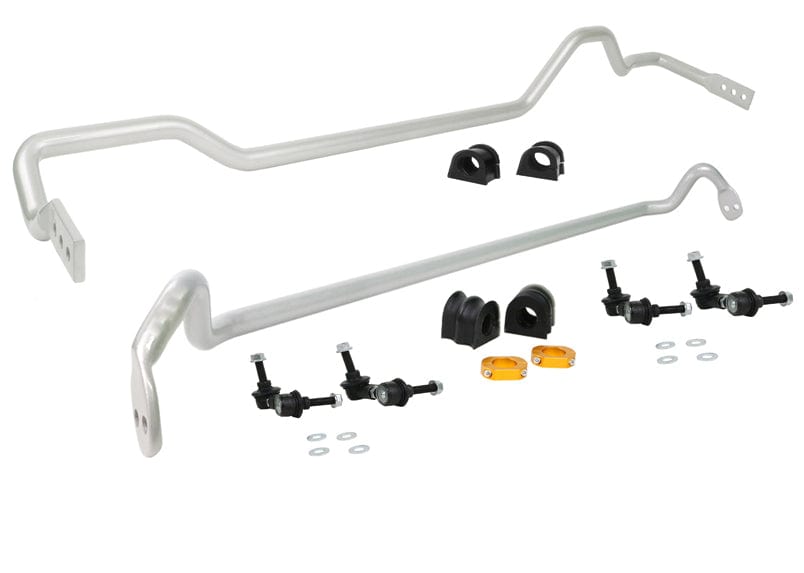

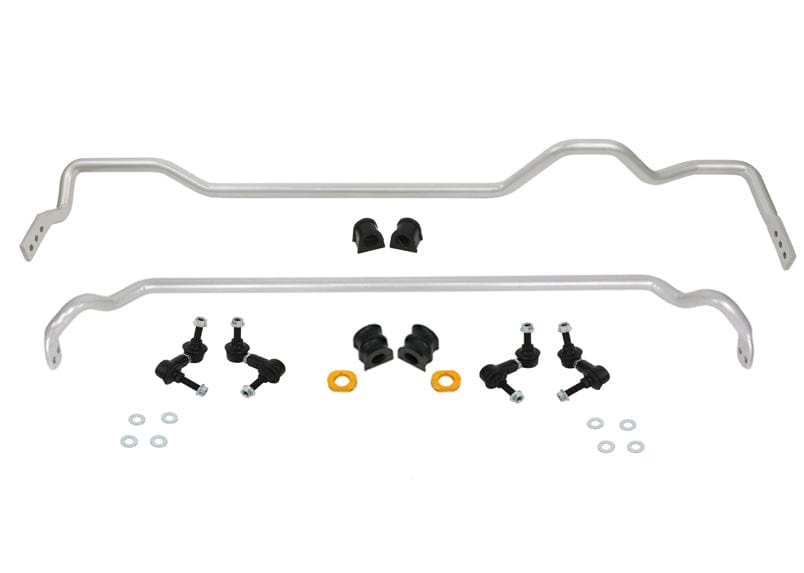

This Whiteline Front and Rear Sway Bar Kit fits the 2004-2007 Subaru WRX STI Base (GD/GG). Order it as part number BSK010. This part is for the front and rear of the vehicle. The kit contains 2 sway bars, 4 links, 4 bushings, 2 lateral locks, and 8 washers. Whiteline's note for this fit: Contains BSF33Z, BSR37Z and KLC139 x 2.

Body roll shifts load onto the outside tires, and a sway bar is the most direct way to limit it. Fitting stiffer bars at both ends keeps the platform flatter through a corner and lets the car turn in with less lean, and having a front and rear pair designed to work together keeps the balance predictable. Adjustable mounting points let you step the stiffness up or down without changing the bar.

Installation is rated moderate, with about 2 hours of work listed. No alignment is needed afterward. Other Whiteline parts we list for the WRX STI: Front Steering Rack And Pinion Mount Bushing, Performance Lowering Spring Kit, and Front Control Arm Lower Inner Rear Bushing.

Features

  • Install guide: Whiteline packs an install guide with it.
  • Bar mounts: Mount bushings use an internally knurled bore and grease retention lips for lasting lubrication.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Rigid design: A stiffer design than the factory part gives a more immediate response.
  • PTFE lined: PTFE lining gives a very low friction surface and removes the need to grease.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
Specifications
Part Number BSK010
Part Name Sway Bars
Vehicle 2004-2007 Subaru WRX STI Base
Drivetrain AWD
Chassis Code GD/GG
Bushing Material Polyurethane
Sway Bar Adjustable - Front Yes
Sway Bar Diameter - Front 22 mm
Sway Bar Included - Front Yes
Sway Bar Links Included - Front Yes
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 2 Sway Bars, 4 Links, 4 Bushings, 2 Lateral Locks, 8 Washers
Sway Bar Adjustable - Rear Yes
Sway Bar Diameter - Rear 22 mm
Sway Bar Included - Rear Yes
Sway Bar Links Included - Rear Yes
Wheel Alignment Required No
Notes Contains BSF33Z, BSR37Z and KLC139 x 2

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004SubaruWRX STIAWDContains BSF33Z, BSR37Z and KLC139 x 2
2005SubaruWRX STIAWDContains BSF33Z, BSR37Z and KLC139 x 2
2006SubaruWRX STIAWDContains BSF33Z, BSR37Z and KLC139 x 2
2007SubaruWRX STIAWDContains BSF33Z, BSR37Z and KLC139 x 2
