Product Details

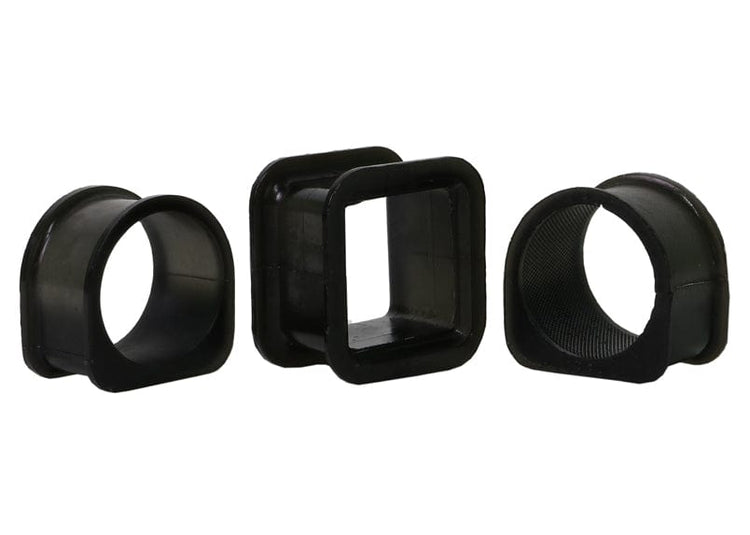

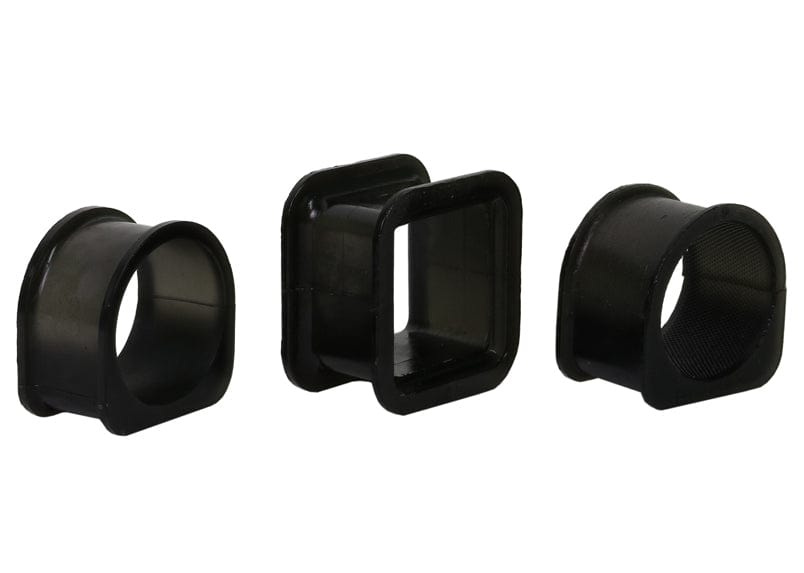

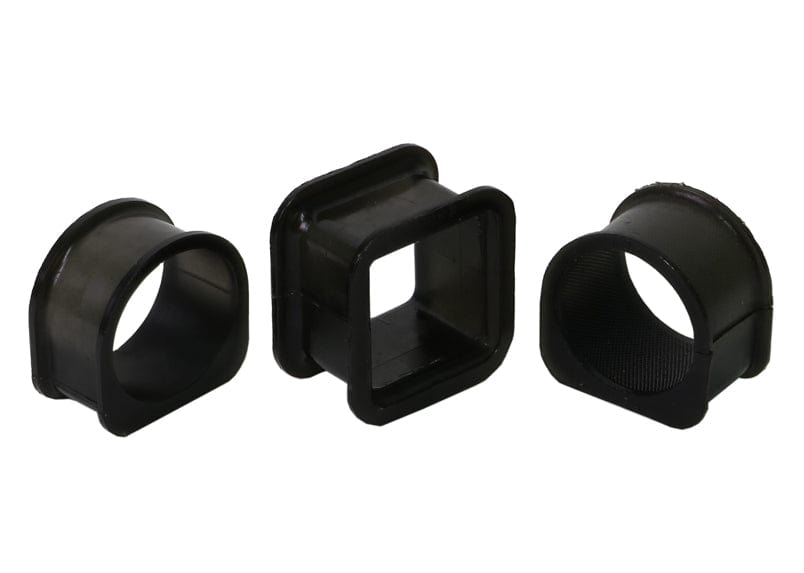

This Whiteline Front Steering Rack And Pinion Mount Bushing fits the 2004 Subaru WRX STI Base (GD/GG). Order it as part number KSR202. In the box: 3 bushings and an install guide. This part is for the front of the vehicle.

Wide tires, lower profiles, and sharper alignment settings load the steering rack harder than the original design expected, and the rubber bushings holding it in place are not always up to the extra work. Firmer mounts hold the rack more steadily, so steering input reaches the wheels with less lost motion.

Expect a moderate job of about 2 hours. Get the car aligned once it is back on the ground. To go with it on the WRX STI, see Front and Rear Sway Bar Kit, Performance Lowering Spring Kit, and Front Control Arm Lower Inner Rear Bushing.

Features

  • Install guide: Whiteline packs an install guide with it.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Bushing material: Made of polyurethane, which resists deflection better than soft rubber.
Specifications
Part Number KSR202
Part Name Steering Rack Mount Bushing Kit
Vehicle 2004 Subaru WRX STI Base
Drivetrain AWD
Chassis Code GD/GG
Bushing Color Black
Bushing Material Polyurethane
Color Black
Durometer 85
Grade Type Performance
Grade Type Improved Design
Grade Type OEM Performance
Grade Type Premium
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 3 Bushings, Install Guide
Material Polyurethane
Universal or Specific Fit Specific Fit
Wheel Alignment Required Yes
Notes Includes both 25mm & 30mm wide passenger side bracket bushings

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004SubaruWRX STIAWDIncludes both 25mm & 30mm wide passenger side bracket bushings
