Product Details

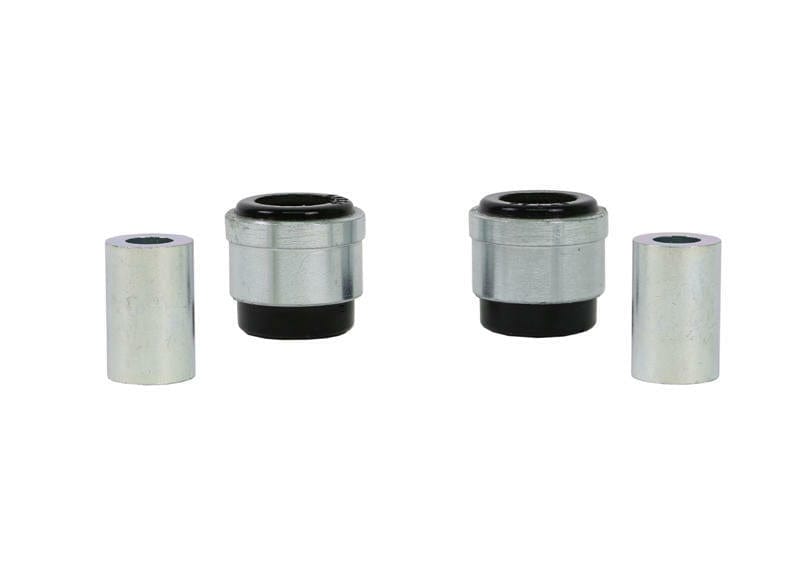

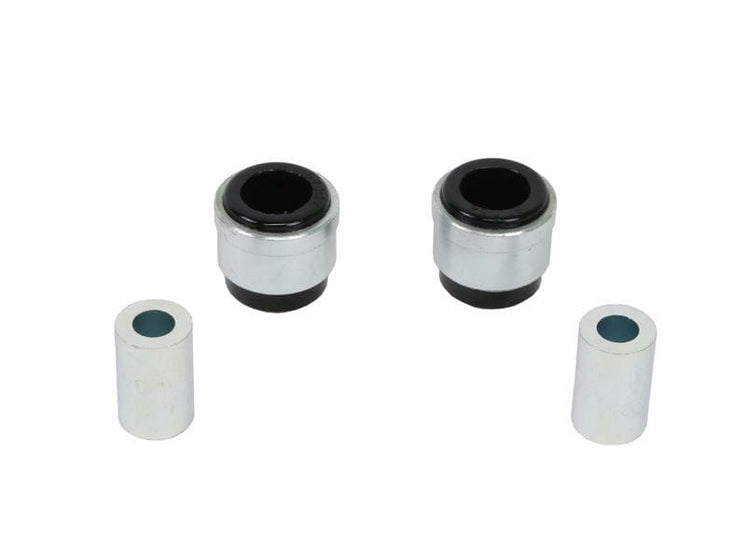

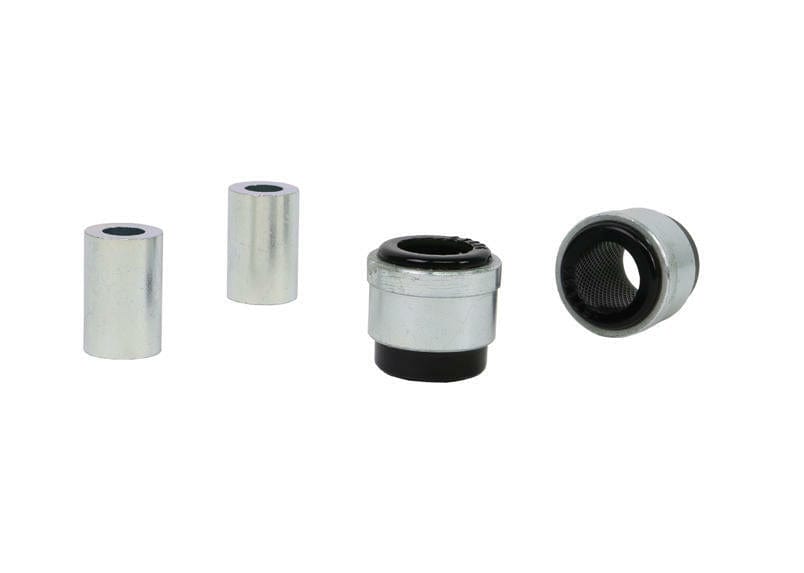

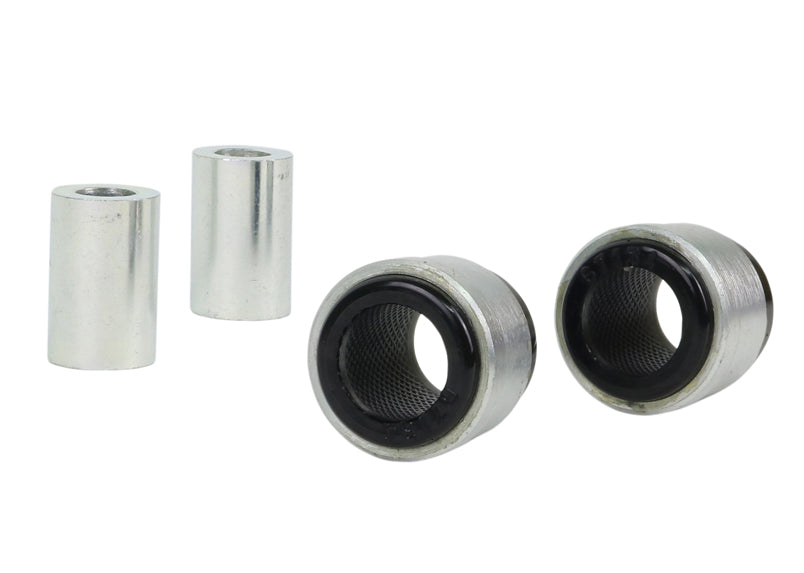

This Whiteline Rear Upper Inner Control Arm Bushing (Standard Repl.) fits the 2004-2005 Volvo S40 i (P1). Application note: Standard Replacement: suits cast arms. Included: 2 shell bushings and 2 tubes. Position: rear. Whiteline part number: W63322.

A fresh control arm bushing is one of the more cost-effective ways to bring a tired suspension back. It swaps the worn factory part for one that holds the arm steady again while keeping the ride close to stock.

Installation is rated moderate, with about 3 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the Volvo S40, see Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Rear Bushing, and Adjustable Front Sway Bar Link.

Features

  • Material: Built from polyurethane.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Bonded design: The bushing is bonded for strength where loads are highest.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
Specifications
Part Number W63322
Part Name Control Arm Bushing
Vehicle 2004-2005 Volvo S40 i
Drivetrain FWD/AWD
Chassis Code P1
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 38 mm
Bushing 2 Outer Diameter 36 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Standard Replacement - suits cast arms

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004VolvoS40FWDStandard Replacement - suits cast arms
2004VolvoS40AWDStandard Replacement - suits cast arms
2005VolvoS40FWDStandard Replacement - suits cast arms
2005VolvoS40AWDStandard Replacement - suits cast arms
