Product Details

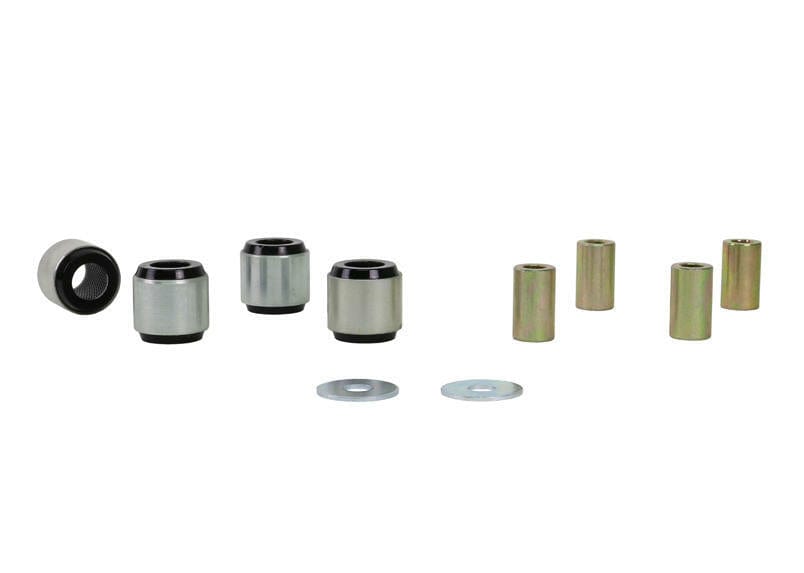

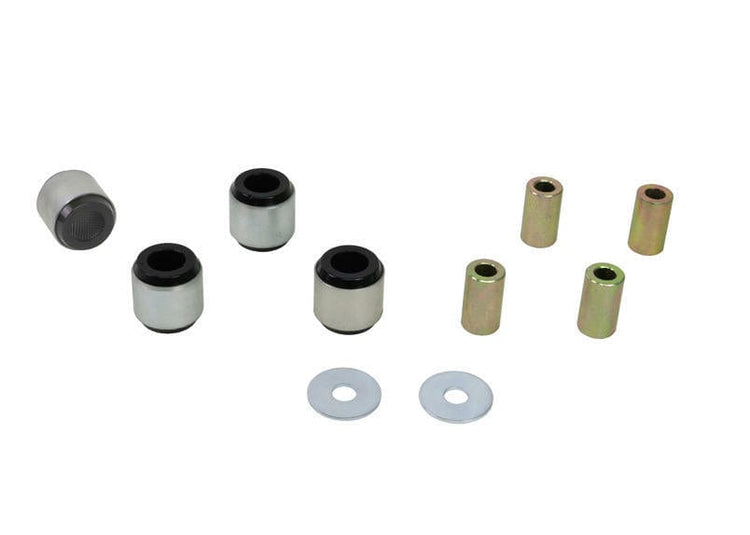

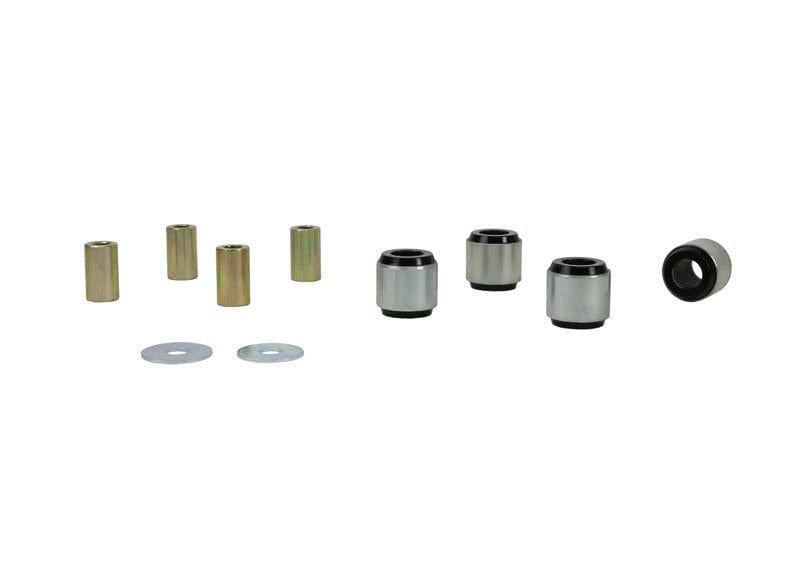

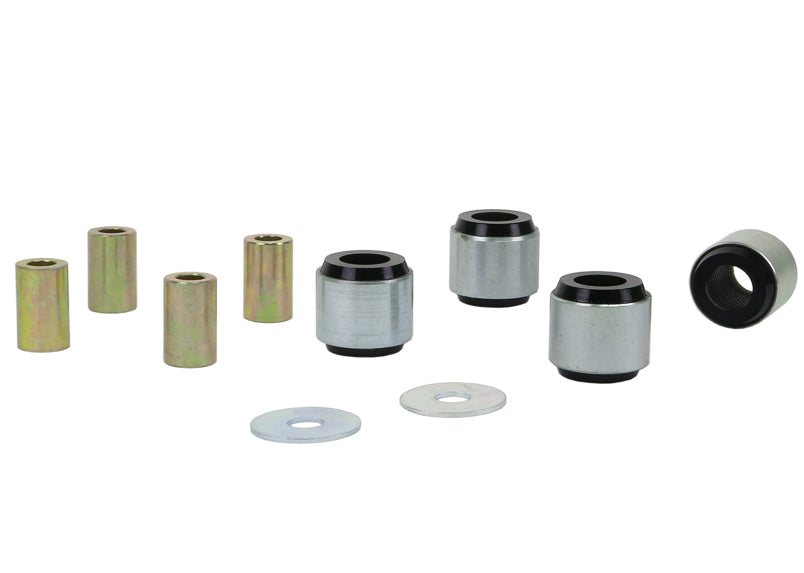

This Whiteline Rear Control Arm Upper Front Bushing (Standard Repl.) fits the 2008-2009 Chrysler 300C LX (LX). Order it as part number W63340. You receive 4 shell bushings, 4 tubes, and 2 washers. Whiteline's note for this fit: Standard Replacements. Qty 2 needed per vehicle. Placement: rear.

A fresh control arm bushing is one of the more cost-effective ways to bring a tired suspension back. It swaps the worn factory part for one that holds the arm steady again while keeping the ride close to stock.

Installation is rated moderate, with about 3 hours of work listed. Plan on a wheel alignment afterward. We also list Front and Rear Sway Bar Kit, Rear Subframe Mount Bushing, and Front Lower Radius Arm Bushing for the 300C.

Features

  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Finish: The metal parts are powder coated for durability.
  • Install guide: Whiteline packs an install guide with it.
  • Bonded design: The bushing is bonded for strength where loads are highest.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
Specifications
Part Number W63340
Part Name Control Arm Bushing
Vehicle 2008-2009 Chrysler 300C LX
Drivetrain RWD/AWD
Chassis Code LX
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 39.5 mm
Bushing Quantity 4 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Shell Bushings, 4 Tubes, 2 Washers
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Standard Replacements. Qty 2 needed per vehicle.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008Chrysler300CRWDStandard Replacements. Qty 2 needed per vehicle.
2008Chrysler300CAWDStandard Replacements. Qty 2 needed per vehicle.
2009Chrysler300CRWDStandard Replacements. Qty 2 needed per vehicle.
2009Chrysler300CAWDStandard Replacements. Qty 2 needed per vehicle.
