Product Details

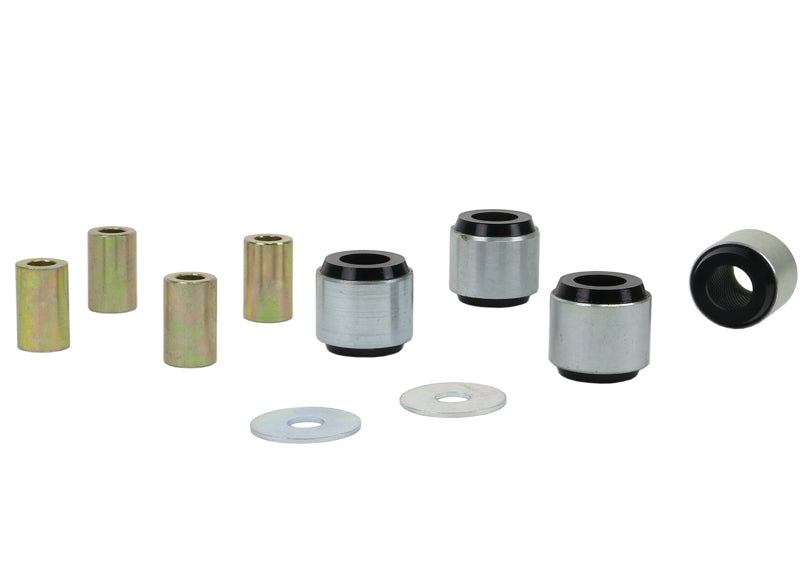

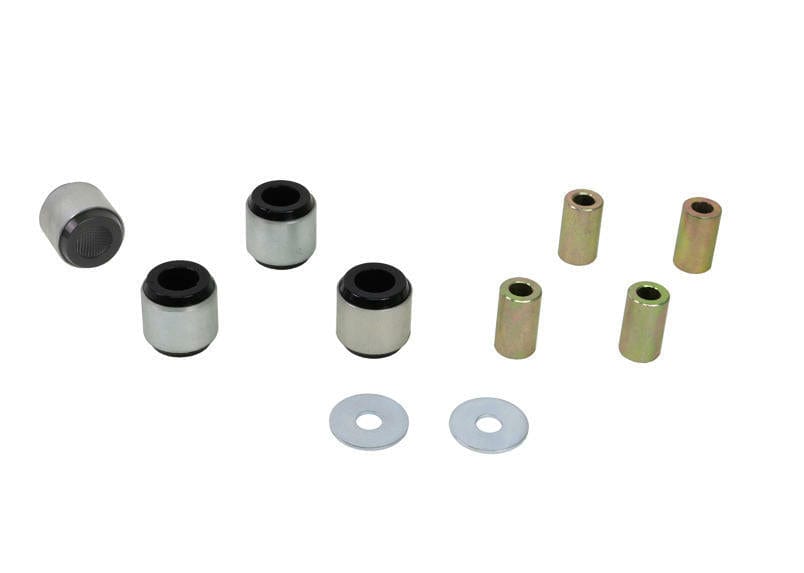

This Whiteline Rear Control Arm Upper Front Bushing (Standard Repl.) fits the 2005-2007 Chrysler 300C Base (LX). Whiteline's note for this fit: Standard Replacements. Qty 2 needed per vehicle. Whiteline part number: W63340. Position: rear. In the box: 4 shell bushings, 4 tubes, and 2 washers.

Control arm bushings wear out quietly. Over time the rubber hardens, cracks, or tears, and the arm starts to move in ways its designers did not intend, which shows up as clunks, vague steering, or uneven tire wear. A standard replacement bushing puts the pivot back to the way the car was built.

Expect a moderate job of about 3 hours. An alignment is required after installation. To go with it on the 300C, see Front and Rear Sway Bar Kit, Rear Subframe Mount Bushing, and Front Lower Radius Arm Bushing.

Features

  • Install guide: Whiteline packs an install guide with it.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Material: The part is made of polyurethane.
Specifications
Part Number W63340
Part Name Control Arm Bushing
Vehicle 2005-2007 Chrysler 300C Base
Drivetrain RWD/AWD
Chassis Code LX
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 39.5 mm
Bushing Quantity 4 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Shell Bushings, 4 Tubes, 2 Washers
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Standard Replacements. Qty 2 needed per vehicle.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005Chrysler300CRWDStandard Replacements. Qty 2 needed per vehicle.
2005Chrysler300CAWDStandard Replacements. Qty 2 needed per vehicle.
2006Chrysler300CRWDStandard Replacements. Qty 2 needed per vehicle.
2006Chrysler300CAWDStandard Replacements. Qty 2 needed per vehicle.
2007Chrysler300CRWDStandard Replacements. Qty 2 needed per vehicle.
2007Chrysler300CAWDStandard Replacements. Qty 2 needed per vehicle.
