Product Details

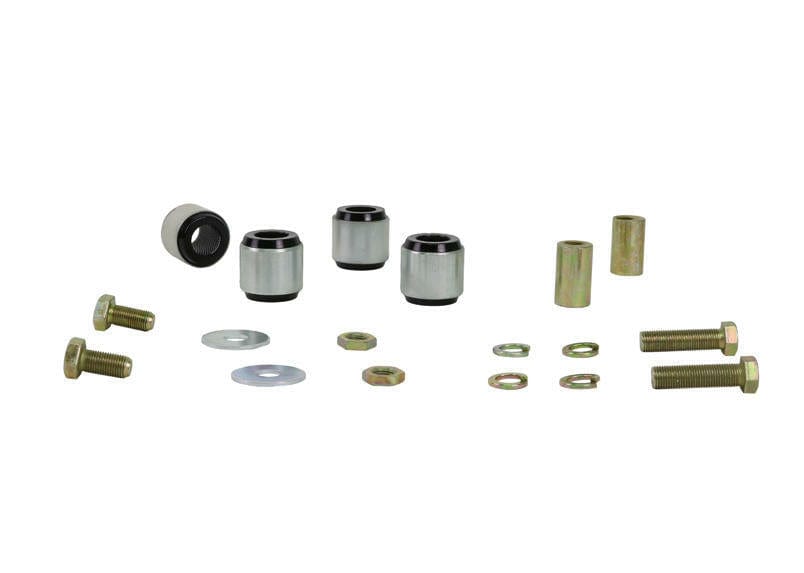

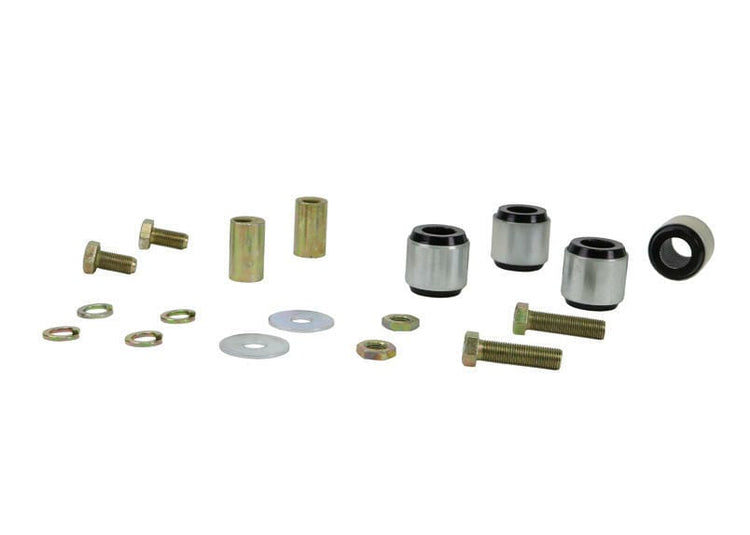

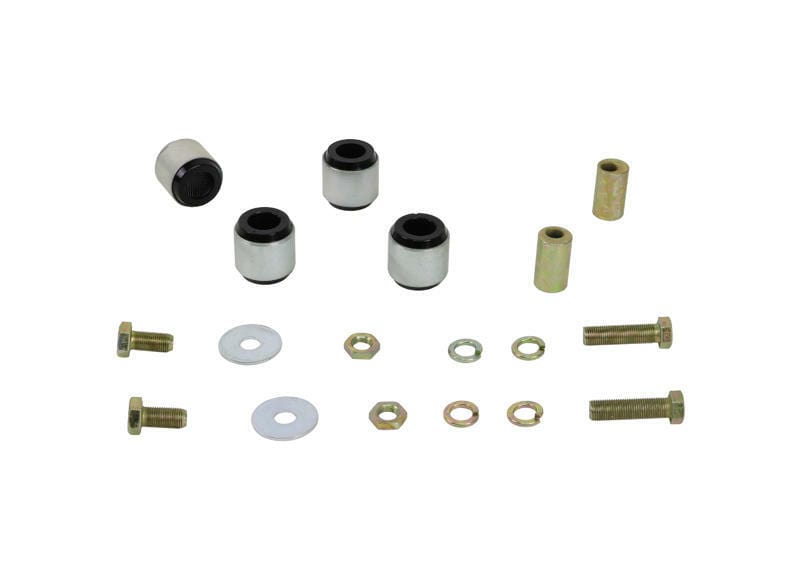

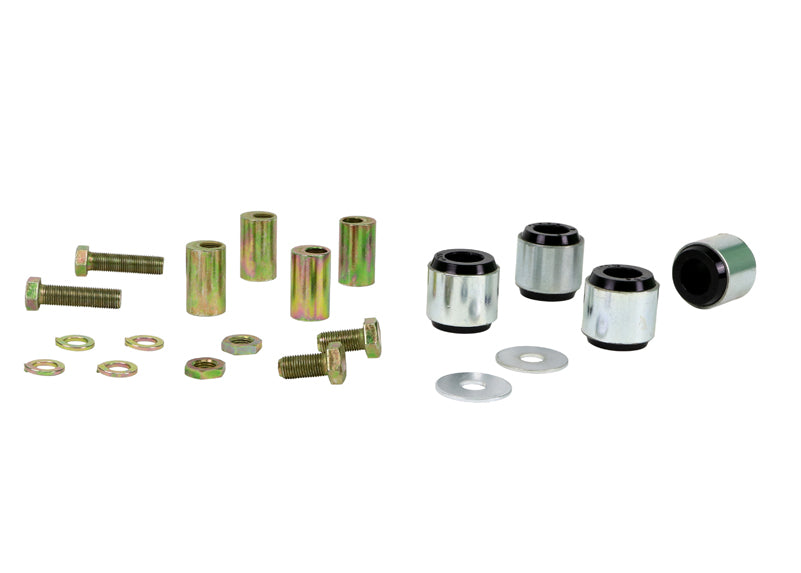

This Whiteline Rear Control Arm Upper Front Bushing fits the 2009 Chrysler 300C Signature Series (LX). Application note: Adds +/- 0.5 degrees Camber. Qty 2 needed per vehicle. Position: rear. Order it as part number W63342. The kit contains 4 shell bushings and 4 tubes.

Lowering a car or fitting wider tires can push camber out of the range an alignment shop can correct with factory parts. This offset bushing moves the arm's pivot point to give the technician more to work with, while also replacing the soft rubber that was there.

Expect a moderate job of about 3 hours. Get the car aligned once it is back on the ground. We also list Rear Subframe Mount Bushing, Front and Rear Sway Bar Kit, and Front Lower Radius Arm Bushing for the 300C.

Features

  • Bonded design: The bushing is bonded for extra strength under heavy loads.
  • Install guide: An install guide comes in the box.
  • Finish: A powder coated finish resists corrosion and wear.
  • Camber adjustment: Helps keep camber in range so the tire holds its footprint through a corner.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
Specifications
Part Number W63342
Part Name Control Arm Bushing
Vehicle 2009 Chrysler 300C Signature Series
Drivetrain RWD/AWD
Chassis Code LX
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 39.5 mm
Bushing 2 Inner Diameter 12.2 mm
Bushing Quantity 4 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Shell Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Adds +/- 0.5Degree Camber. Qty 2 needed per vehicle.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009Chrysler300CRWDAdds +/- 0.5Degree Camber. Qty 2 needed per vehicle.
2009Chrysler300CAWDAdds +/- 0.5Degree Camber. Qty 2 needed per vehicle.
