Product Details

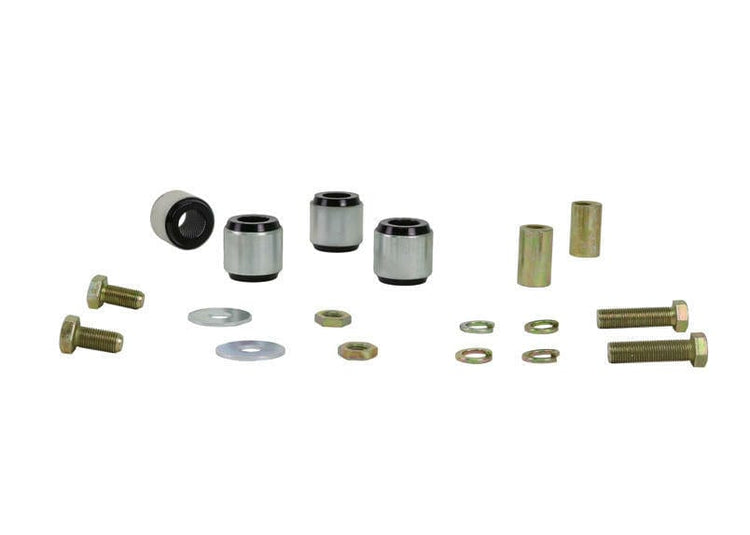

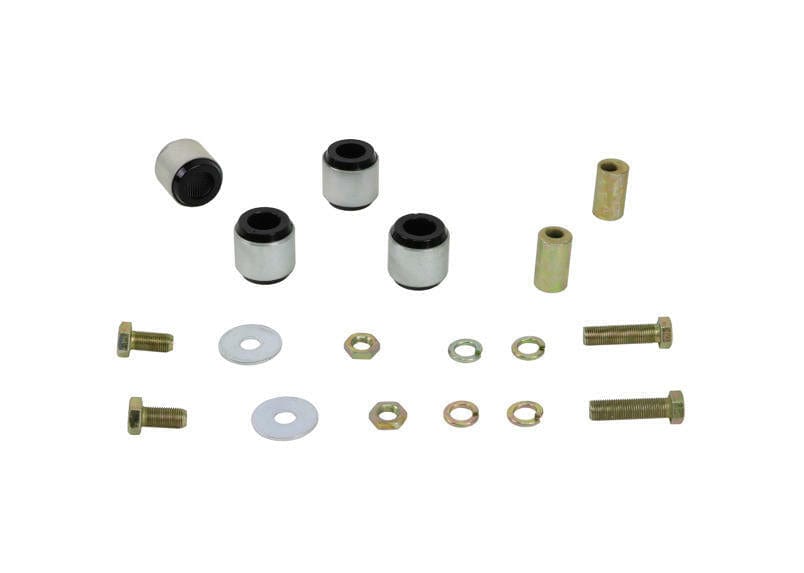

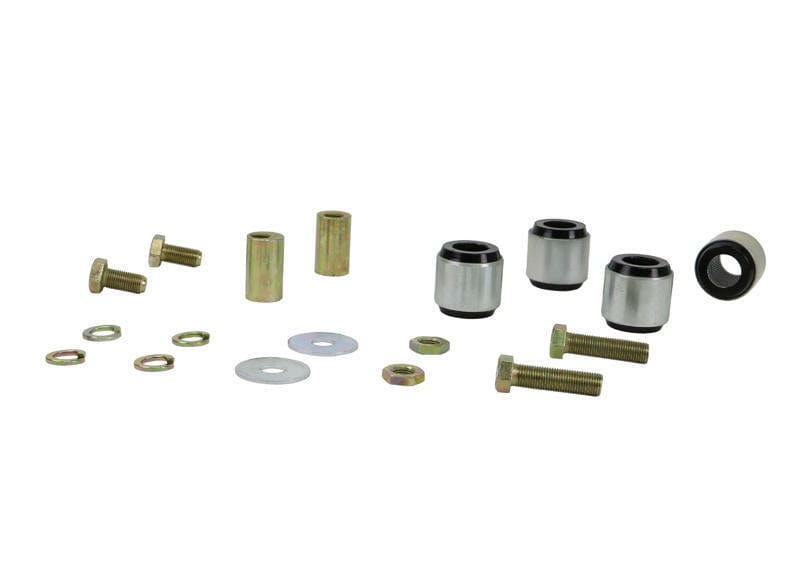

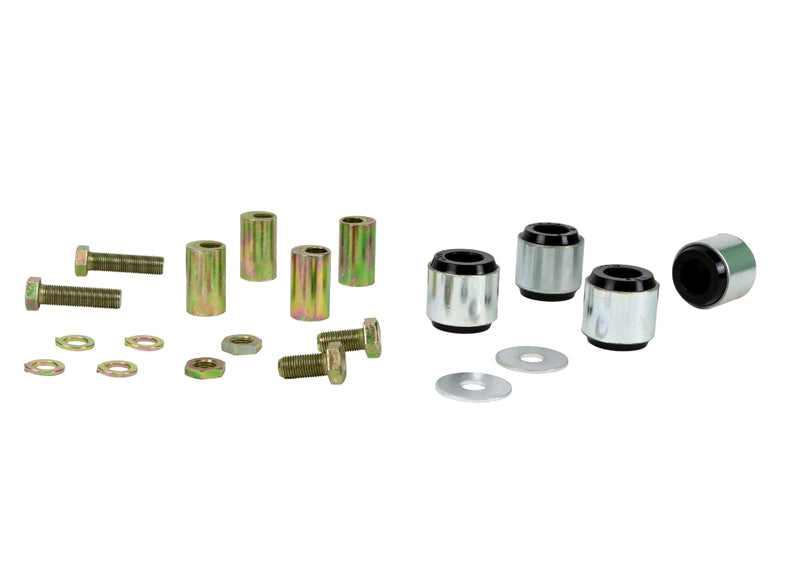

This Whiteline Rear Control Arm Upper Front Bushing fits the 2008-2009 Chrysler 300C LX (LX). Part number W63342. Application note: Adds +/- 0.5 degrees Camber. Qty 2 needed per vehicle. The kit contains 4 shell bushings and 4 tubes. Placement: rear.

Camber is the sideways lean of the wheel when viewed from the front. An offset control arm bushing places the pivot slightly off-center, which shifts the wheel's camber by a small, fixed amount without replacing the arm. On a lowered car that is often enough to bring the tires back toward an even footprint.

Expect a moderate job of about 3 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the 300C: Rear Subframe Mount Bushing, Front and Rear Sway Bar Kit, and Front Lower Radius Arm Bushing.

Features

  • Bonded design: A bonded design adds strength for high load applications.
  • Install guide: Written install instructions are included with the part.
  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Camber adjustment: Helps hold the tire flatter on the road by correcting camber changes through roll.
  • Corrosion protection: Plated finish keeps rust off the hardware.
  • Material: Built from polyurethane.
Specifications
Part Number W63342
Part Name Control Arm Bushing
Vehicle 2008-2009 Chrysler 300C LX
Drivetrain RWD/AWD
Chassis Code LX
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 39.5 mm
Bushing 2 Inner Diameter 12.2 mm
Bushing Quantity 4 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Shell Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Adds +/- 0.5Degree Camber. Qty 2 needed per vehicle.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008Chrysler300CRWDAdds +/- 0.5Degree Camber. Qty 2 needed per vehicle.
2008Chrysler300CAWDAdds +/- 0.5Degree Camber. Qty 2 needed per vehicle.
2009Chrysler300CRWDAdds +/- 0.5Degree Camber. Qty 2 needed per vehicle.
2009Chrysler300CAWDAdds +/- 0.5Degree Camber. Qty 2 needed per vehicle.
