Product Details

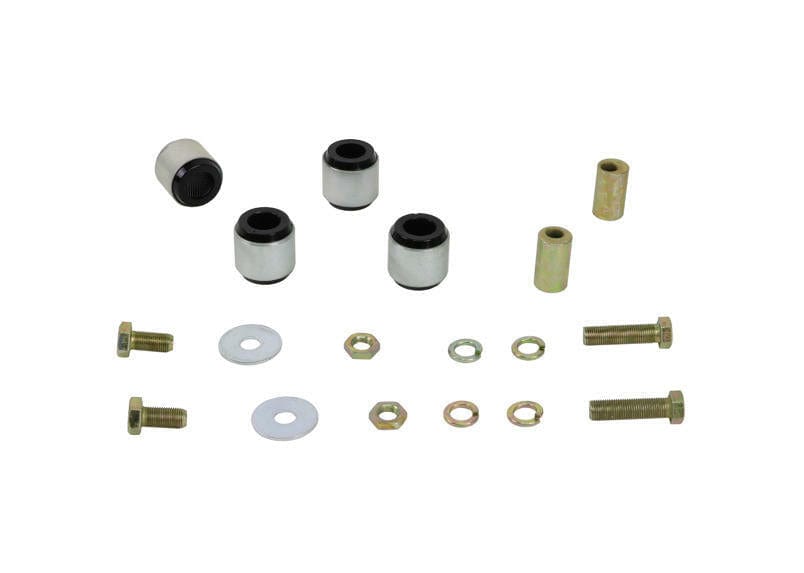

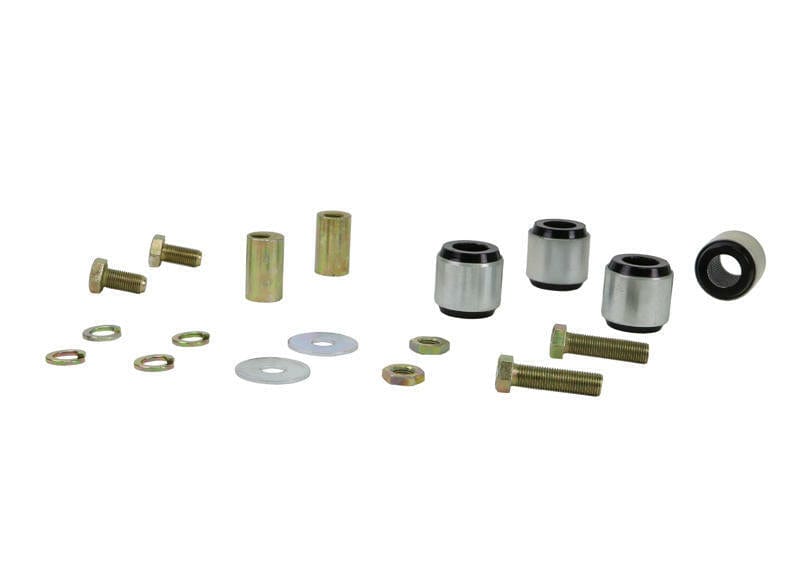

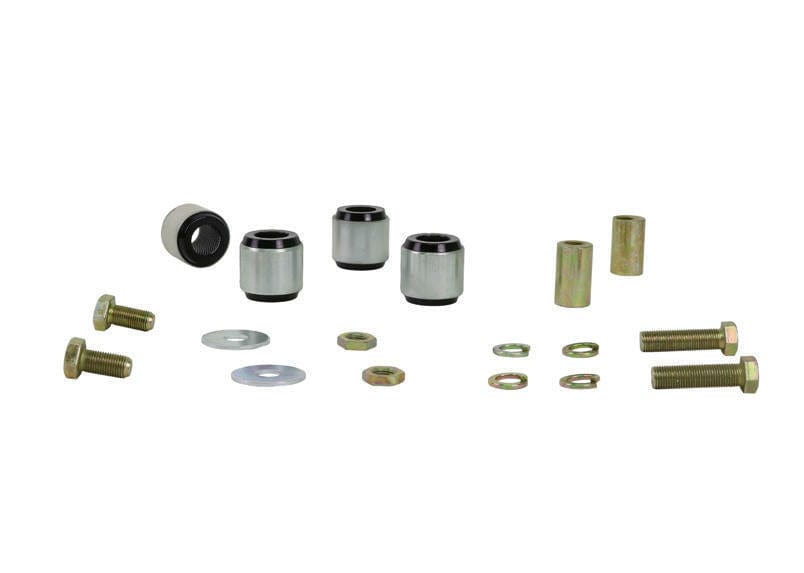

This Whiteline Rear Control Arm Upper Front Bushing fits the 2005-2014 Chrysler 300C Base (LX/LD). Whiteline's note for this fit: Adds +/- 0.5 degrees Camber. Qty 2 needed per vehicle. Placement: rear. Part number W63342. Included: 4 shell bushings and 4 tubes.
Most factory control arm bushings are centered and fixed. An offset one is built so the arm sits at a slightly different angle, which changes camber, and the firmer material stops that setting drifting under load.
Expect a moderate job of about 3 hours. An alignment is required after installation. To go with it on the 300C, see Rear Subframe Mount Bushing, Front and Rear Sway Bar Kit, and Front Lower Radius Arm Bushing.
Features
- Material: Made from polyurethane.
- Corrosion protection: Plated finish keeps rust off the hardware.
- Install guide: Whiteline packs an install guide with it.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Bonded design: A bonded design adds strength for high load applications.
Specifications
| Part Number | W63342 |
| Part Name | Control Arm Bushing |
| Vehicle | 2005-2014 Chrysler 300C Base |
| Drivetrain | RWD/AWD |
| Chassis Code | LX/LD |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 39.5 mm |
| Bushing 2 Inner Diameter | 12.2 mm |
| Bushing Quantity | 4 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 4 Shell Bushings, 4 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Adds +/- 0.5Degree Camber. Qty 2 needed per vehicle. |
