Product Details

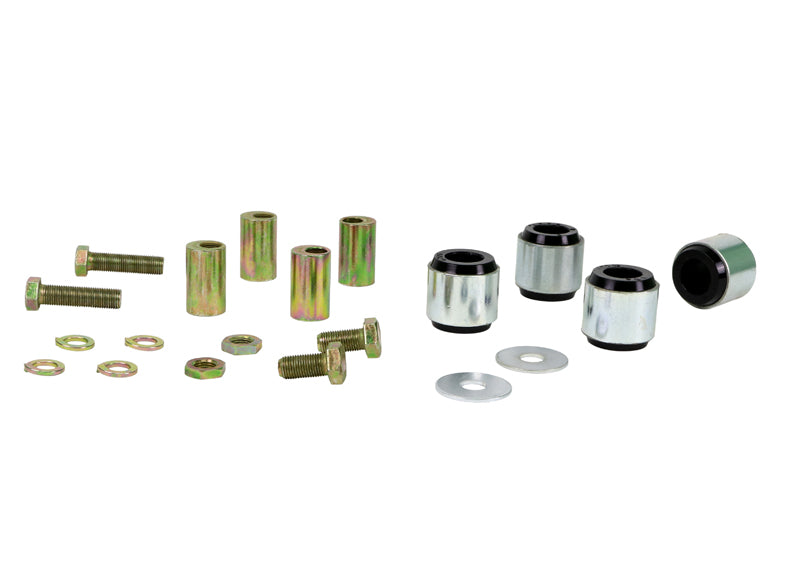

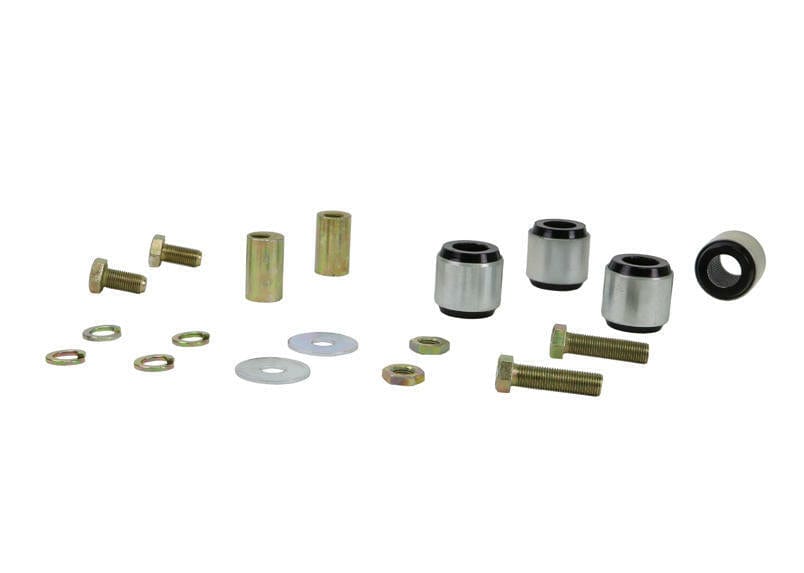

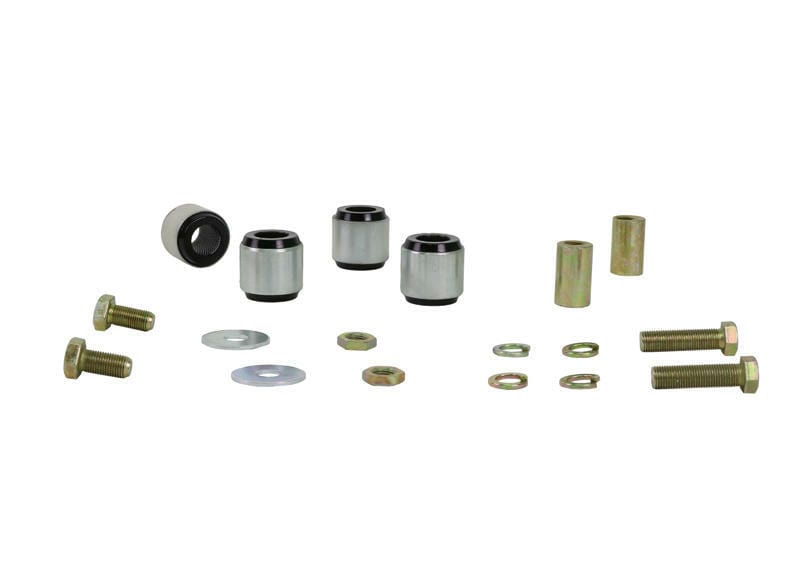

This Whiteline Rear Control Arm Upper Front Bushing fits the 2005-2011 Chrysler 300C Touring (LX). Placement: rear. The kit contains 4 shell bushings and 4 tubes. Whiteline's note for this fit: Adds +/- 0.5 degrees Camber. Qty 2 needed per vehicle. Part number W63342.
Most factory control arm bushings are centered and fixed. An offset one is built so the arm sits at a slightly different angle, which changes camber, and the firmer material stops that setting drifting under load.
Installation is rated moderate, with about 3 hours of work listed. An alignment is required after installation. We also list Rear Subframe Mount Bushing, Front and Rear Sway Bar Kit, and Front Lower Radius Arm Bushing for the 300C.
Features
- Finish: The metal parts are powder coated for durability.
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Camber adjustment: Helps hold the tire flatter on the road by correcting camber changes through roll.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Material: The part is made of polyurethane.
- Corrosion protection: The hardware is plated to stand up to road conditions.
Specifications
| Part Number | W63342 |
| Part Name | Control Arm Bushing |
| Vehicle | 2005-2011 Chrysler 300C Touring |
| Drivetrain | RWD/AWD |
| Chassis Code | LX |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 39.5 mm |
| Bushing 2 Inner Diameter | 12.2 mm |
| Bushing Quantity | 4 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 4 Shell Bushings, 4 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Adds +/- 0.5Degree Camber. Qty 2 needed per vehicle. |
