Product Details

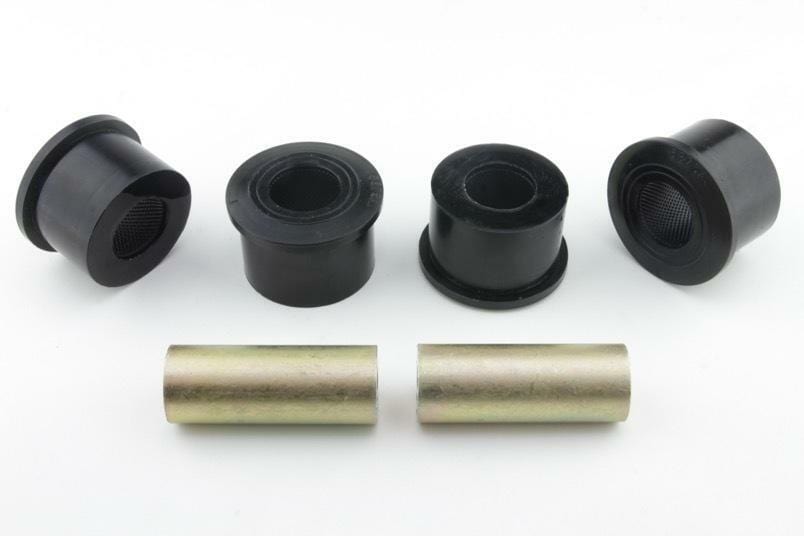

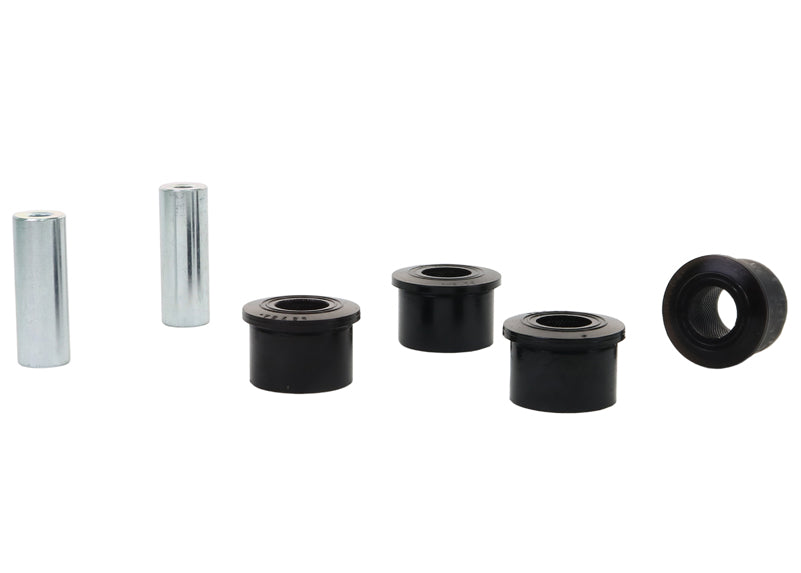

This Whiteline Rear Control Arm Lower Inner Bushing fits the 2005-2010 Chrysler 300C Base (LX). Whiteline part number: W63339. Included: 4 bushings and 2 tubes. Position: rear. Whiteline's note for this fit: Suits inner mounting point only as outer is a spherical/rose joint.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. The polyurethane used here deflects much less than the original rubber under the same load.

Whiteline rates the install as moderate and lists about 3 hours. Plan on a wheel alignment afterward. To go with it on the 300C, see Rear Subframe Mount Bushing, Front and Rear Sway Bar Kit, and Front Lower Radius Arm Bushing.

Features

  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Finish: The metal parts are powder coated for durability.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Material: Polyurethane construction.
Specifications
Part Number W63339
Part Name Control Arm Bushing
Vehicle 2005-2010 Chrysler 300C Base
Drivetrain RWD/AWD
Chassis Code LX
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 51.5 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Suits inner mounting point only as outer is a spherical/rose joint

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005Chrysler300CRWDSuits inner mounting point only as outer is a spherical/rose joint
2005Chrysler300CAWDSuits inner mounting point only as outer is a spherical/rose joint
2006Chrysler300CRWDSuits inner mounting point only as outer is a spherical/rose joint
2006Chrysler300CAWDSuits inner mounting point only as outer is a spherical/rose joint
2007Chrysler300CRWDSuits inner mounting point only as outer is a spherical/rose joint
2007Chrysler300CAWDSuits inner mounting point only as outer is a spherical/rose joint
2008Chrysler300CRWDSuits inner mounting point only as outer is a spherical/rose joint
2008Chrysler300CAWDSuits inner mounting point only as outer is a spherical/rose joint
2009Chrysler300CRWDSuits inner mounting point only as outer is a spherical/rose joint
2009Chrysler300CAWDSuits inner mounting point only as outer is a spherical/rose joint
2010Chrysler300CRWDSuits inner mounting point only as outer is a spherical/rose joint
2010Chrysler300CAWDSuits inner mounting point only as outer is a spherical/rose joint
