Product Details

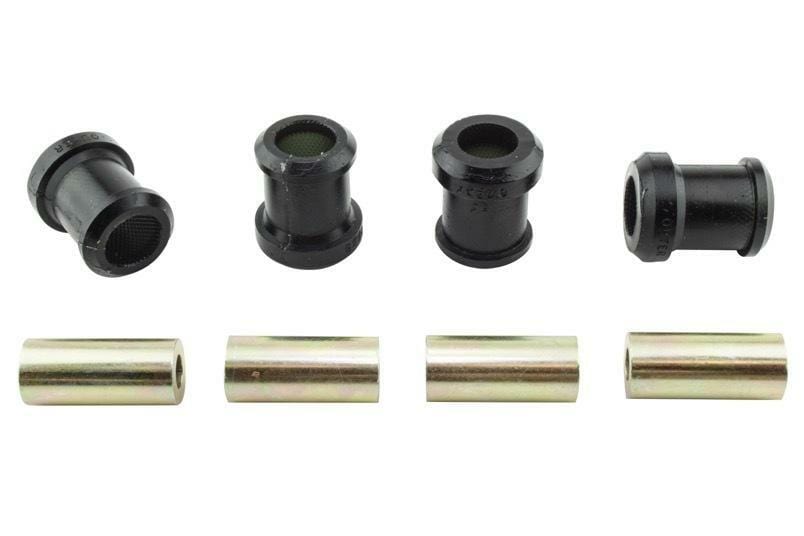

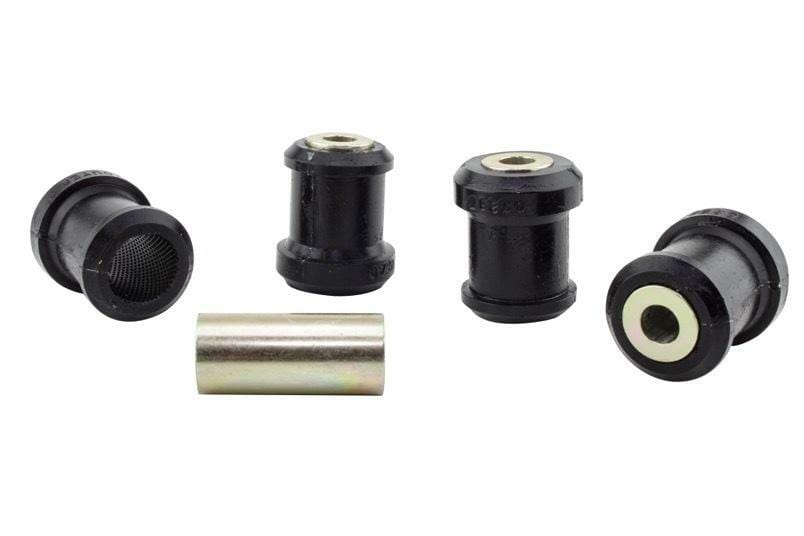

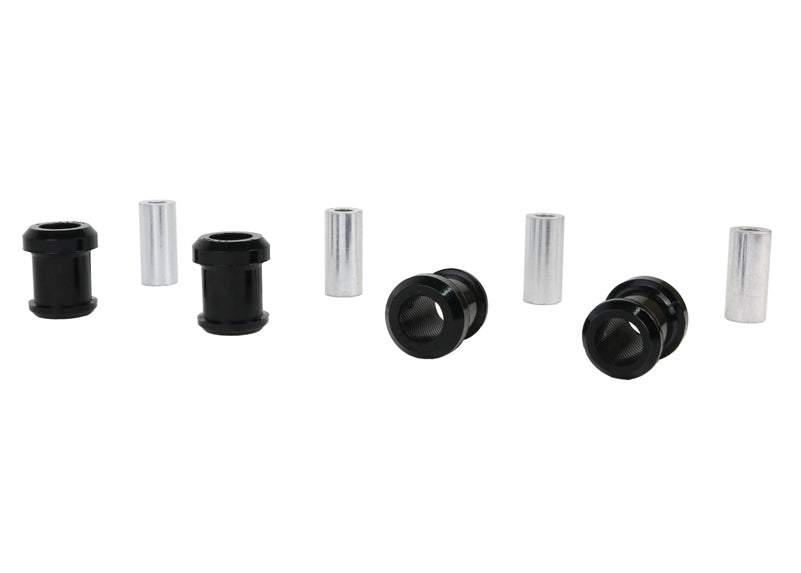

This Whiteline Front Upper Control Arm Bushing Kit (Standard Repl.) fits the 2004-2007 Mazda RX-8 Base (SE3P). Application note: Standard Replacement. Position: front. The part number is W53415. You receive 4 bushings and 4 tubes.

Control arm bushings wear out quietly. Over time the rubber hardens, cracks, or tears, and the arm starts to move in ways its designers did not intend, which shows up as clunks, vague steering, or uneven tire wear. A standard replacement bushing puts the pivot back to the way the car was built.

Expect a moderate job of about 3 hours. Plan on a wheel alignment afterward. Other Whiteline parts we list for the RX-8: Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Finish: A powder coated finish resists corrosion and wear.
  • Corrosion protection: Plated finish keeps rust off the hardware.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Material: The part is made of polyurethane.
Specifications
Part Number W53415
Part Name Control Arm Bushing
Vehicle 2004-2007 Mazda RX-8 Base
Chassis Code SE3P
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 33.1 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Standard Replacement

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004MazdaRX-8RWDStandard Replacement
2005MazdaRX-8RWDStandard Replacement
2006MazdaRX-8RWDStandard Replacement
2007MazdaRX-8RWDStandard Replacement
