Product Details

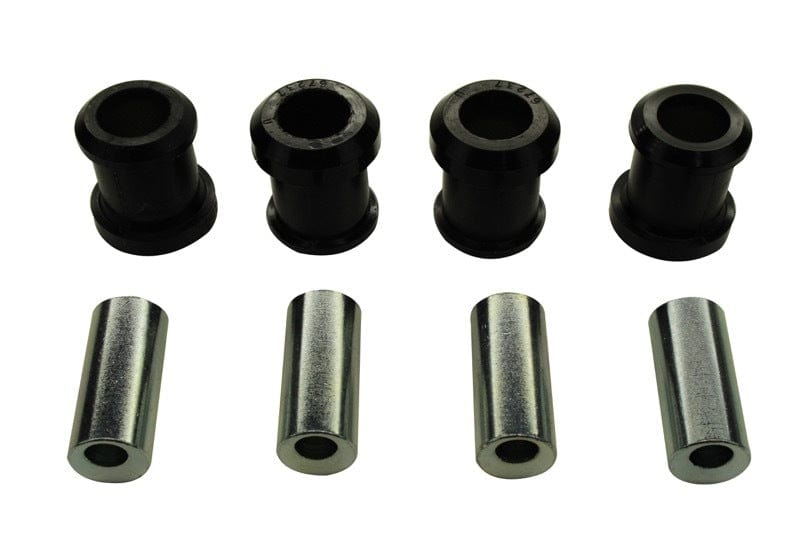

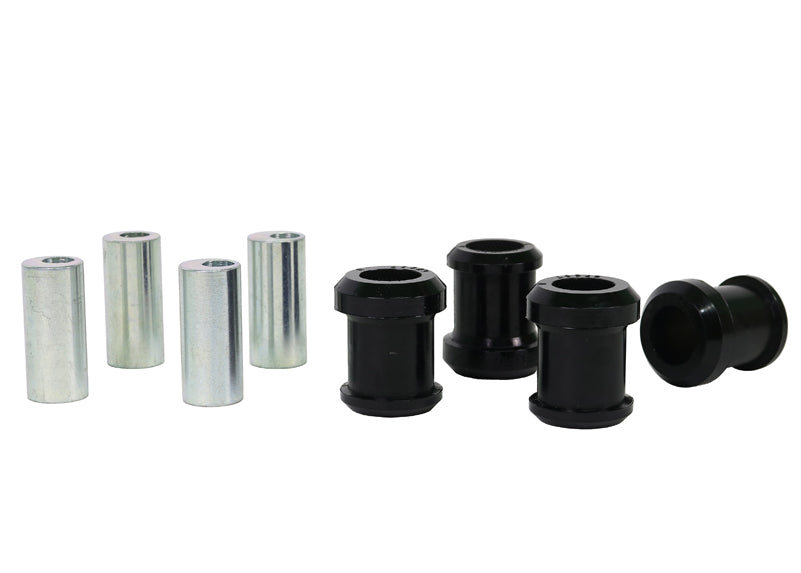

This Whiteline Front Upper Control Arm Bushing Kit fits the 2004-2007 Mazda RX-8 Base (SE3P). Whiteline's note for this fit: Adds 0.5 degrees Camber. The kit contains 4 bushings and 4 tubes. Order it as part number KCA421. Position: front.

Lowering a car or fitting wider tires can push camber out of the range an alignment shop can correct with factory parts. This offset bushing moves the arm's pivot point to give the technician more to work with, while also replacing the soft rubber that was there.

Whiteline rates the install as moderate and lists about 3 hours. Get the car aligned once it is back on the ground. We also list Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit for the RX-8.

Features

  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Material: Polyurethane construction.
  • Camber adjustment: Helps hold the tire flatter on the road by correcting camber changes through roll.
Specifications
Part Number KCA421
Part Name Control Arm Bushing
Vehicle 2004-2007 Mazda RX-8 Base
Chassis Code SE3P
Bushing 1 Inner Diameter 12.5 mm
Bushing 1 Outer Diameter 33.1 mm
Bushing Quantity 4 Bushings
Grade Type Performance
Inside Diameter 10.2 mm
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Outside Diameter 33.1 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds 0.5Degree Camber

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004MazdaRX-8RWDAdds 0.5Degree Camber
2005MazdaRX-8RWDAdds 0.5Degree Camber
2006MazdaRX-8RWDAdds 0.5Degree Camber
2007MazdaRX-8RWDAdds 0.5Degree Camber
