Product Details

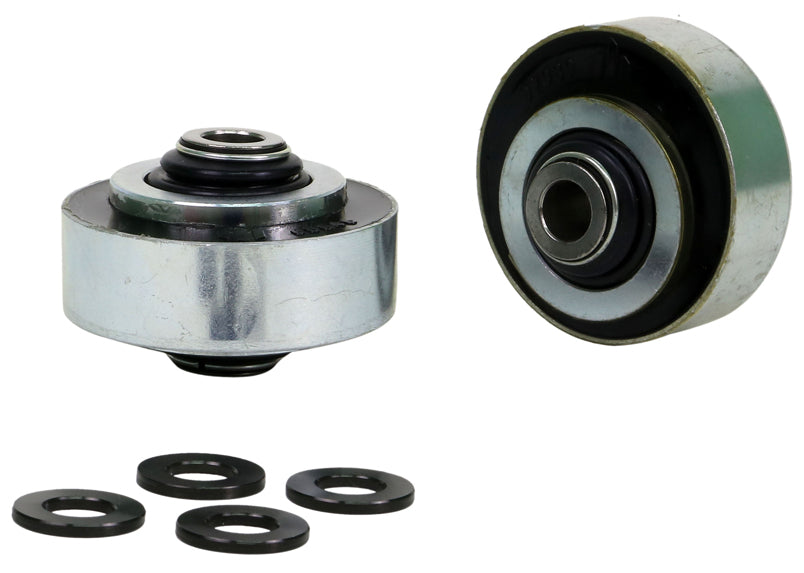

Looking for a front control arm bushing for your 2006 Mitsubishi Lancer Evolution SE (CS)? The Whiteline Front Control Arm Lower Inner Rear Bushing is made for it. Whiteline's note for this fit: Anti-Lift/Caster correction. Inner Rear. You receive 2 shell bushings, 2 bearings, and 4 washers. Position: front. The part number is KCA469. Trim named on the listing: SE.
Caster is the forward or backward lean of the steering axis, and more positive caster generally helps stability and steering return. This control arm bushing is made to add positive caster and alter anti-dive geometry, using a bushing swap rather than a major rebuild.
Whiteline rates the install as difficult and lists about 2.5 hours. An alignment is required after installation. Other Whiteline parts we list for the Lancer Evolution: Front and Rear Sway Bar Kit, Rear Sway Bar Link, and Rear Trailing Arm Lower Front Bushing.
Features
- Material: Built from polyurethane.
- Alignment adjustment: Adds adjustment so the alignment can be optimized.
- Caster: Adds caster for steadier steering and better tire contact in roll.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Bushing material: Polyurethane bushings flex far less than rubber ones.
Specifications
| Part Number | KCA469 |
| Part Name | Control Arm Bushing |
| Vehicle | 2006 Mitsubishi Lancer Evolution SE |
| Drivetrain | AWD |
| Chassis Code | CS |
| Bushing 1 Inner Diameter | 14.2 mm |
| Bushing 1 Length | 90 mm |
| Bushing 1 Outer Diameter | 76.2 mm |
| Bushing 2 Inner Diameter | 14.2 mm |
| Bushing 2 Length | 90 mm |
| Bushing 2 Outer Diameter | 76.2 mm |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushing Quantity | 2 |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 2 Shell Bushings, 2 Bearings, 4 Washers |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Outside Diameter | 76.2 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Anti-Lift/Caster correction; Inner Rear |
