Product Details

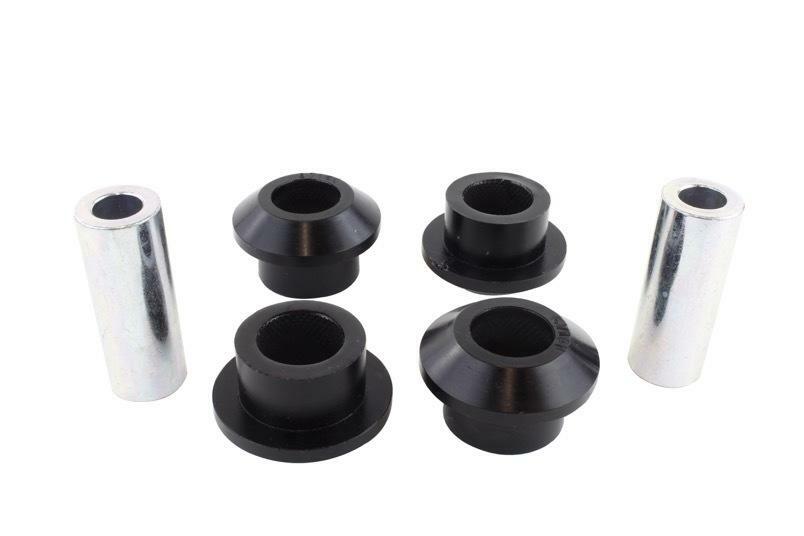

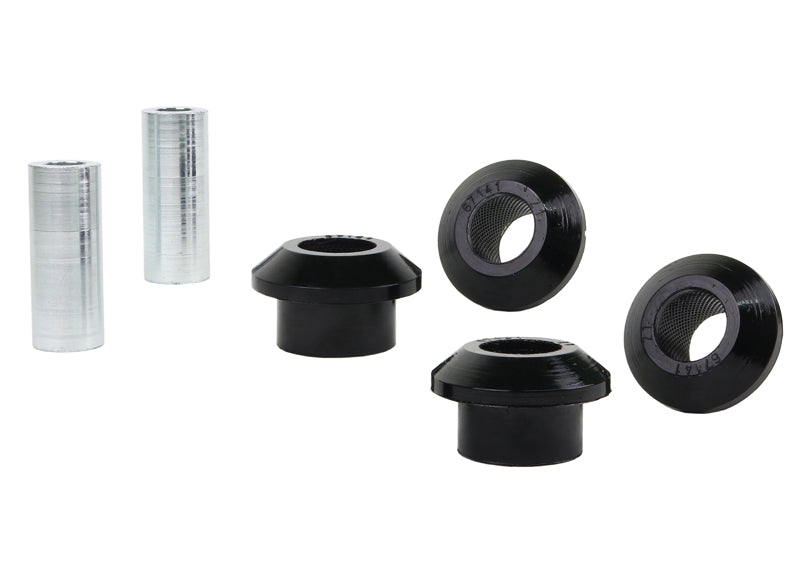

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2013-2019 Ford Escape Titanium (C1XX). Included: 4 bushings and 2 tubes. Position: front. Order it as part number W53286.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Expect a difficult job of about 2.5 hours. An alignment is required after installation. We also list Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link for the Escape.

Features

  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Material: Polyurethane construction.
Specifications
Part Number W53286
Part Name Control Arm Bushing
Vehicle 2013-2019 Ford Escape Titanium
Drivetrain FWD/AWD
Chassis Code C1XX
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 38 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2013FordEscapeFWD
2013FordEscapeAWD
2014FordEscapeFWD
2014FordEscapeAWD
2015FordEscapeFWD
2015FordEscapeAWD
2016FordEscapeFWD
2016FordEscapeAWD
2017FordEscapeFWD
2017FordEscapeAWD
2018FordEscapeFWD
2018FordEscapeAWD
2019FordEscapeFWD
2019FordEscapeAWD
