Product Details

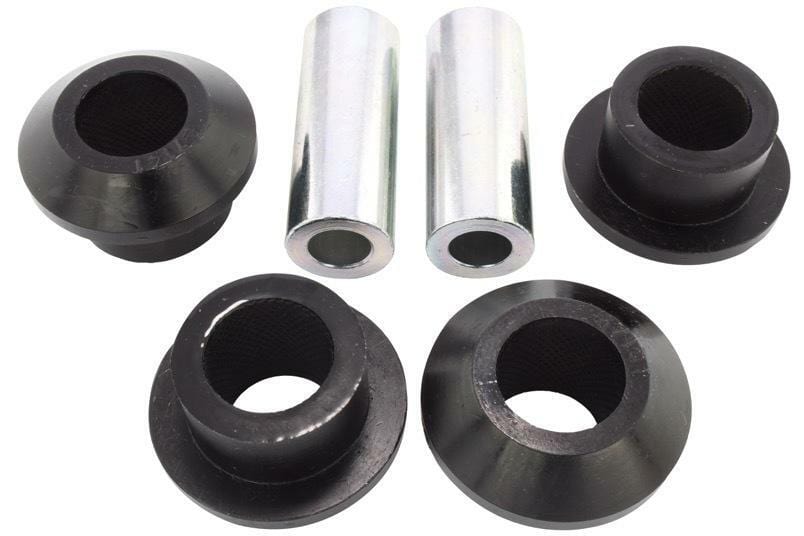

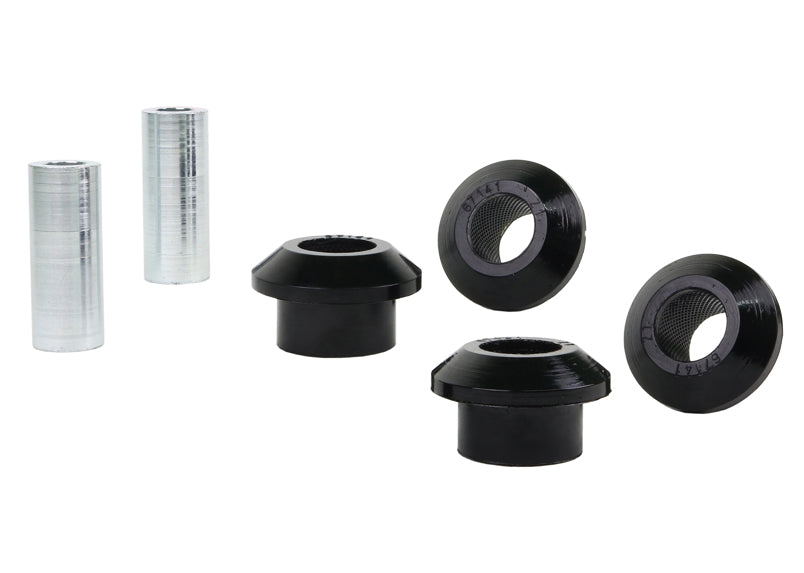

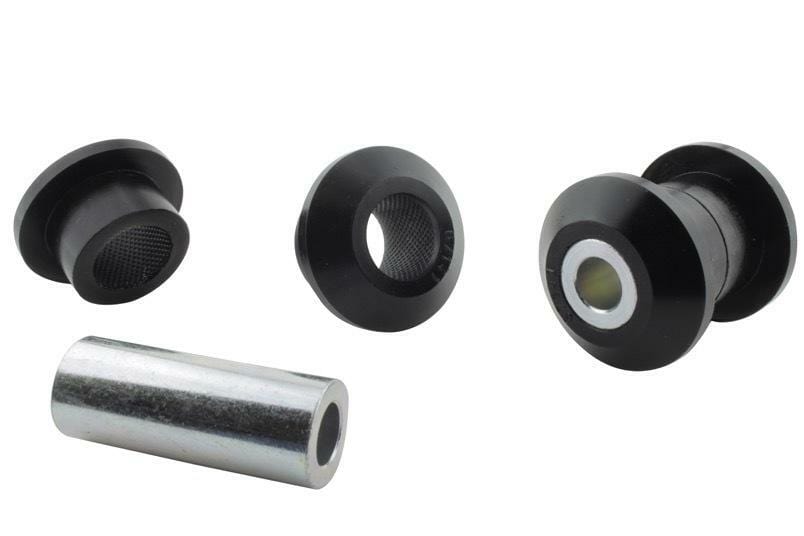

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2013-2019 Ford Escape SE (C1XX). It goes on the front of the vehicle. You receive 4 bushings and 2 tubes. Part number W53286.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.
Expect a difficult job of about 2.5 hours. Get the car aligned once it is back on the ground. To go with it on the Escape, see Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.
Features
- Finish: Powder coating covers the metal for protection against chips and rust.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
- Corrosion protection: The hardware is plated to stand up to road conditions.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Material: The part is made of polyurethane.
Specifications
| Part Number | W53286 |
| Part Name | Control Arm Bushing |
| Vehicle | 2013-2019 Ford Escape SE |
| Drivetrain | FWD/AWD |
| Chassis Code | C1XX |
| Bushing 1 Inner Diameter | 14.3 mm |
| Bushing 1 Outer Diameter | 38 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | - |
