Product Details

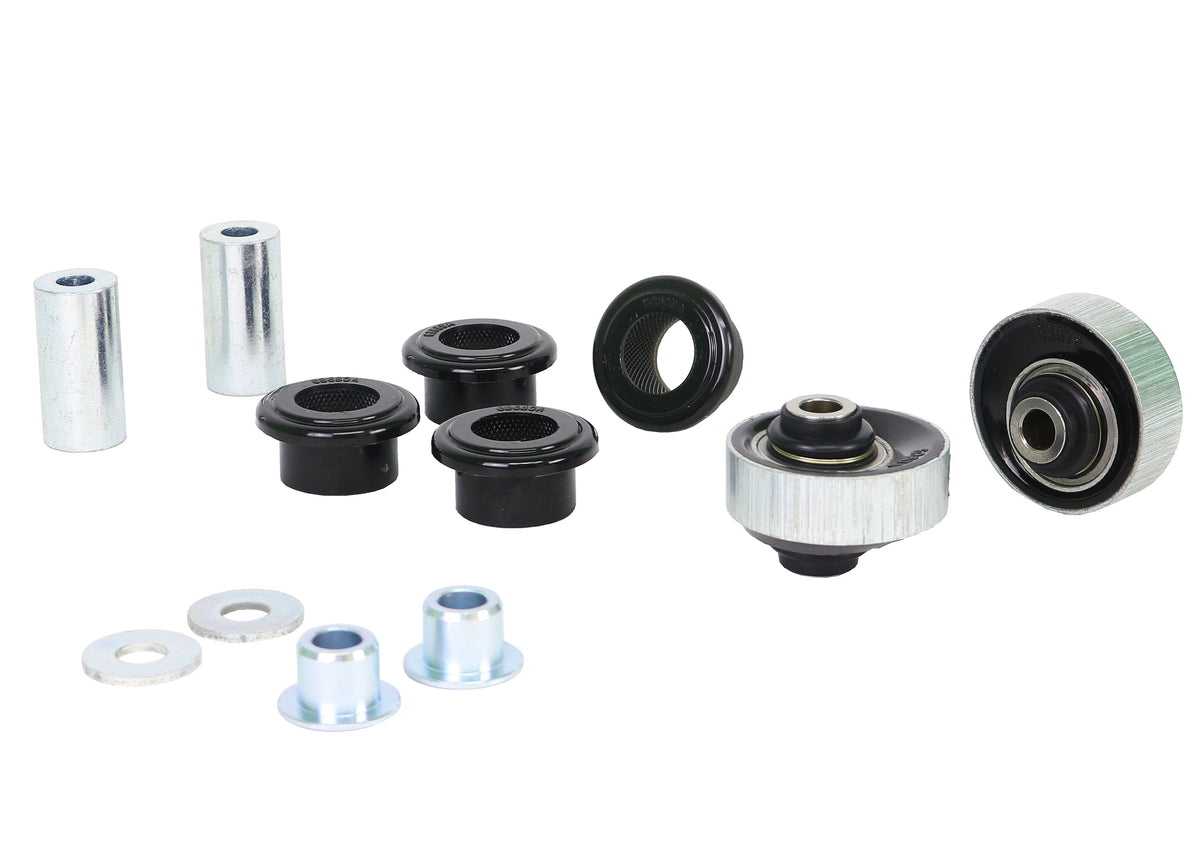

This Whiteline Front Control Arm Geometry Correction Kit fits the 2015-2016 Volkswagen Golf/GTI R, SE, SEL (AU). Included: 2 shell bushings, 4 bushings, 2 tubes, and 4 washers. This part is for the front of the vehicle. The part number is KCA462. Whiteline's note for this fit: Contains Control arm and Bumpsteer bushings: adds .5 degrees Caster Anti-Lift.

This kit does more than replace rubber. Its offset design moves the pivot point of the lower control arm to add positive caster and change how the front end resists dive under braking, which improves straight-line stability and turn-in feel.

Installation is rated difficult, with about 2 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the Golf/GTI, see Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Install guide: Written install instructions are included with the part.
  • Bonded design: The bushing is bonded for strength where loads are highest.
  • Material: Built from polyurethane.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Finish: The metal is powder coated, which resists corrosion and wear.
Specifications
Part Number KCA462
Part Name Control Arm Correction Kit
Vehicle 2015-2016 Volkswagen Golf/GTI R, SE, SEL
Chassis Code AU
Drivetrain FWD
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Length 54 mm
Bushing 1 Outer Diameter 36.8 mm
Bushing 2 Inner Diameter 12.2 mm
Bushing 2 Length 54 mm
Bushing 2 Outer Diameter 64.6 mm
Bushing Quantity 2
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2
Kit Contents 2 Shell Bushings, 4 Bushings, 2 Tubes, 4 Washers
Material Polyurethane
Mounting Hardware Included No
Outside Diameter 36.8 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Contains Control arm and Bumpsteer bushings - adds .5 Degree Caster Anti-Lift

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2015VolkswagenGolfFWDContains Control arm and Bumpsteer bushings - adds .5 Degree Caster Anti-Lift
2015VolkswagenGTIFWDContains Control arm and Bumpsteer bushings - adds .5 Degree Caster Anti-Lift
2016VolkswagenGolfFWDContains Control arm and Bumpsteer bushings - adds .5 Degree Caster Anti-Lift
2016VolkswagenGTIFWDContains Control arm and Bumpsteer bushings - adds .5 Degree Caster Anti-Lift
