Product Details

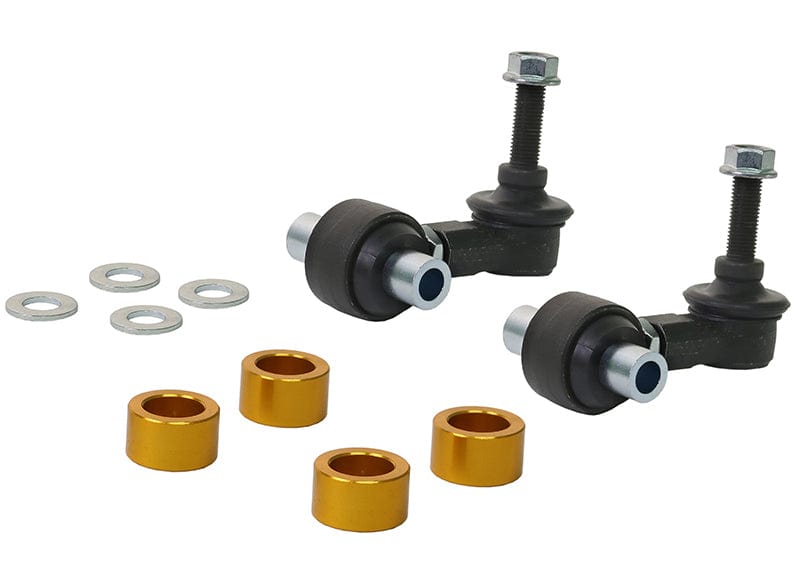

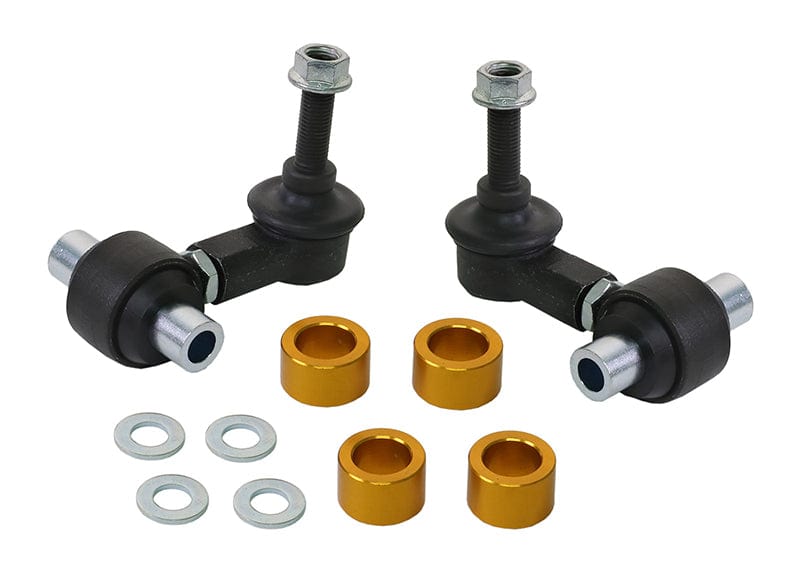

This Whiteline Adjustable Rear Sway Bar Link fits the 2015-2016 Volkswagen Golf/GTI SE, SEL (AU). The part number is KLC202. Position: rear. Whiteline's note for this fit: Adjustable Extra Heavy Duty. The kit contains 2 links, 4 spacers, and 4 washers.

A sway bar link is the short rod that ties each end of the rear sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.

Installation is rated moderate, with about 1 hour of work listed. A wheel alignment is not required. We also list Adjustable Front Sway Bar Link, Front and Rear Sway Bar Kit, and Front Control Arm Lower Inner Front Bushing for the Golf/GTI.

Features

  • Material: The part is made of steel.
  • Pre-greased: Comes pre-greased, so it can go straight on the car.
  • Bushing material: Polyurethane bushings flex far less than rubber ones.
  • Compliance voids: Voids molded into the bushing allow suspension articulation and soften sharp road inputs.
  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
Specifications
Part Number KLC202
Part Name Sway Bar Link
Vehicle 2015-2016 Volkswagen Golf/GTI SE, SEL
Chassis Code AU
Drivetrain FWD
Adjustable Yes
Bolt Thread Diameter 10 mm
Bushing Material Polyurethane
Bushings Included Yes
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links, 4 Spacers, 4 Washers
Length 55-65 mm
Locking Nuts Included Yes
Material Steel
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 55-65mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2015VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 55-65mm. Bolt Diameter 10mm.
2015VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 55-65mm. Bolt Diameter 10mm.
2016VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 55-65mm. Bolt Diameter 10mm.
2016VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 55-65mm. Bolt Diameter 10mm.
