Product Details

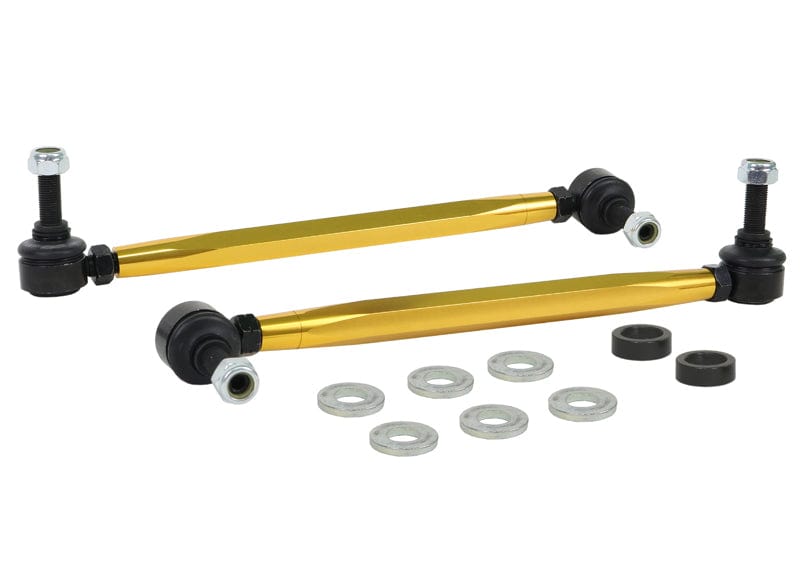

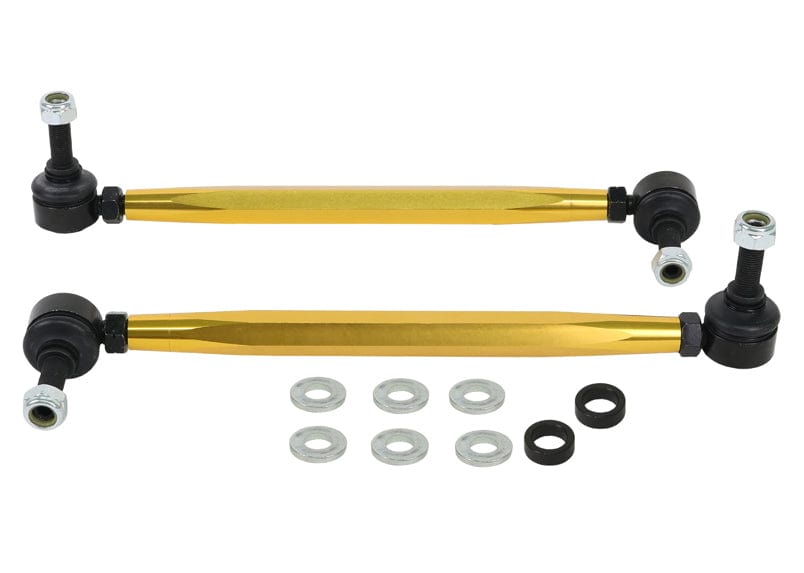

This Whiteline Adjustable Front Sway Bar Link fits the 2010-2021 Volkswagen Golf/GTI Base (5K/AU). Whiteline's note for this fit: Adjustable Extra Heavy Duty. It goes on the front of the vehicle. The kit contains 2 links. Whiteline part number: KLC167A.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Whiteline rates the install as moderate and lists about 1 hour. A wheel alignment is not required. Other Whiteline parts we list for the Golf/GTI: Adjustable Rear Sway Bar Link, Front and Rear Sway Bar Kit, and Front Steering Rack And Pinion Mount Bushing.

Features

  • Hardware: The kit includes locking nuts and washers.
  • Preload-free setup: The length can be set on the car to remove preload from the sway bar.
  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
  • Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
  • Install guide: Instructions for fitting are packed in the box.
  • Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
Specifications
Part Number KLC167A
Part Name Sway Bar Link
Vehicle 2010-2021 Volkswagen Golf/GTI Base
Chassis Code 5K/AU
Drivetrain FWD
Adjustable Yes
Bolt Thread Diameter 12 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 320-345 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2010VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2010VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2011VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2011VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2012VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2012VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2013VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2013VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2014VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2014VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2015VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2015VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2016VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2016VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2017VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2017VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2018VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2018VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2019VolkswagenGolfFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2019VolkswagenGTIFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
