Product Details

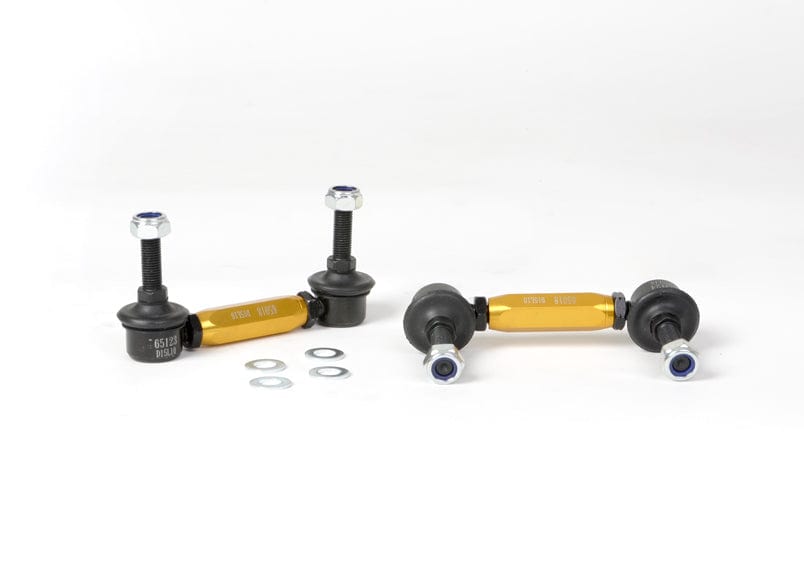

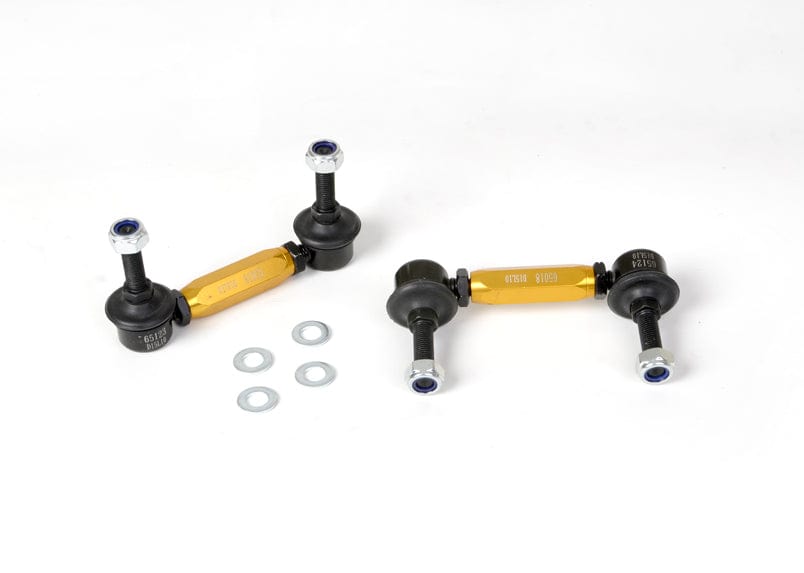

This Whiteline Adjustable Rear Sway Bar Link fits the 2010-2014 Volkswagen Golf/GTI Base (5K). Position: rear. The part number is KLC141. You receive 2 links. Application note: Suits models with control arm link mount: adjustable extra heavy duty.

The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Whiteline rates the install as easy and lists about 1 hour. A wheel alignment is not required. We also list Adjustable Front Sway Bar Link, Front and Rear Sway Bar Kit, and Front Steering Rack And Pinion Mount Bushing for the Golf/GTI.

Features

  • Preload-free setup: The length can be set on the car to remove preload from the sway bar.
  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
  • Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
  • Hardware: Hardware supplied: locking nuts and washers.
  • Install guide: Instructions for fitting are packed in the box.
  • Material: Steel construction.
Specifications
Part Number KLC141
Part Name Sway Bar Link
Vehicle 2010-2014 Volkswagen Golf/GTI Base
Chassis Code 5K
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 2 Links
Length 115-140 mm
Locking Nuts Included Yes
Material Steel
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Suits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
2010VolkswagenGolfSuits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm
2010VolkswagenGTISuits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm
2011VolkswagenGolfSuits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm
2011VolkswagenGTISuits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm
2012VolkswagenGolfSuits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm
2012VolkswagenGTISuits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm
2013VolkswagenGolfSuits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm
2013VolkswagenGTISuits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm
2014VolkswagenGolfSuits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm
2014VolkswagenGTISuits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm
