Product Details

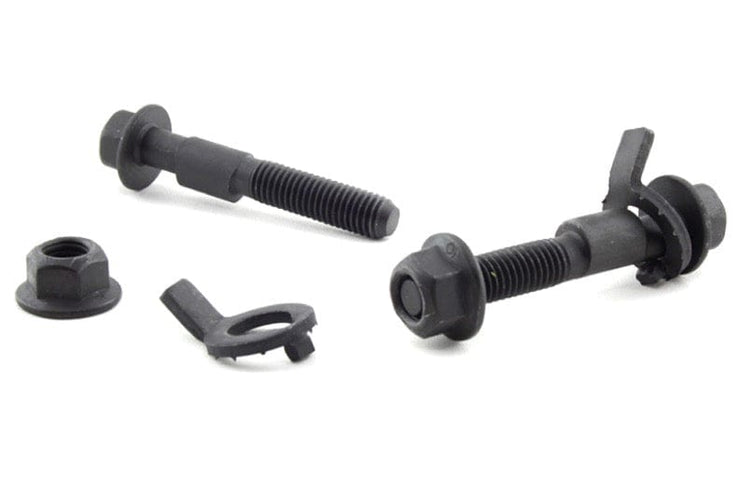

Made to fit the 1990-2001 Suzuki Swift GL (EA/MA), the 12mm Adjustable Front Camber Bolts from Whiteline. Application note: Adds +/- 0.75 degrees Camber. Included: 2 bolts. Placement: front. The listing names the GL trim. Part number KCA412.
Alignment problems often come down to one angle the factory settings cannot reach. After a car is lowered, fitted with different wheels, or simply gets older, camber can drift outside the range a shop is able to correct. These bolts swap in for the originals and give the technician the extra movement needed.
Expect a difficult job of about 1 hour. Get the car aligned once it is back on the ground. To go with it on the Swift, see Front Sway Bar Link Lower Bushing, Rear Control Arm Lower Outer Bushing, and Front Lower Inner Front Control Arm Bushing Kit.
Features
- Install guide: Instructions for fitting are packed in the box.
- Corrosion protection: The hardware is plated to stand up to road conditions.
- Camber adjustment: Aims to keep camber in an effective range as the body rolls.
- Hardware: Nuts are supplied with the bolts.
- Locking washer: The teeth on the lock washer keep the bolt from turning once it is tightened.
Specifications
| Part Number | KCA412 |
| Part Name | Camber Bolt |
| Vehicle | 1990-2001 Suzuki Swift GL |
| Chassis Code | EA/MA |
| Drivetrain | FWD |
| Adjustable | Yes |
| Bolt Thread Diameter | 12 mm |
| Color | Gray |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Bolts |
| Nut Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds +/- 0.75 Degree Camber |
